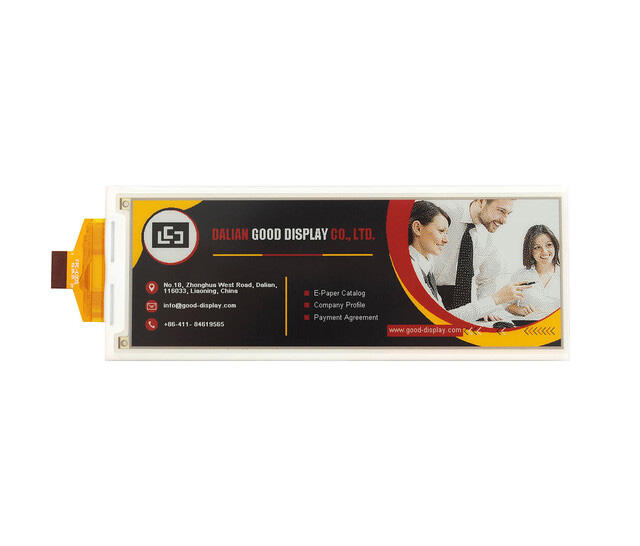

GDEY0579F51 5.79 inch e-paper display E-ink module 4-color black white yellow red high-resolution

Name: GDEY0579F51 5.79 inch e-paper display E-ink module 4-color black white yellow red high-resolution
Brand: MicroHello
SKU: GDEY0579F51-001
Price: 27.9 USD
Availability: InStock

SKU: GDEY0579F51-001

0.0 (0)

0 Sold

$27.90 ~~$19.90~~

The 5.79-inch 4-color E Ink display is the perfect balance of affordability and quality. With SPI interface and vibrant color options, it’s ideal for creating standout visuals while saving on costs. Highly recommended for all your display needs!

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

E-ink module 5.79-inch four-color e-paper module long strip high-resolution SPI

E Ink Display's Basic function

Refresh method: Full update for 26s (tested at 25°C ambient temperature)
Display orientation: Horizontal or vertical

E Ink Display's Basic parameters

Product size: 5.79 inch
Resolution:792x272
PPI: 144.63
Color: Black, White, Red, Yellow
Driver IC: HX8717*2
Interface: SPI
Power Consumption(mW): 41.4
Operating temperature: 0-40 ℃
Pixel Pitch(mm): 0.1755×0.1755
Time of refresh(s)：26
Optional customized: cover plate and shell

E Ink Display's Main features

Display feature: Bistable display (retains the current content after a power outage)
Display mode: Pure reflection
Viewing angle: Wide viewing angle exceeding 170 degrees
Surface Treatment: Hard-coated for anti-glare effects
Energy conservation: No power consumption when not refreshing the screen
Eye Protection: No blue light emission, zero radiation

Applications

PARAMETERS

PART NUMBER	GDEY0579F51
SIZE	5.79 inch
TYPE	Dot Matrix
IC	HX8717*2
RESOLUTION	792*272
PPI	144.63
OUTLINE SIZE(mm)	150.92x56.94x1.0
ACTIVE SIZE(mm)	139.00×47.74
PIXEL PITCH(mm)	0.1755×0.1755
OPERATING TEMP.	0℃~40℃
STORAGE TEMP.	-25℃~70℃
CONNECTOR	24 Pin
MAX GRAYSCALE	2
COLOR	Black, White, Yellow and Red
INTERFACE	SPI
FULL UPDATE TIME(s)	26
Power Consumption(mW)	41.4
Standby Power Consumption(mW)	0.003

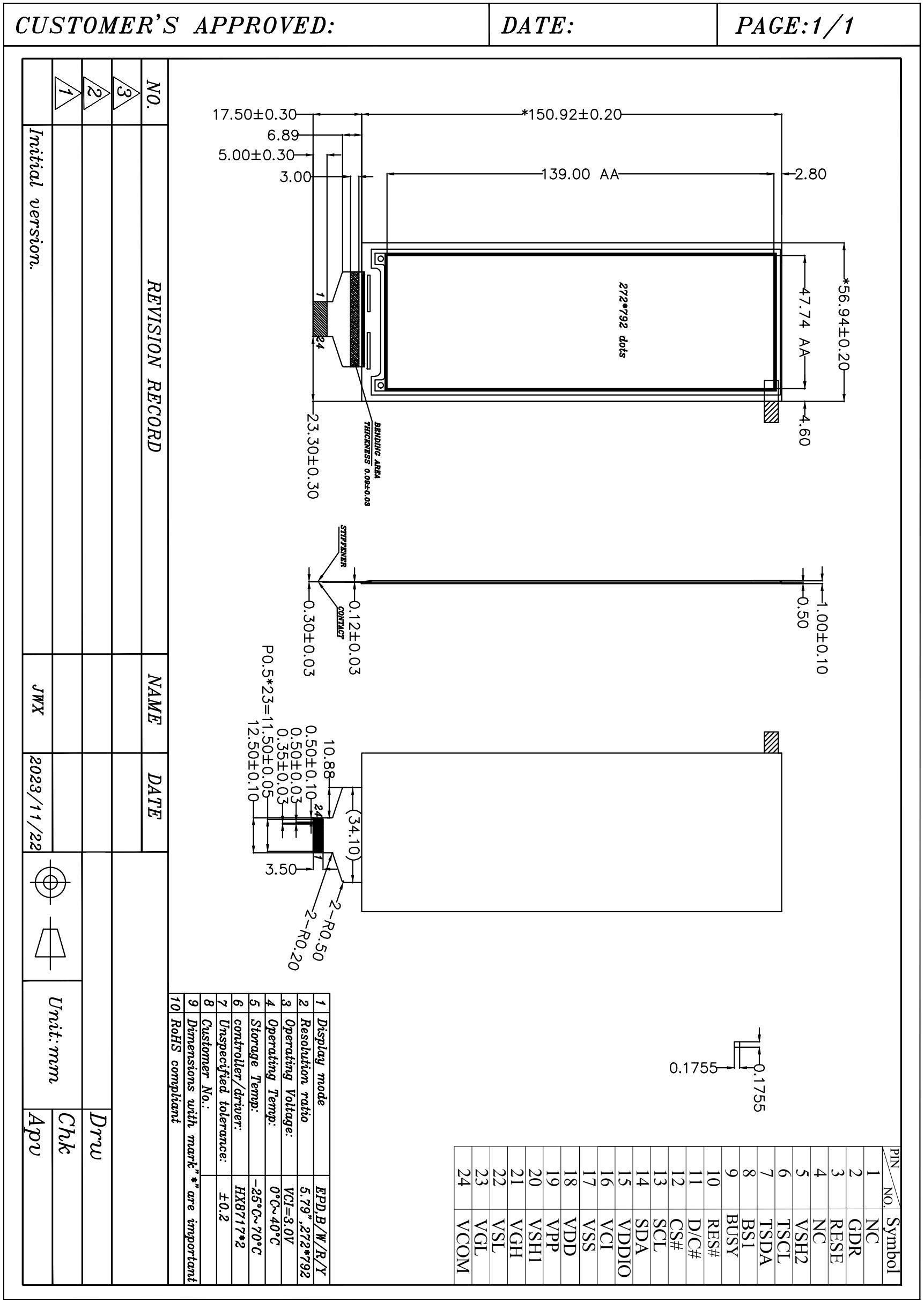

DRAWING

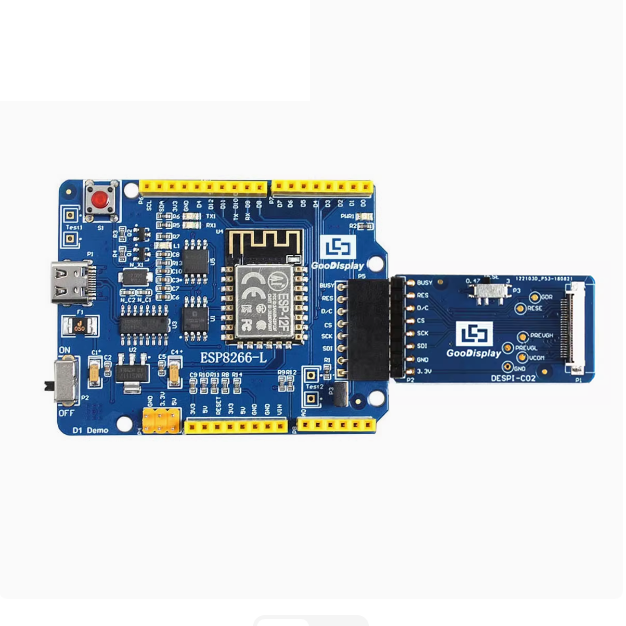

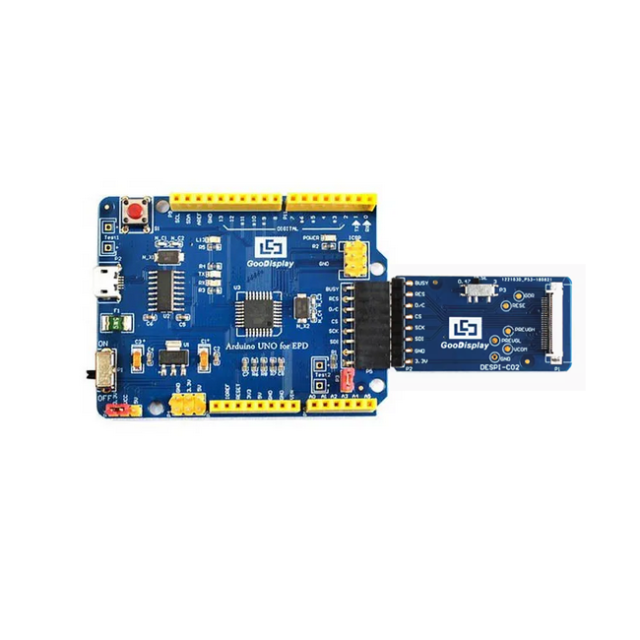

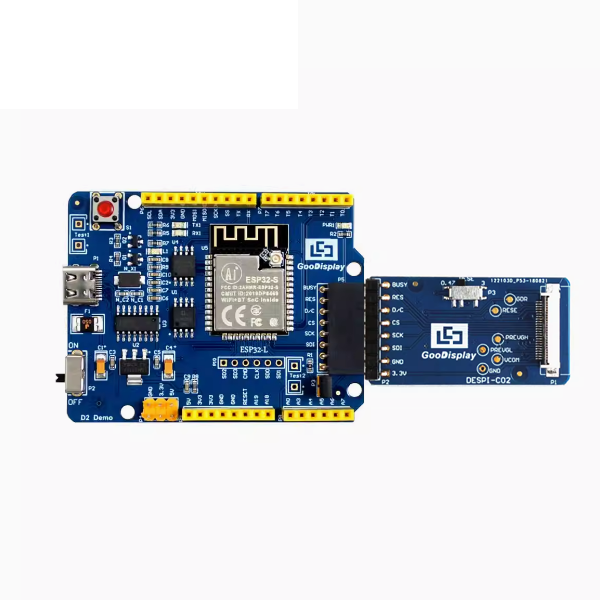

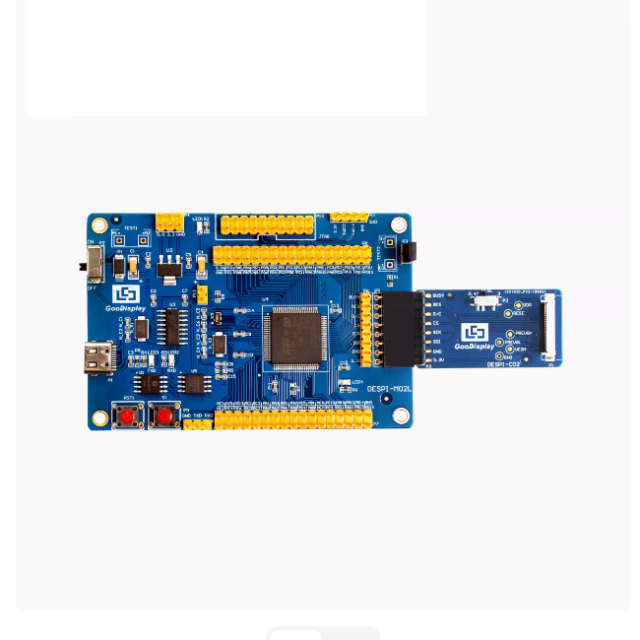

DEVELOPMENT PLATFORM AVAILABEL

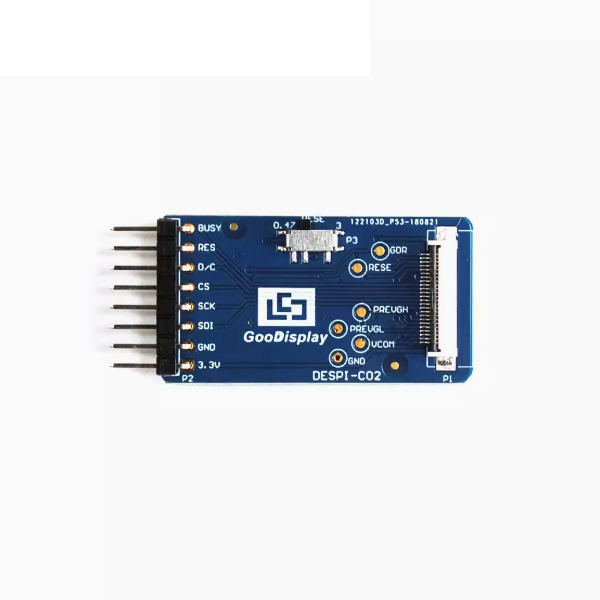

We have this e-paper screen Adapter Board that makes connecting our ePaper simple and fast.

☆ SPECIFICATION DOWNLOAD

The CD data includes:

1)GDEY0579F51_Specification
2)Image2LCD Software Bitmap Conversion Instructions V1.1
3)GDEY0579F51 ESP32 Sample Code
4)GDEY0579F51 STM32 Sample Code
5)GDEY0579F51 ESP8266 Sample Code

☆ Selection Guide

SIZE	PART NUMBER	COLOR	IC	RESOLUTION	ACTIVE SIZE(mm)	FULL REFRESH TIME (S)	PARTIAL UPDATE TIME(s)	FAST UPDATE TIME(s)	PARTIAL REFRESH	OPERATING TEMP.	INTERFACE
0.97''	GDEM0097T61	black, white	SSD1680	184x88	22.26x10.65	2	0.3		√	0℃~50℃	SPI
0.97''	GDEM0097F51	black, white,yellow,red	JD79661	184x88	22.26x10.65	16		12	√	0℃~40℃	SPI
1.54''	GDEY0154D67	black, white	SSD1681	200x200	27x27	2	0.3		√	0℃~50℃	SPI
1.54''	GDEM0154F51H	black, white,yellow,red	JD79660	200x200	27x27	20		12	√	0℃~40℃,SPI	SPI
2.13''	GDEY0213B74	black, white	SSD1680Z	250x122	48.55x23.7046	3	0.42		√	0℃~50℃	SPI
2.13''	GDEY0213F52	black, white,yellow,red	JD79676A	250x122	48.55x23.7046	16		11	√	0℃~40℃	SPI
2.66''	GDEY0266T90H	black, white	SSD1685	184x360	60.05x30.69	2	0.3		√	0℃~50℃	SPI
2.66''	GDEY0266F51	black, white,yellow,red	JD79661	184x360	60.05x30.69	25		14	√	0℃~40℃	SPI
2.7''	GDEY027T91	black, white	SSD1680	264x176	57.29x38.19	3	0.3		√	0℃~50℃	SPI
2.9''	GDEY029T94	black, white	SSD1680	296x128	66.896x29.056	3	0.3		√	0℃~50℃	SPI
2.9''	GDEY029F51H	black, white,yellow,red	JD79667	384x168	67.58x29.57	20		12	√	0℃~40℃	SPI
3.1''	GDEQ031T10	black, white	UC8253	320x240	62.72x47.04	3	0.5		√	0℃~50℃	SPI
3.5''	GDEM035T81	black, white	SSD1685	384x184	79.68x38.18	2	0.3		√	0℃~50℃	SPI
3.5''	GDEM035F51	black, white,yellow,red	JD79667AA	384x184	79.68x38.18	18		12	√	0℃~40℃	SPI
3.7''	GDEY037T03	black, white	UC8253	416x240	81.54x47.04	3	0.2		√	0℃~50℃	SPI
3.7''	GDEM037F51	black, white,yellow,red	IST7163	416x240	81.54x47.04	20		12	√	0℃~40℃	SPI
3.97''	GDEM0397T81P	black, white	SSD1677	800x480	86.40x51.84	3	0.3		√	0℃~50℃	SPI
3.97''	GDEM0397F81	black, white,yellow,red	SSD2677	800x480	86.40x51.84	21		12	√	0℃~40℃	SPI
4.2''	GDEY042T81	black, white	SSD1683	400x300	84.8x63.6	3	0.2		√	0℃~50℃	SPI
4.2''	GDEM042F52	black, white,yellow,red	JD79668	400x300	84.8x63.6	20		12	√	0℃~40℃	SPI
4.26''	GDEQ0426T82	black, white	SSD1677	800*480	92.8x55.68	3	0.42		√	0℃~50℃	SPI
5.79''	GDEY0579T93	black, white	SSD1683	792x272	139.00×47.74	3	0.3		√	0℃~50℃	SPI
5.79''	GDEY0579F51	black, white,yellow,red	HX8717*2	792*272	139.00×47.74	26		13	√	0℃~40℃	SPI
5.83''	GDEY0583T81	black, white	UC8179	648x480	118.78x88.22	3	0.3		√	0℃~50℃	SPI
7.5''	GDEY075T7	black, white	UC8179	800x480	163.2x97.72	3	0.3		√	0℃~50℃	SPI
7.5''	GDEM075F52	black, white,yellow,red	JD79665AA	800x480	163.2x97.92	22		12	√	0℃~40℃	SPI
10.2''	GDEM102T91	black, white	SSD1677	960x640	215.52x143.68	4	0.42		√	0℃~50℃	SPI
10.2''	GDEM102F91	black, white,yellow,red	SSD2677	960x640	215.52x143.68	20		12	√	0℃~40℃	SPI
10.85''	GDEM1085T51	black, white	JD79686AB	1360x480	259.76×91.68	4	0.4		√	0℃~50℃	SPI
10.85''	GDEM1085F51	black, white,yellow,red	JD79665AA	1360x480	259.76×91.68	20		12	√	0℃~40℃	SPI
11.6''	GDEY116T91	black, white	SSD1677	960x640	244.51x163.01	5	0.5		√	0℃~50℃	SPI
11.6''	GDEY116F51	black, white,yellow,red	SSD2677	960x640	244.51×163.01	20		16	√	0℃~40℃	SPI
13.3''	GDEM133T91	black, white	SSD1677	960x680	275.52x195.16	4	0.4		√	0℃~50℃	SPI
