GDEM0154F51H 1.54 Inch E-Paper Four Color Black White Yellow Red Eink High Resolution 200x200 Fast Update 12s

Name: GDEM0154F51H 1.54 Inch E-Paper Four Color Black White Yellow Red Eink High Resolution 200x200 Fast Update 12s
Brand: MicroHello
SKU: GDEM0154F51H-001
Price: 7.2 USD
Availability: InStock

SKU: GDEM0154F51H-001

0.0 (0)

2 Sold

$7.20 ~~$18.90~~

E INK redefines displays: energy-saving, ultra-clear, and designed for smarter living. Perfect for modern businesses and homes, it's the future of sustainable, innovative technology. Upgrade to E INK today!

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

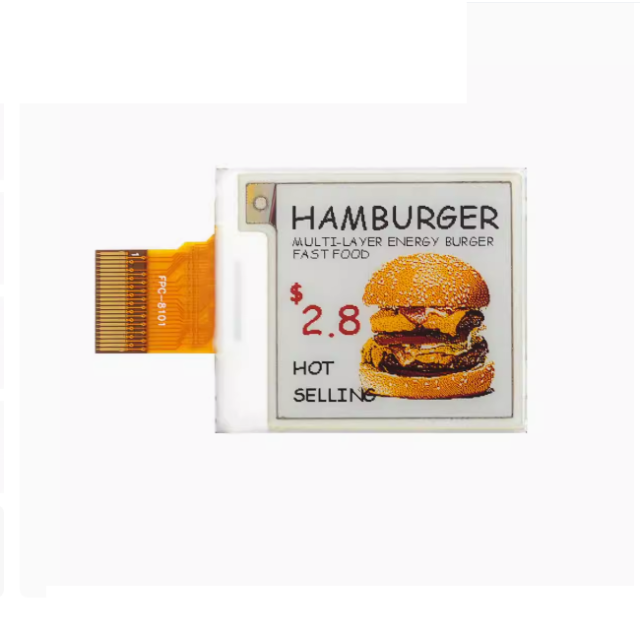

Low power display 1.54 inch E-paper four color Eink high resolution 200x200

ePaper Display's Basic function

Refresh Method: Full refresh for 20s，Fast refresh for 12s (tested at 25°C ambient temperature)
Display direction: Horizontal or vertical

ePaper Display's Basic parameters

Product size: 1.54 inch
Resolution: 200x200
PPI: 183.66
Color: Black, White, Yellow and Red
Driver IC: JD79660
Interface: SPI
Operating temperature: 0-40 ℃
Optional customized: NFC driver board | NFC Tag

ePaper Display's Main features

Display feature: Bistable display (retains the current content after a power outage)
Display mode: Pure reflection
Viewing angle: Wide viewing angle exceeding 170 degrees
Surface Treatment: Hard-coated for anti-glare effects
Energy conservation: No power consumption when not refreshing the screen
Eye Protection: No blue light emission, zero radiation

PARAMETERS

PART NUMBER	GDEM0154F51H
SIZE	1.54 inch
TYPE	Dot Matrix
IC	JD79660
RESOLUTION	200x200
PPI	183.66
OUTLINE SIZE(mm)	37.32x31.8x1.0
ACTIVE SIZE(mm)	27.00x27.00
PIXEL PITCH(mm)	0.135x0.135
OPERATING TEMP.	0℃~40℃
STORAGE TEMP.	-25℃~70℃
CONNECTOR	24 PIN 0.5mm
MAX GRAYSCALE	2
COLOR	Black, White, Yellow and Red
INTERFACE	SPI
FULL UPDATE TIME(s)	20
FAST REFRESH TIME(s)	12
TYPICAL POWER(mW)	9
DEEP SLEEP POWER(mW)	0.0012

DEVELOPMENT PLATFORM AVAILABEL

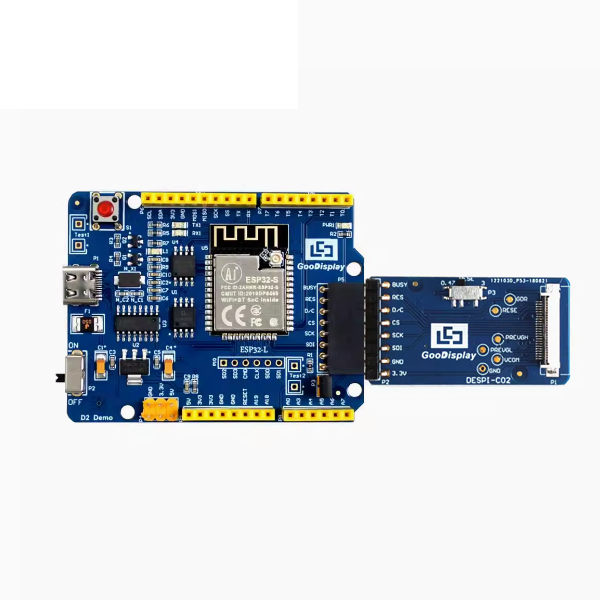

We have this e-paper screen Adapter Board that makes connecting our ePaper simple and fast.

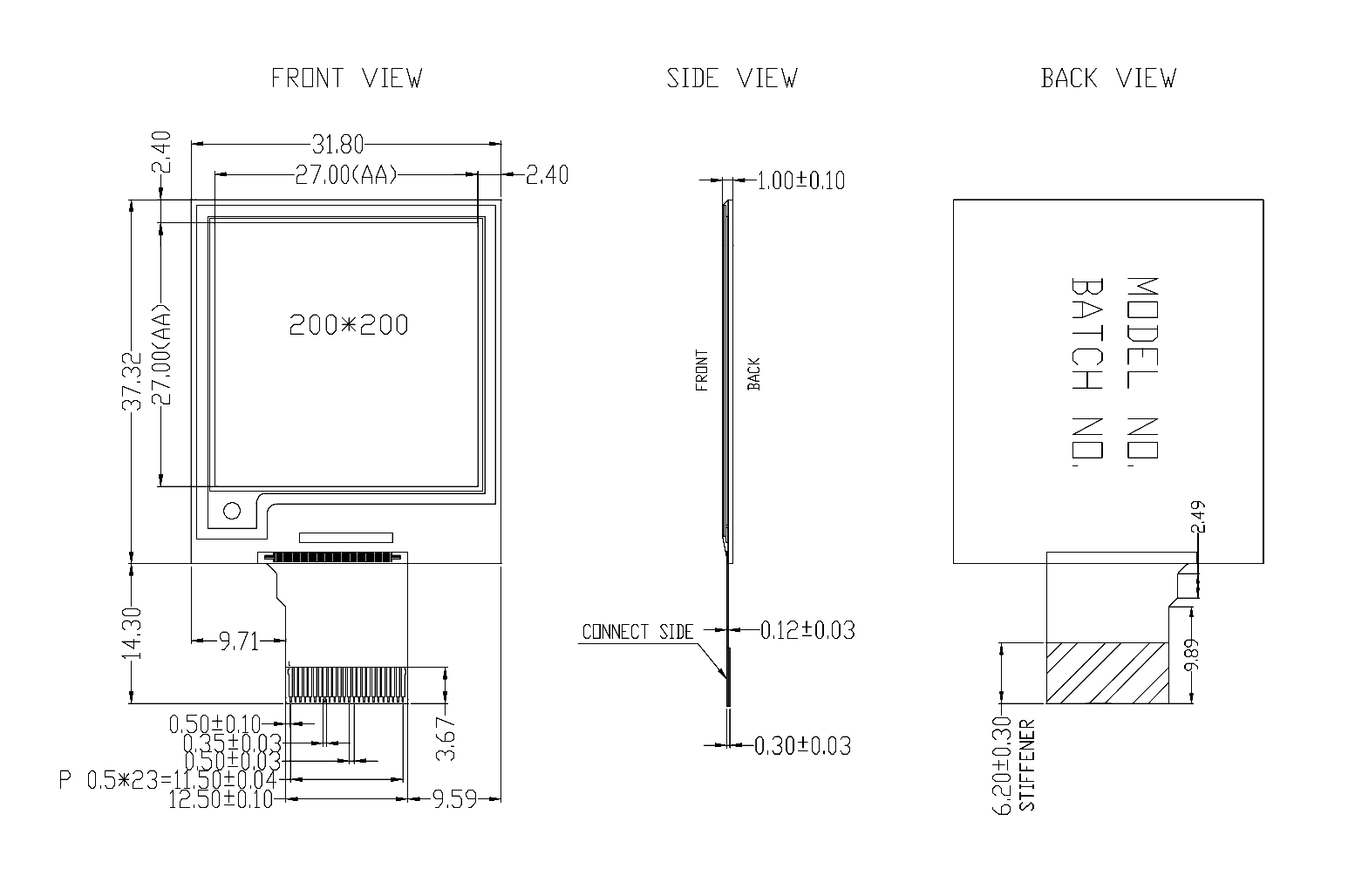

☆ Drawing

☆ SPECIFICATION DOWNLOAD

The CD data includes:

1)GDEM0154F51H_Specification（25.1.8）
2)JD79660A Driver IC Datasheet
3)Image2LCD Software Bitmap Conversion Instructions V1.0 new
4)GDEM0154F51H STM32 Sample Code（25.01.06）
5)GDEM0154F51H ESP8266 Sample Code（25.01.06）
6)GDEM0154F51H Arduino Sample Code（25.01.06）
7)GDEM0154F51H ESP32 Sample Code（25.01.06）

☆ Selection Guide

SIZE	PART NUMBER	COLOR	IC	RESOLUTION	ACTIVE SIZE(mm)	FULL REFRESH TIME (S)	PARTIAL UPDATE TIME(s)	FAST UPDATE TIME(s)	PARTIAL REFRESH	OPERATING TEMP.	INTERFACE
0.97''	GDEM0097T61	black, white	SSD1680	184x88	22.26x10.65	2	0.3		√	0℃~50℃	SPI
0.97''	GDEM0097F51	black, white,yellow,red	JD79661	184x88	22.26x10.65	16		12	√	0℃~40℃	SPI
1.54''	GDEY0154D67	black, white	SSD1681	200x200	27x27	2	0.3		√	0℃~50℃	SPI
1.54''	GDEM0154F51H	black, white,yellow,red	JD79660	200x200	27x27	20		12	√	0℃~40℃,SPI	SPI
2.13''	GDEY0213B74	black, white	SSD1680Z	250x122	48.55x23.7046	3	0.42		√	0℃~50℃	SPI
2.13''	GDEY0213F52	black, white,yellow,red	JD79676A	250x122	48.55x23.7046	16		11	√	0℃~40℃	SPI
2.66''	GDEY0266T90H	black, white	SSD1685	184x360	60.05x30.69	2	0.3		√	0℃~50℃	SPI
2.66''	GDEY0266F51	black, white,yellow,red	JD79661	184x360	60.05x30.69	25		14	√	0℃~40℃	SPI
2.7''	GDEY027T91	black, white	SSD1680	264x176	57.29x38.19	3	0.3		√	0℃~50℃	SPI
2.9''	GDEY029T94	black, white	SSD1680	296x128	66.896x29.056	3	0.3		√	0℃~50℃	SPI
2.9''	GDEY029F51H	black, white,yellow,red	JD79667	384x168	67.58x29.57	20		12	√	0℃~40℃	SPI
3.1''	GDEQ031T10	black, white	UC8253	320x240	62.72x47.04	3	0.5		√	0℃~50℃	SPI
3.5''	GDEM035T81	black, white	SSD1685	384x184	79.68x38.18	2	0.3		√	0℃~50℃	SPI
3.5''	GDEM035F51	black, white,yellow,red	JD79667AA	384x184	79.68x38.18	18		12	√	0℃~40℃	SPI
3.7''	GDEY037T03	black, white	UC8253	416x240	81.54x47.04	3	0.2		√	0℃~50℃	SPI
3.7''	GDEM037F51	black, white,yellow,red	IST7163	416x240	81.54x47.04	20		12	√	0℃~40℃	SPI
3.97''	GDEM0397T81P	black, white	SSD1677	800x480	86.40x51.84	3	0.3		√	0℃~50℃	SPI
3.97''	GDEM0397F81	black, white,yellow,red	SSD2677	800x480	86.40x51.84	21		12	√	0℃~40℃	SPI
4.2''	GDEY042T81	black, white	SSD1683	400x300	84.8x63.6	3	0.2		√	0℃~50℃	SPI
4.2''	GDEM042F52	black, white,yellow,red	JD79668	400x300	84.8x63.6	20		12	√	0℃~40℃	SPI
4.26''	GDEQ0426T82	black, white	SSD1677	800*480	92.8x55.68	3	0.42		√	0℃~50℃	SPI
5.79''	GDEY0579T93	black, white	SSD1683	792x272	139.00×47.74	3	0.3		√	0℃~50℃	SPI
5.79''	GDEY0579F51	black, white,yellow,red	HX8717*2	792*272	139.00×47.74	26		13	√	0℃~40℃	SPI
5.83''	GDEY0583T81	black, white	UC8179	648x480	118.78x88.22	3	0.3		√	0℃~50℃	SPI
7.5''	GDEY075T7	black, white	UC8179	800x480	163.2x97.72	3	0.3		√	0℃~50℃	SPI
7.5''	GDEM075F52	black, white,yellow,red	JD79665AA	800x480	163.2x97.92	22		12	√	0℃~40℃	SPI
10.2''	GDEM102T91	black, white	SSD1677	960x640	215.52x143.68	4	0.42		√	0℃~50℃	SPI
10.2''	GDEM102F91	black, white,yellow,red	SSD2677	960x640	215.52x143.68	20		12	√	0℃~40℃	SPI
10.85''	GDEM1085T51	black, white	JD79686AB	1360x480	259.76×91.68	4	0.4		√	0℃~50℃	SPI
10.85''	GDEM1085F51	black, white,yellow,red	JD79665AA	1360x480	259.76×91.68	20		12	√	0℃~40℃	SPI
11.6''	GDEY116T91	black, white	SSD1677	960x640	244.51x163.01	5	0.5		√	0℃~50℃	SPI
11.6''	GDEY116F51	black, white,yellow,red	SSD2677	960x640	244.51×163.01	20		16	√	0℃~40℃	SPI
13.3''	GDEM133T91	black, white	SSD1677	960x680	275.52x195.16	4	0.4		√	0℃~50℃	SPI
