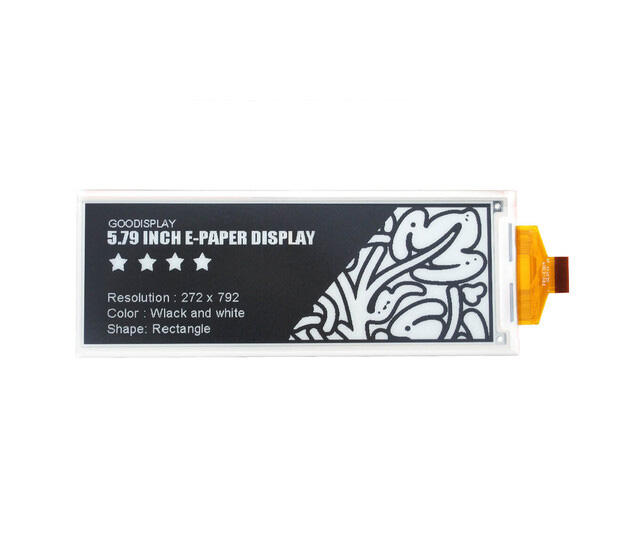

5.79 inch e-ink display 792x272 SPI Monochrome EPD
ePaper Display's Basic function
- Refresh Method: Full refresh for 3s,Fast refresh for 1.5s,Partial refresh for 0.3s (tested at 25°C ambient temperature)
- Display direction: Horizontal or vertical
ePaper Display's Basic parameters
- Product size: 5.79 inch
- Resolution:792x272
- PPI: 144.63
- Color: Black and White
- Driver IC: SSD1683
- Interface: SPI
- Operating voltage: 3.3V
- Operating temperature: 0-50 ℃
| |
E Ink Product Feature
|
|
| |
● Wide Viewing Angle: Enjoy crystal-clear visibility from over 170 degrees, ensuring clarity from any viewing angle.
● Energy-Efficient: Save power with zero energy consumption when not refreshing, contributing to sustainable energy practices.
● Eye Protection: Safeguard your eyes with no blue light and zero radiation emissions.
● Pure Reflective Display: Opt for pure reflective mode without backlighting, ideal for diverse lighting conditions.
● Durable Anti-Glare Coating: Enhance display quality with a robust anti-glare coating, ensuring optimal visibility in any environment.
|
Applications
PARAMETERS
|
PART NUMBER
|
GDEY0579T93 |
|
SIZE
|
5.79 inch
|
|
TYPE
|
Dot Matrix
|
|
IC
|
SSD1683
|
|
RESOLUTION
|
792x272 |
| PPI |
144.63 |
|
OUTLINE SIZE(mm)
|
150.92x56.94x1.0 |
|
ACTIVE SIZE(mm)
|
139.00×47.74 |
|
PIXEL PITCH(mm)
|
0.1755×0.1755 |
|
OPERATING TEMP.
|
0℃~50℃
|
|
STORAGE TEMP.
|
-25℃~70℃
|
|
CONNECTOR
|
24 Pin FPC, Pitch:0.5mm |
|
COLOR
|
Black,White
|
|
INTERFACE
|
SPI
|
| MAX GRAYSCALE |
4 |
|
FULL REFRESH(s)
|
3
|
| PARTIAL REFRESH TIME(s) |
0.3 |
| FAST REFRESH TIME(s) |
1.5 |
|
POWER CONSUMPTION OF THE REFRESH(mW)
|
21
|
|
STANDBY POWER CONSUMPTION (mW)
|
0.0165
|
Explanation of the refresh process (Refresh time: the entire period from when the screen first reacts until the image stabilizes):
1. Full Refresh: During the refresh process, the screen may flicker multiple times.
2. Fast Refresh: The screen flickers once during the refresh process.
3. Partial Refresh: The screen does not flicker during the refresh process.
Note: When using Fast Refresh and Partial Refresh, it is recommended to perform a Full-Screen Refresh after every five consecutive operations. This helps reduce the accumulation of screen ghosting.
If you need grayscale code, please contact us.

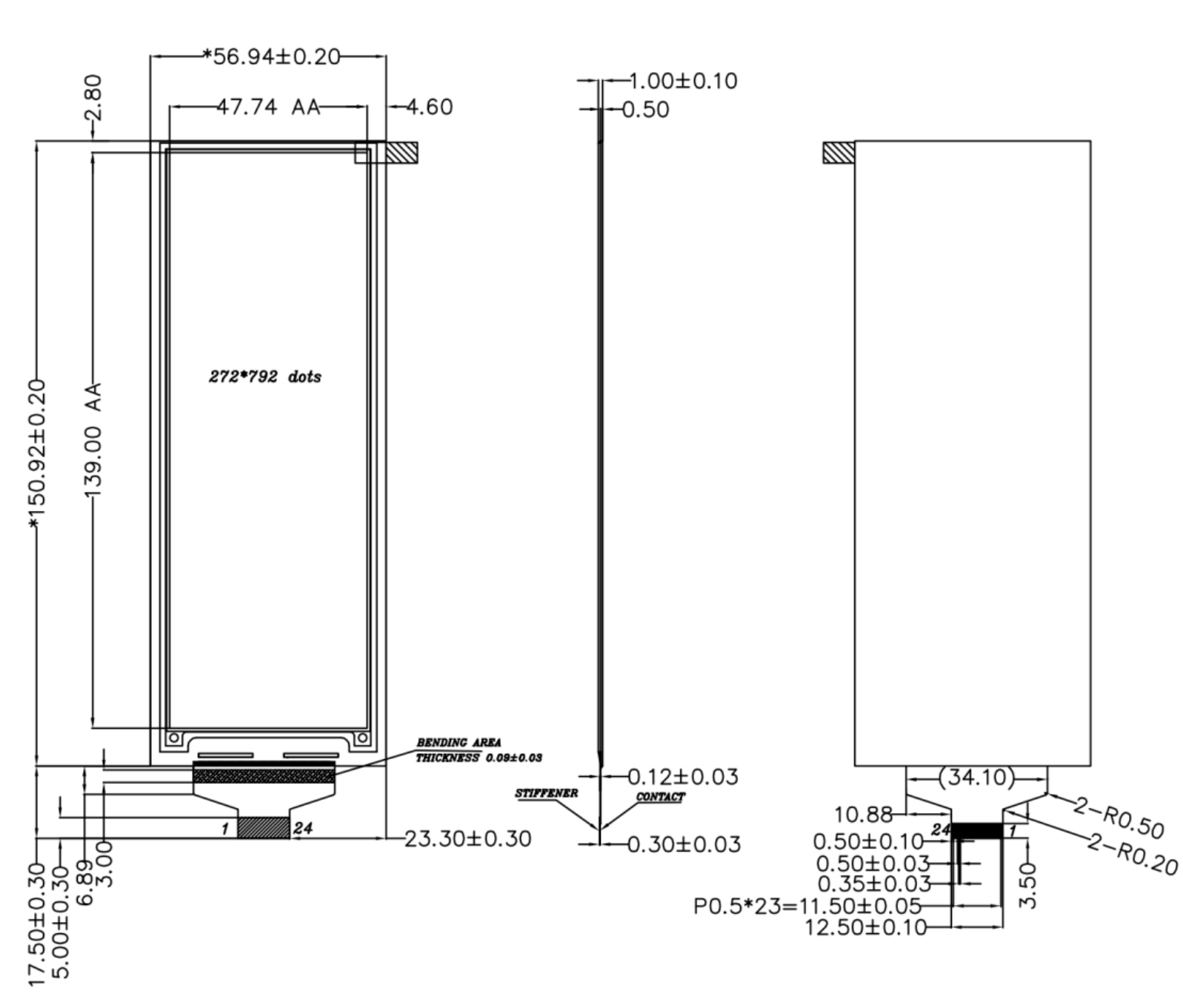

DRAWING

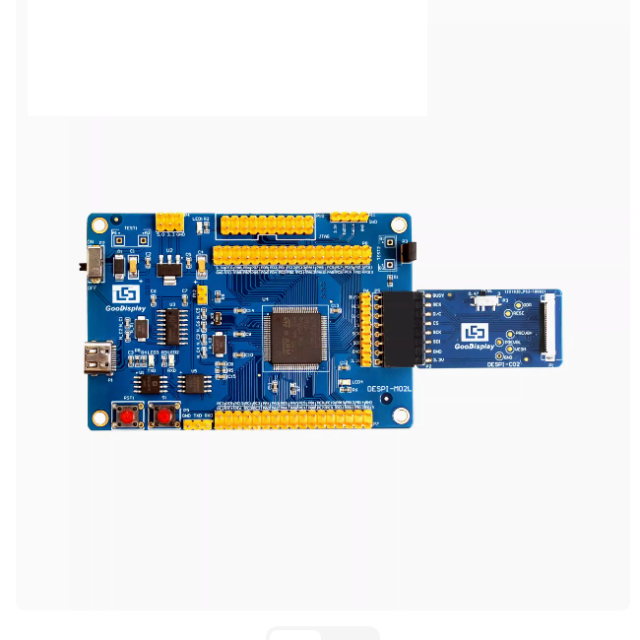

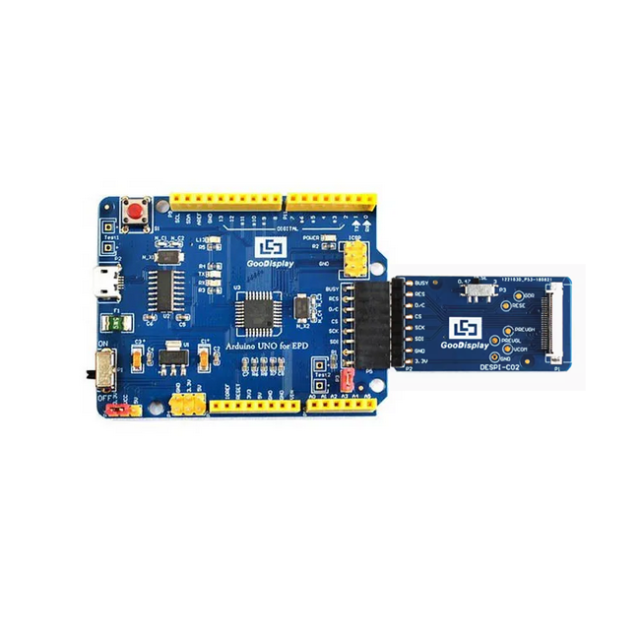

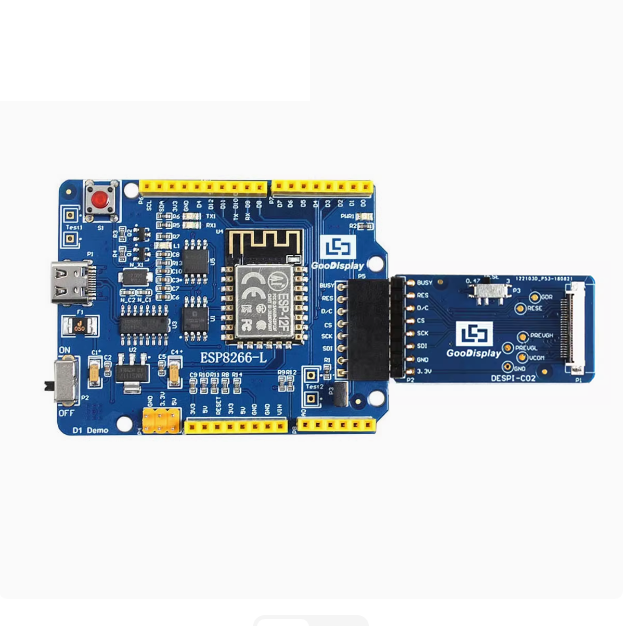

DEVELOPMENT PLATFORM AVAILABEL

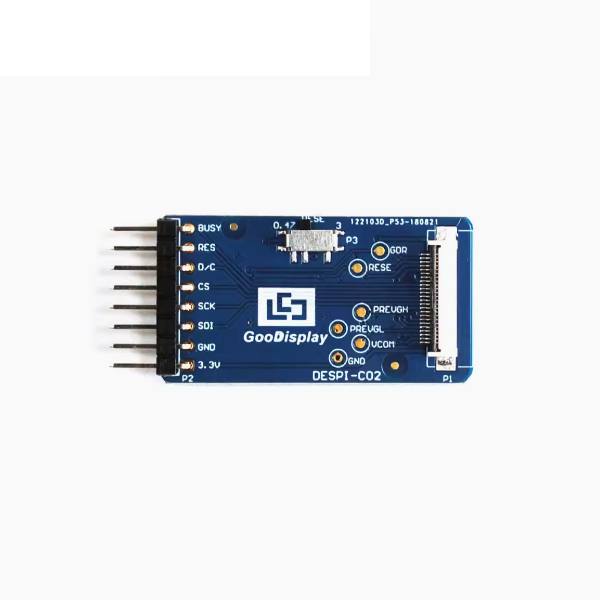

We have this e-paper screen Adapter Board that makes connecting our ePaper simple and fast.
