E Ink Display's Basic Function
- Refresh method: Full update 16s、Fast Update 12s (tested at 25°C ambient temperature)
- Display orientation: Horizontal or vertical
E Ink Display's Basic Parameters
- Product size: 0.97 inch
- Driver IC: JD79661
- Resolution: 184x88
- PPI: 210.27
- Color: Black, White, Yellow and Red (Four-color)
- Interface: SPI (18 pin)
- Operating voltage: 3.3V
- Operating temperature: 0-40 ℃
E Ink Display's Main Features
- Display feature: Bistable display (retains the current content after a power outage)
- Display mode: Pure reflection
- Viewing angle: Wide viewing angle exceeding 170 degrees
- Surface Treatment: Hard-coated for anti-glare effects
- Energy conservation: No power consumption when not refreshing the screen
- Eye Protection: No blue light emission, zero radiation
PARAMETERS
| PART NUMBER |
GDEM0097F51 |
| SIZE |
0.97 inch |
| TYPE |
Dot Matrix |
| IC |
JD79661 |
| RESOLUTION |
184x88 |
| PPI |
210.27 |
| OUTLINE SIZE(mm) |
30.0x14.15x1.0 |
| ACTIVE SIZE(mm) |
22.26x10.65 |
| PIXEL PITCH(mm) |
0.121x0.121 |
| OPERATING TEMP. |
0℃~40℃ |
| STORAGE TEMP. |
-25℃~70℃ |
| CONNECTOR |
18 Pin FPC |
| MAX GRAYSCALE |
2 |
| COLOR |
Black, White, Yellow and Red |
| INTERFACE |
SPI |
| FULL UPDATE TIME(s) |
16 |
| FAST UPDATE TIME(s) |
12 |
| TYPICAL POWER(mW) |
9 |
| DEEP SLEEP POWER(mW) |
0.0012 |
Explanation of the refresh process (Refresh time: the entire period from when the screen first reacts until the image stabilizes):
1. Full update: During the refresh process, the screen may flicker multiple times.
2. Partial update: The screen does not flicker during the refresh process.
Note: When using Fast update and Partial update, it is recommended to perform a Full-Screen Refresh after every five consecutive operations. This helps reduce the accumulation of screen ghosting.

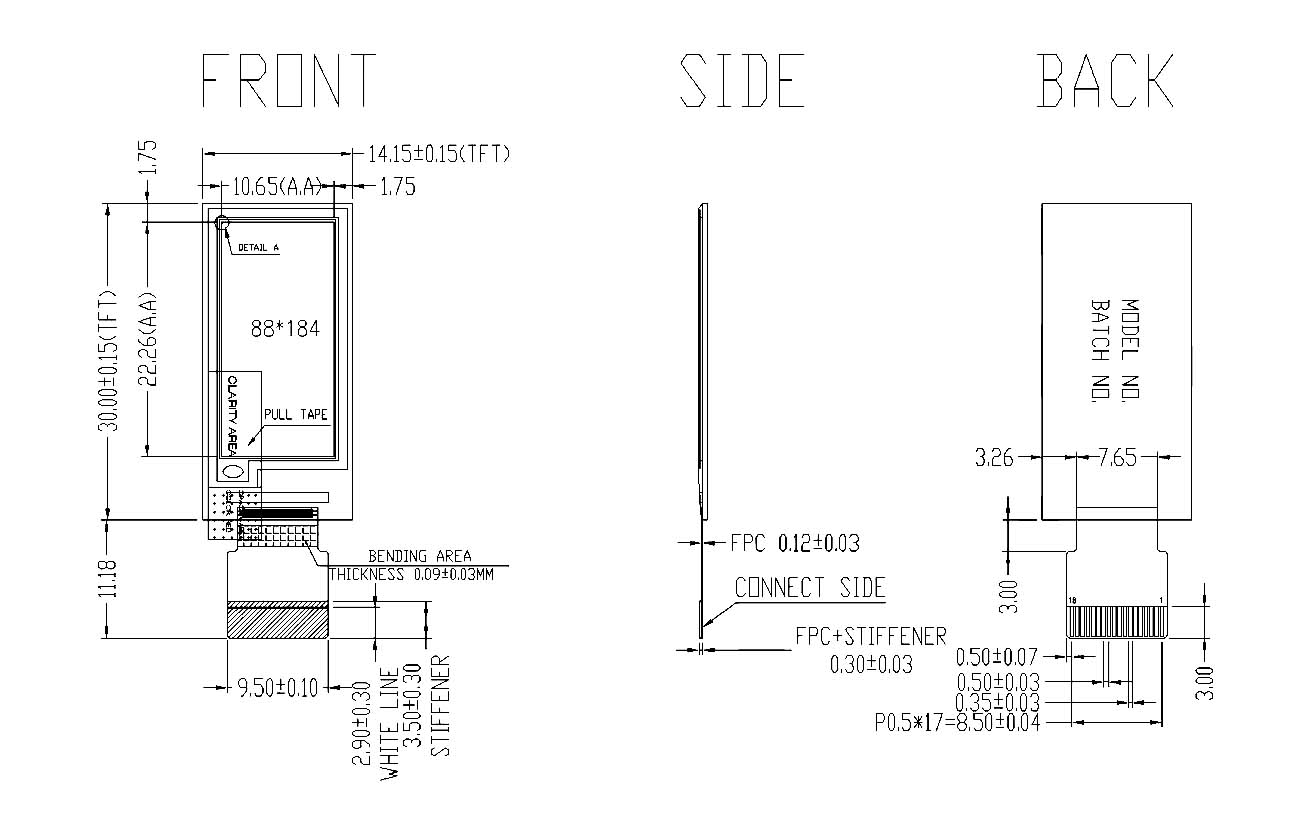

DRAWING

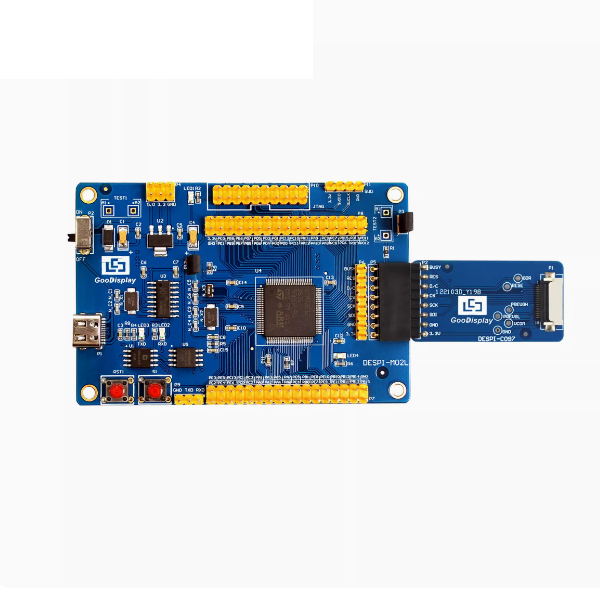

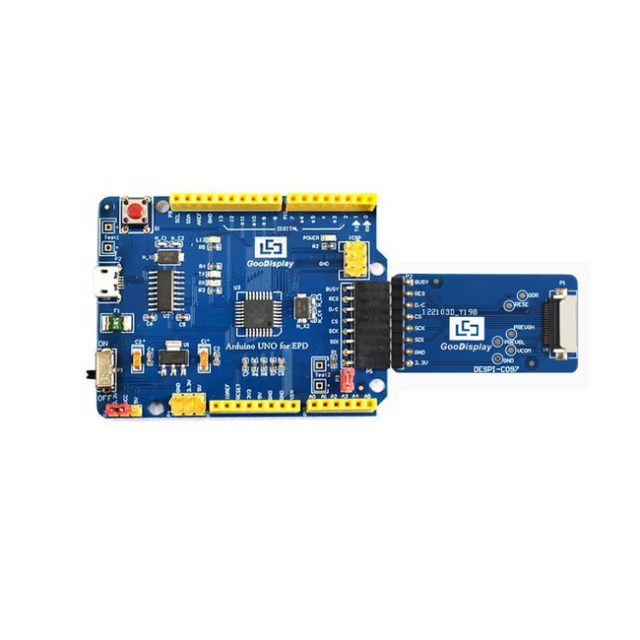

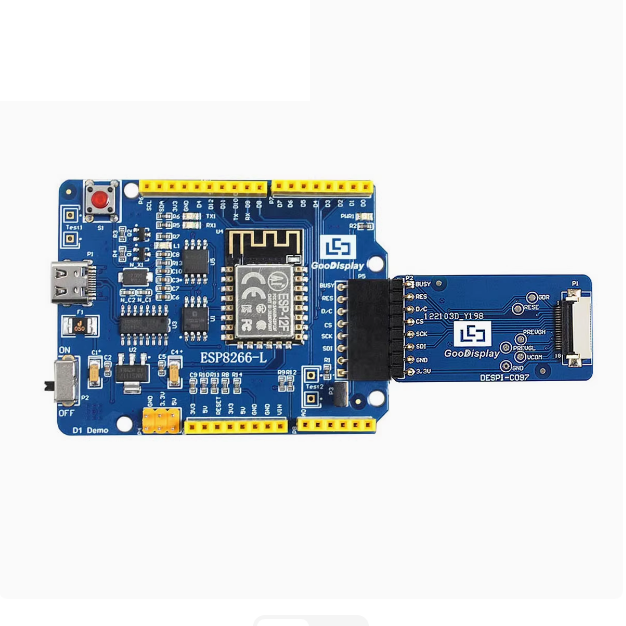

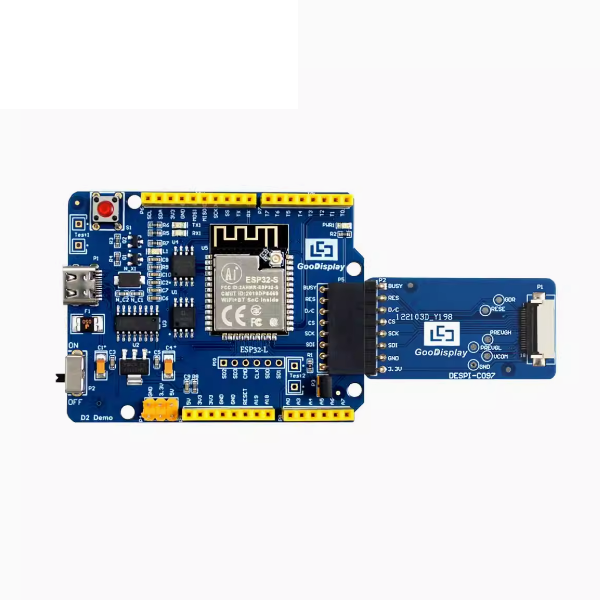

DEVELOPMENT PLATFORM AVAILABEL
We have this e-paper screen Adapter Board that makes connecting our ePaper simple and fast.
We have this e-paper screen Adapter Board that makes connecting our ePaper simple and fast.
☆ SPECIFICATION DOWNLOAD
The CD data includes:
1)GDEM0097F51_Specification(24.11.28)
2)JD79661 Driver IC Datasheet
3)Image2LCD Software Bitmap Conversion Instructions V1.0
4)GDEM0097F51 Arduino Sample Code（24.08.07)
5)GDEM0097F51 STM32 Sample Code（24.08.07）
6)GDEM0097F51 ESP32 Sample Code （24.08.07）
7)GDEM0097F51 ESP8266 Sample Code （24.08.07)
