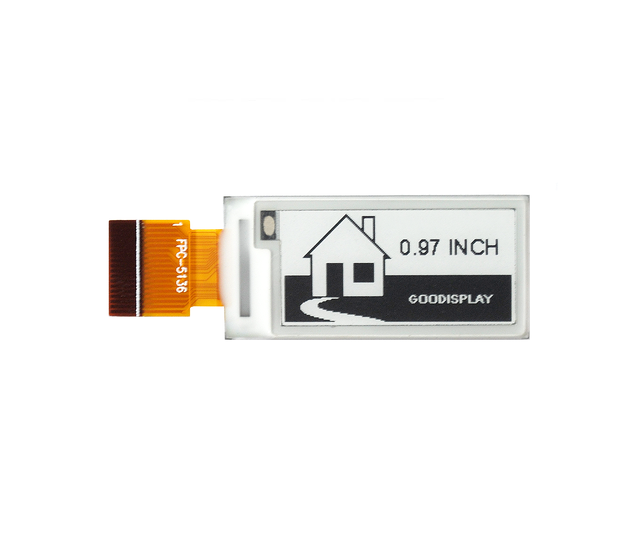

☆ INTRODUCTION
This 0.97-inch small e-paper, due to its compact size and low power consumption, can address applications where space and energy efficiency are critical. Its unique fast refresh and partial refresh features ensure quicker and clearer displays.
☆ Basic Parameters
- Product size: 0.97 inch
- Resolution:184x88
- PPI: 210.27
- Color: Black and White
- Driver IC:SSD1680
- Interface: SPI (18Pin)
- Operating voltage: 3.3V
- Operating temperature: 0-50 ℃
- Optional customized: NFC Driver Board
☆ FEATURE
- Display feature: Bistable display (retains the current content after a power outage)
- Display mode: Pure reflection
- Viewing angle: Wide viewing angle exceeding 170 degrees
- Surface Treatment: Hard-coated for anti-glare effects
- Energy conservation: No power consumption when not refreshing the screen
- Eye Protection: No blue light emission, zero radiation
☆ MAIN PARAMETERS
| PART NUMBER |
GDEM0097T61 |
| SIZE |
0.97 inch |
| TYPE |
Dot Matrix |
| IC |
SSD1680 |
| RESOLUTION |
184x88 |
| PPI |
210.27 |
| OUTLINE SIZE(mm) |
30.0x14.15x1.0 |
| ACTIVE SIZE(mm) |
22.26x10.65 |
| PIXEL PITCH(mm) |
0.121x0.121 |
| OPERATING TEMP. |
0℃~50℃ |
| STORAGE TEMP. |
-25℃~70℃ |
| CONNECTOR |
18 Pin FPC |
| MAX GRAYSCALE |
4 |
| COLOR |
Black, White |
| INTERFACE |
SPI |
| FULL UPDATE TIME(s) |
2 |
| PARTIAL UPDATE TIME(s) |
0.3 |
| 4 GRAYSCALE REFRESH(s) |
2 |
| TYPICAL POWER(mW) |
9 |
| DEEP SLEEP POWER(mW) |
0.003 |
Explanation of the refresh process (Refresh time: the entire period from when the screen first reacts until the image stabilizes):
1. Full update : During the refresh process, the screen may flicker multiple times.
2. Partial update : The screen does not flicker during the refresh process.
Note: When using Partial update, it is recommended to perform a Full-Screen Refresh after every five consecutive operations. This helps reduce the accumulation of screen ghosting.
If you need grayscale code, please contact us.

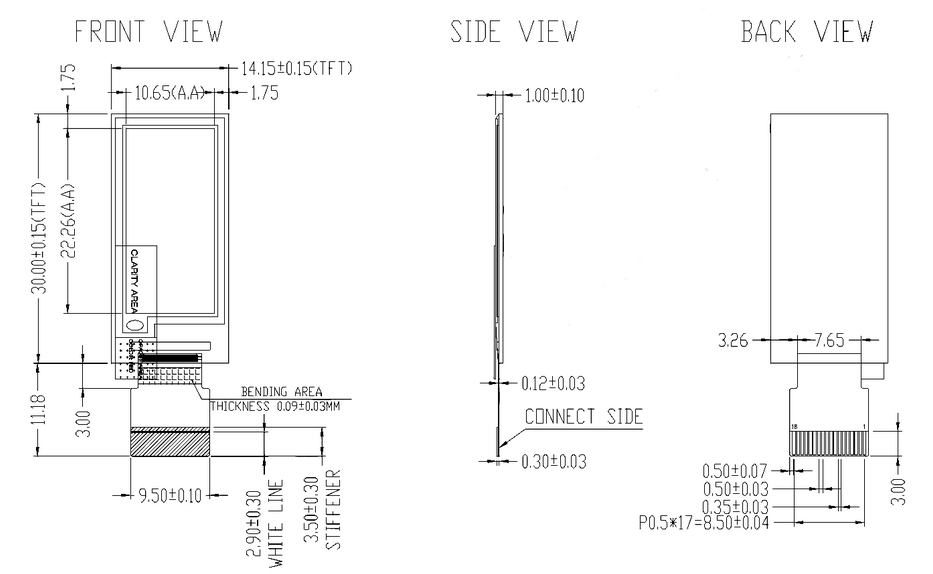

DRAWING

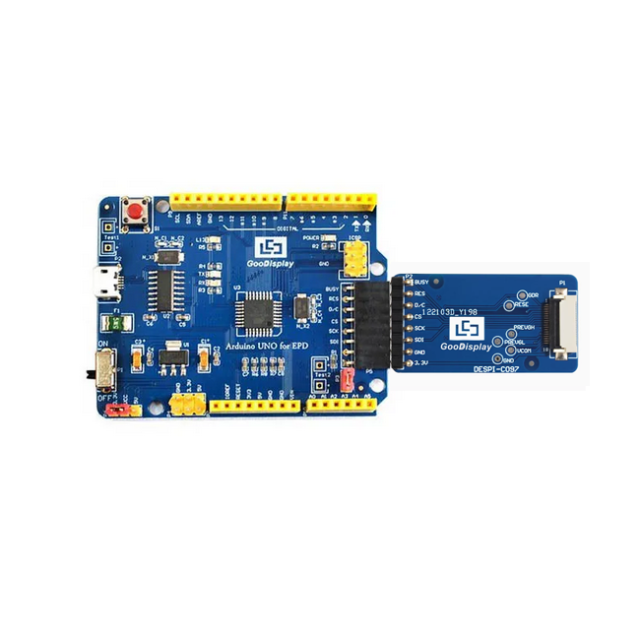

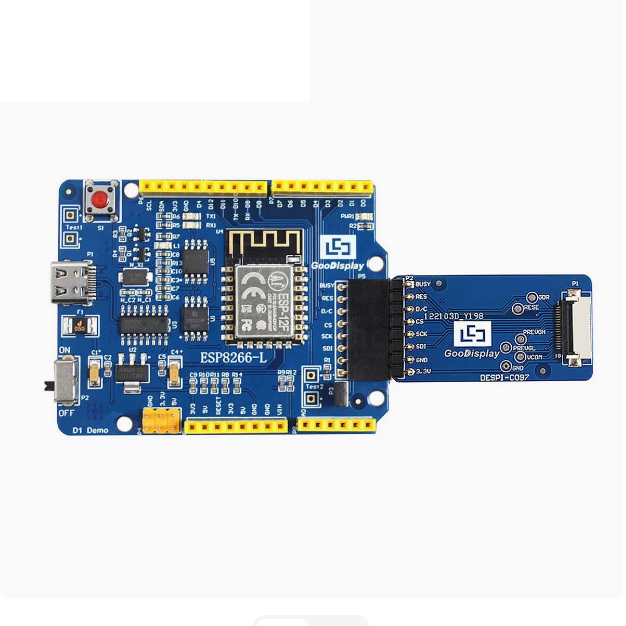

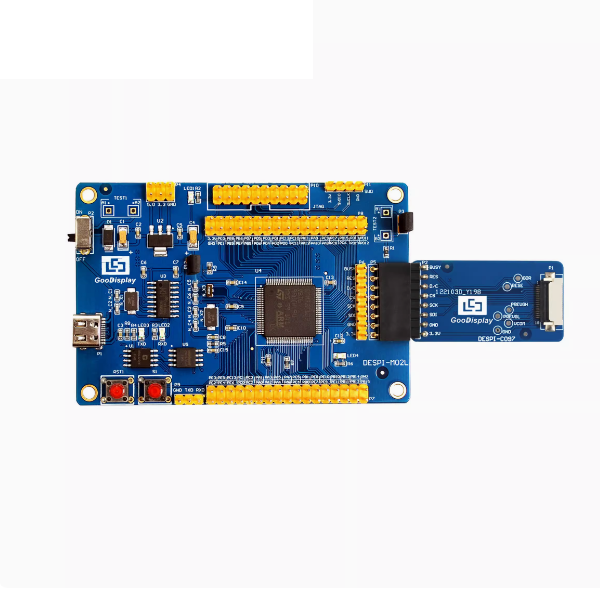

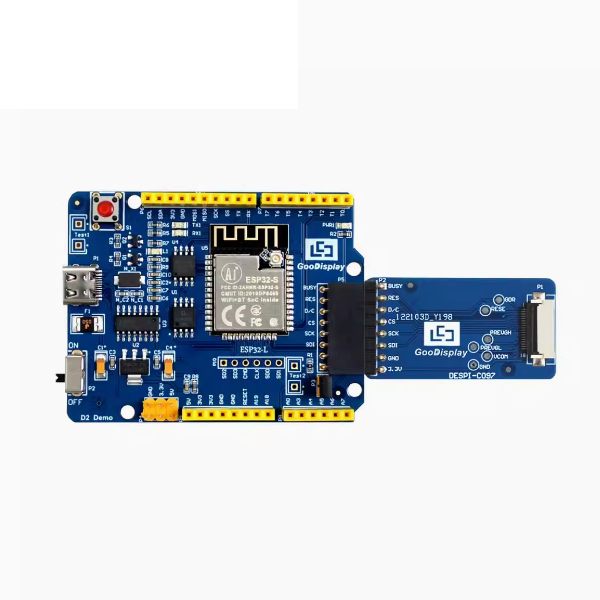

DEVELOPMENT PLATFORM AVAILABEL

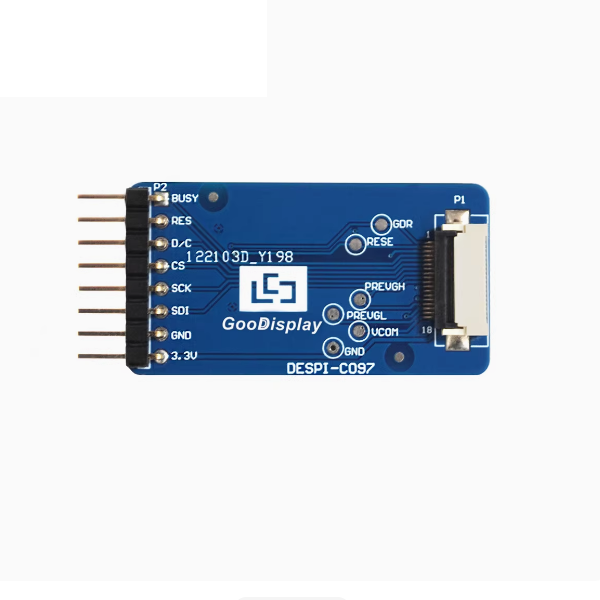

We have this e-paper screen Adapter Board that makes connecting our ePaper simple and fast.
We have this e-paper screen Adapter Board that makes connecting our ePaper simple and fast.
☆ SPECIFICATION DOWNLOAD
The CD data includes:
1)GDEM0097T61- Specification（25.01.08）
2)IC Driver SSD1680
3)GDEM0097T61 STM32 Sample Code
4)GDEM0097T61_ESP32 Sample Code
5)GDEM0097T61_ESP8266 Sample Code
6)GDEM0097T61_Arduino Sample Code
7)ESP32epdx Official Library User Manual(github)
☆ Selection Guide
| SIZE |
PART NUMBER |
COLOR |
IC |
RESOLUTION |
ACTIVE SIZE(mm) |
FULL REFRESH TIME (S) |
PARTIAL UPDATE TIME(s) |
FAST UPDATE TIME(s) |
PARTIAL REFRESH |
OPERATING TEMP. |
INTERFACE |
| 0.97'' |
GDEM0097T61 |
black, white |
SSD1680 |
184x88 |
22.26x10.65 |
2 |
0.3 |
|
√ |
0℃~50℃ |
SPI |
| 0.97'' |
GDEM0097F51 |
black, white,yellow,red |
JD79661 |
184x88 |
22.26x10.65 |
16 |
|
12 |
√ |
0℃~40℃ |
SPI |
| 1.54'' |
GDEY0154D67 |
black, white |
SSD1681 |
200x200 |
27x27 |
2 |
0.3 |
|
√ |
0℃~50℃ |
SPI |
| 1.54'' |
GDEM0154F51H |
black, white,yellow,red |
JD79660 |
200x200 |
27x27 |
20 |
|
12 |
√ |
0℃~40℃,SPI |
SPI |
| 2.13'' |
GDEY0213B74 |
black, white |
SSD1680Z |
250x122 |
48.55x23.7046 |
3 |
0.42 |
|
√ |
0℃~50℃ |
SPI |
| 2.13'' |
GDEY0213F52 |
black, white,yellow,red |
JD79676A |
250x122 |
48.55x23.7046 |
16 |
|
11 |
√ |
0℃~40℃ |
SPI |
| 2.66'' |
GDEY0266T90H |
black, white |
SSD1685 |
184x360 |
60.05x30.69 |
2 |
0.3 |
|
√ |
0℃~50℃ |
SPI |
| 2.66'' |
GDEY0266F51 |
black, white,yellow,red |
JD79661 |
184x360 |
60.05x30.69 |
25 |
|
14 |
√ |
0℃~40℃ |
SPI |
| 2.7'' |
GDEY027T91 |
black, white |
SSD1680 |
264x176 |
57.29x38.19 |
3 |
0.3 |
|
√ |
0℃~50℃ |
SPI |
| 2.9'' |
GDEY029T94 |
black, white |
SSD1680 |
296x128 |
66.896x29.056 |
3 |
0.3 |
|
√ |
0℃~50℃ |
SPI |
| 2.9'' |
GDEY029F51H |
black, white,yellow,red |
JD79667 |
384x168 |
67.58x29.57 |
20 |
|
12 |
√ |
0℃~40℃ |
SPI |
| 3.1'' |
GDEQ031T10 |
black, white |
UC8253 |
320x240 |
62.72x47.04 |
3 |
0.5 |
|
√ |
0℃~50℃ |
SPI |
| 3.5'' |
GDEM035T81 |
black, white |
SSD1685 |
384x184 |
79.68x38.18 |
2 |
0.3 |
|
√ |
0℃~50℃ |
SPI |
| 3.5'' |
GDEM035F51 |
black, white,yellow,red |
JD79667AA |
384x184 |
79.68x38.18 |
18 |
|
12 |
√ |
0℃~40℃ |
SPI |
| 3.7'' |
GDEY037T03 |
black, white |
UC8253 |
416x240 |
81.54x47.04 |
3 |
0.2 |
|
√ |
0℃~50℃ |
SPI |
| 3.7'' |
GDEM037F51 |
black, white,yellow,red |
IST7163 |
416x240 |
81.54x47.04 |
20 |
|
12 |
√ |
0℃~40℃ |
SPI |
| 3.97'' |
GDEM0397T81P |
black, white |
SSD1677 |
800x480 |
86.40x51.84 |
3 |
0.3 |
|
√ |
0℃~50℃ |
SPI |
| 3.97'' |
GDEM0397F81 |
black, white,yellow,red |
SSD2677 |
800x480 |
86.40x51.84 |
21 |
|
12 |
√ |
0℃~40℃ |
SPI |
| 4.2'' |
GDEY042T81 |
black, white |
SSD1683 |
400x300 |
84.8x63.6 |
3 |
0.2 |
|
√ |
0℃~50℃ |
SPI |
| 4.2'' |
GDEM042F52 |
black, white,yellow,red |
JD79668 |
400x300 |
84.8x63.6 |
20 |
|
12 |
√ |
0℃~40℃ |
SPI |
| 4.26'' |
GDEQ0426T82 |
black, white |
SSD1677 |
800*480 |
92.8x55.68 |
3 |
0.42 |
|
√ |
0℃~50℃ |
SPI |
| 5.79'' |
GDEY0579T93 |
black, white |
SSD1683 |
792x272 |
139.00×47.74 |
3 |
0.3 |
|
√ |
0℃~50℃ |
SPI |
| 5.79'' |
GDEY0579F51 |
black, white,yellow,red |
HX8717*2 |
792*272 |
139.00×47.74 |
26 |
|
13 |
√ |
0℃~40℃ |
SPI |
| 5.83'' |
GDEY0583T81 |
black, white |
UC8179 |
648x480 |
118.78x88.22 |
3 |
0.3 |
|
√ |
0℃~50℃ |
SPI |
| 7.5'' |
GDEY075T7 |
black, white |
UC8179 |
800x480 |
163.2x97.72 |
3 |
0.3 |
|
√ |
0℃~50℃ |
SPI |
| 7.5'' |
GDEM075F52 |
black, white,yellow,red |
JD79665AA |
800x480 |
163.2x97.92 |
22 |
|
12 |
√ |
0℃~40℃ |
SPI |
| 10.2'' |
GDEM102T91 |
black, white |
SSD1677 |
960x640 |
215.52x143.68 |
4 |
0.42 |
|
√ |
0℃~50℃ |
SPI |
| 10.2'' |
GDEM102F91 |
black, white,yellow,red |
SSD2677 |
960x640 |
215.52x143.68 |
20 |
|
12 |
√ |
0℃~40℃ |
SPI |
| 10.85'' |
GDEM1085T51 |
black, white |
JD79686AB |
1360x480 |
259.76×91.68 |
4 |
0.4 |
|
√ |
0℃~50℃ |
SPI |
| 10.85'' |
GDEM1085F51 |
black, white,yellow,red |
JD79665AA |
1360x480 |
259.76×91.68 |
20 |
|
12 |
√ |
0℃~40℃ |
SPI |
| 11.6'' |
GDEY116T91 |
black, white |
SSD1677 |
960x640 |
244.51x163.01 |
5 |
0.5 |
|
√ |
0℃~50℃ |
SPI |
| 11.6'' |
GDEY116F51 |
black, white,yellow,red |
SSD2677 |
960x640 |
244.51×163.01 |
20 |
|
16 |
√ |
0℃~40℃ |
SPI |
| 13.3'' |
GDEM133T91 |
black, white |
SSD1677 |
960x680 |
275.52x195.16 |
4 |
0.4 |
|
√ |
0℃~50℃ |
SPI |
