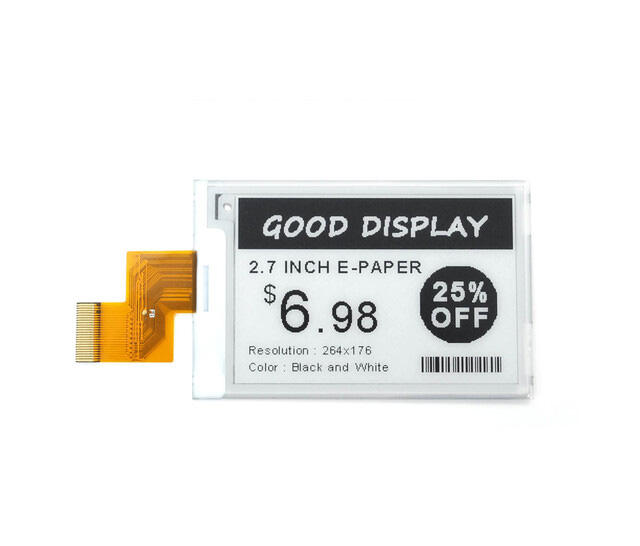

E-Paper Display Arduino 2.7 inch E-Ink Screen Display 264x176 SPI

ePaper Display's Basic function

• Refresh Method: Full refresh for 3s、Fast refresh for 1.5s、Partial refresh for 0.3s (tested at 25°C ambient temperature).
• Display direction: Horizontal or vertical

ePaper Display's Basic parameters

• Product size: 2.7 inch
• Resolution: 264x176
• PPI: 117.51
• Color: Black and White
• Driver IC: SSD1680
• Interface: SPI
• Working voltage: 3.3V
• Working temperature: 0-50 ℃
• Optional customized: Touch screen | Front light | Front light + Touch screen | NFC driver board

ePaper Display's Main features

• Display feature: Bistable display (maintains the last screen after power outage)
• Display mode: Pure reflection
• Angle of view: Wide angle of view, greater than 170 degrees
• Surface treatment: Hard coating anti glare treatment
• Environmentally friendly and low-carbon: No refresh, no power consumption
• Eye protection: No blue light, no radiation

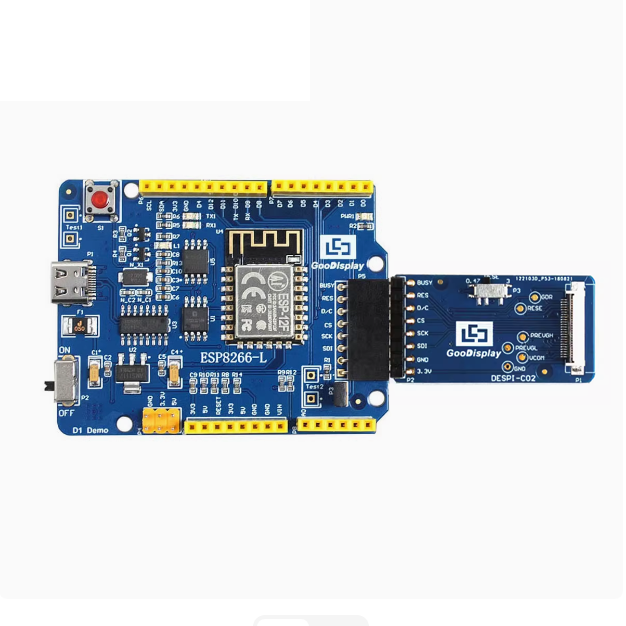

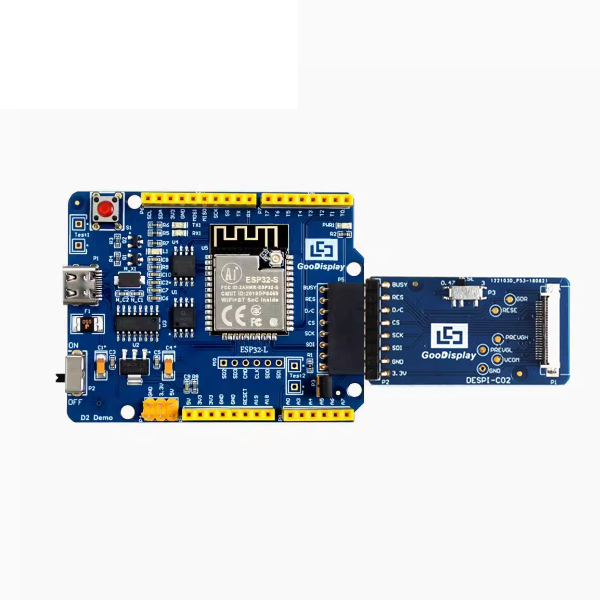

We have this e-paper screen Adapter Board that makes connecting our ePaper simple and fast.

☆ MAIN PARAMETERS

PART NUMBER	GDEY027T91
TYPE	Dot Matrix
SIZE	2.7 inch
IC	SSD1680
RESOLUTION	264x176
PPI	117.51
OUTLINE SIZE(mm)	70.42x45.8x1.0
ACTIVE SIZE(mm)	57.29x38.19
PIXEL PITCH(mm)	0.217x0.217
OPERATING TEMP.	0℃~50℃
STORAGE TEMP.	-25℃~70℃
CONNECTOR	24 Pin FPC
MAX GRAYSCALE	4
COLOR	Black,White
INTERFACE	SPI
FULL REFRESH(s)	3
PARTIAL REFRESH TIME(s)	0.3
FAST REFRESH TIME(s)	1.5
POWER CONSUMPTION OF THE REFRESH(mW)	9
STANDBY POWER CONSUMPTION (mW)	0.003
FRONT LIGHT , TOUCH SCREEN	Optional

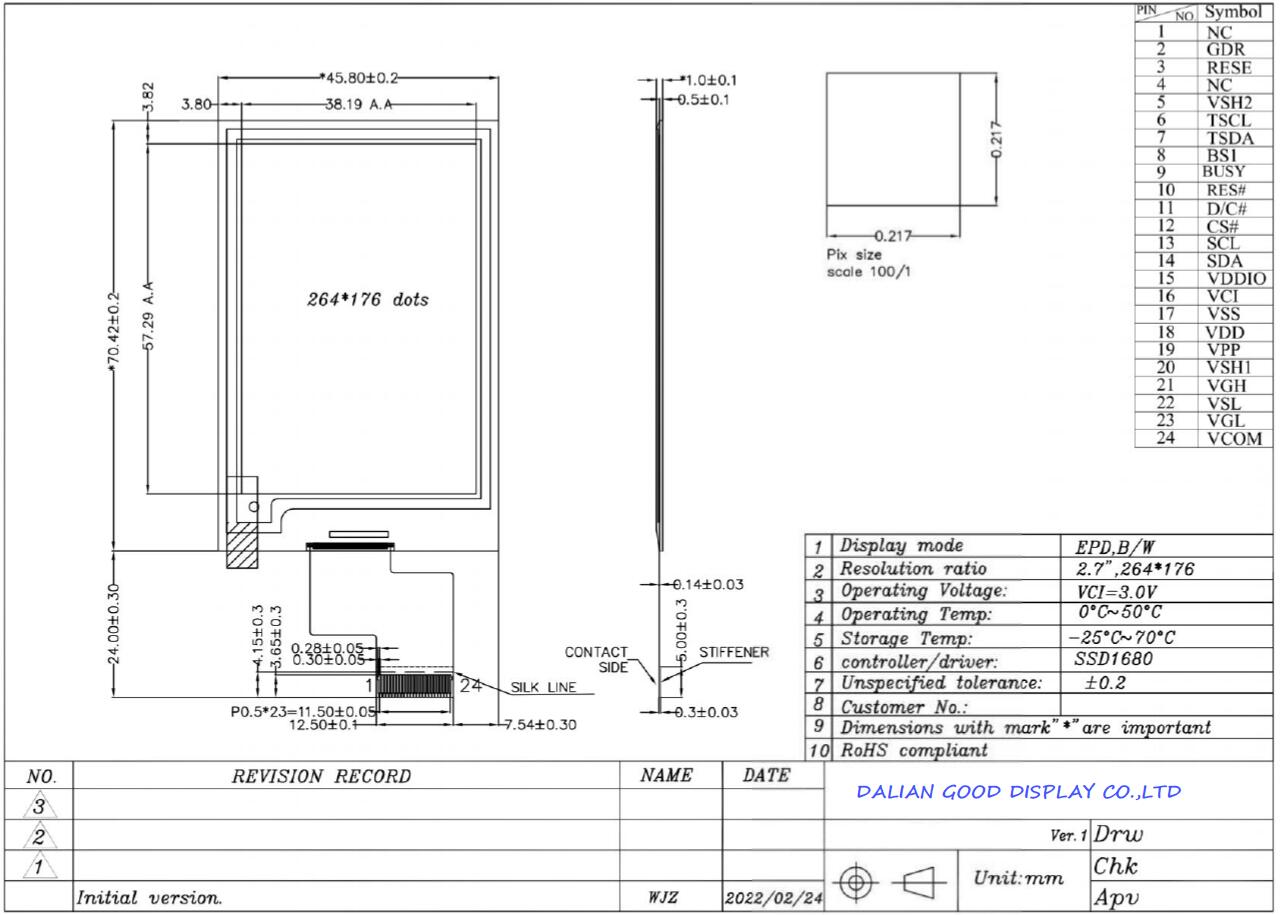

☆ Drawing





☆ SPECIFICATION DOWNLOAD

---

The CD data includes:

1)GDEY027T91 Specification(24.10.22)
2)IC Driver SSD1680
3)Picture Production and Bitmap Convert for GDEY027T91
4)GDEY027T91 STM32 Sample Code
5)GDEY027T91 Arduino Sample Code
6)GDEY027T91 ESP8266 Sample Code
7)GDEY027T91 ESP32 Sample Code
8)ESP32epdx Official Library User Manual(github)



☆ Selection Guide

---



SIZE	PART NUMBER	COLOR	IC	RESOLUTION	ACTIVE SIZE(mm)	FULL REFRESH TIME (S)	PARTIAL UPDATE TIME(s)	FAST UPDATE TIME(s)	PARTIAL REFRESH	OPERATING TEMP.	INTERFACE
0.97''	GDEM0097T61	black, white	SSD1680	184x88	22.26x10.65	2	0.3		√	0℃~50℃	SPI
0.97''	GDEM0097F51	black, white,yellow,red	JD79661	184x88	22.26x10.65	16		12	√	0℃~40℃	SPI
1.54''	GDEY0154D67	black, white	SSD1681	200x200	27x27	2	0.3		√	0℃~50℃	SPI
1.54''	GDEM0154F51H	black, white,yellow,red	JD79660	200x200	27x27	20		12	√	0℃~40℃,SPI	SPI
2.13''	GDEY0213B74	black, white	SSD1680Z	250x122	48.55x23.7046	3	0.42		√	0℃~50℃	SPI
2.13''	GDEY0213F52	black, white,yellow,red	JD79676A	250x122	48.55x23.7046	16		11	√	0℃~40℃	SPI
2.66''	GDEY0266T90H	black, white	SSD1685	184x360	60.05x30.69	2	0.3		√	0℃~50℃	SPI
2.66''	GDEY0266F51	black, white,yellow,red	JD79661	184x360	60.05x30.69	25		14	√	0℃~40℃	SPI
2.7''	GDEY027T91	black, white	SSD1680	264x176	57.29x38.19	3	0.3		√	0℃~50℃	SPI
2.9''	GDEY029T94	black, white	SSD1680	296x128	66.896x29.056	3	0.3		√	0℃~50℃	SPI
2.9''	GDEY029F51H	black, white,yellow,red	JD79667	384x168	67.58x29.57	20		12	√	0℃~40℃	SPI
3.1''	GDEQ031T10	black, white	UC8253	320x240	62.72x47.04	3	0.5		√	0℃~50℃	SPI
3.5''	GDEM035T81	black, white	SSD1685	384x184	79.68x38.18	2	0.3		√	0℃~50℃	SPI
3.5''	GDEM035F51	black, white,yellow,red	JD79667AA	384x184	79.68x38.18	18		12	√	0℃~40℃	SPI
3.7''	GDEY037T03	black, white	UC8253	416x240	81.54x47.04	3	0.2		√	0℃~50℃	SPI
3.7''	GDEM037F51	black, white,yellow,red	IST7163	416x240	81.54x47.04	20		12	√	0℃~40℃	SPI
3.97''	GDEM0397T81P	black, white	SSD1677	800x480	86.40x51.84	3	0.3		√	0℃~50℃	SPI
3.97''	GDEM0397F81	black, white,yellow,red	SSD2677	800x480	86.40x51.84	21		12	√	0℃~40℃	SPI
4.2''	GDEY042T81	black, white	SSD1683	400x300	84.8x63.6	3	0.2		√	0℃~50℃	SPI
4.2''	GDEM042F52	black, white,yellow,red	JD79668	400x300	84.8x63.6	20		12	√	0℃~40℃	SPI
4.26''	GDEQ0426T82	black, white	SSD1677	800*480	92.8x55.68	3	0.42		√	0℃~50℃	SPI
5.79''	GDEY0579T93	black, white	SSD1683	792x272	139.00×47.74	3	0.3		√	0℃~50℃	SPI
5.79''	GDEY0579F51	black, white,yellow,red	HX8717*2	792*272	139.00×47.74	26		13	√	0℃~40℃	SPI
5.83''	GDEY0583T81	black, white	UC8179	648x480	118.78x88.22	3	0.3		√	0℃~50℃	SPI
7.5''	GDEY075T7	black, white	UC8179	800x480	163.2x97.72	3	0.3		√	0℃~50℃	SPI
7.5''	GDEM075F52	black, white,yellow,red	JD79665AA	800x480	163.2x97.92	22		12	√	0℃~40℃	SPI
10.2''	GDEM102T91	black, white	SSD1677	960x640	215.52x143.68	4	0.42		√	0℃~50℃	SPI
10.2''	GDEM102F91	black, white,yellow,red	SSD2677	960x640	215.52x143.68	20		12	√	0℃~40℃	SPI
10.85''	GDEM1085T51	black, white	JD79686AB	1360x480	259.76×91.68	4	0.4		√	0℃~50℃	SPI
10.85''	GDEM1085F51	black, white,yellow,red	JD79665AA	1360x480	259.76×91.68	20		12	√	0℃~40℃	SPI
11.6''	GDEY116T91	black, white	SSD1677	960x640	244.51x163.01	5	0.5		√	0℃~50℃	SPI
11.6''	GDEY116F51	black, white,yellow,red	SSD2677	960x640	244.51×163.01	20		16	√	0℃~40℃	SPI
13.3''	GDEM133T91	black, white	SSD1677	960x680	275.52x195.16	4	0.4		√	0℃~50℃	SPI
