4.26-inch E-Paper Display — a perfect blend of cutting-edge technology and exceptional performance. With a crystal-clear 800x480 resolution, this display brings your content to life with vivid detail and sharp clarity, ideal for both personal and commercial use.

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

Recommended E epaper Display 4.26 inch e-ink fast update display 800x480 resolution SPI

ePaper Display's Basic function

Refresh Method: Full refresh for 3.5s,Fast refresh for 1.5s,Partial refresh for 0.42s (tested at 25°C ambient temperature）
Display direction: Horizontal or vertical

ePaper Display's Basic parameters

Product size: 4.26 inch
Resolution: 800x480
PPI: 219
Color: Black and White
Driver IC: SSD1677
Interface: SPI
Operating voltage: 3.3V
Operating temperature: 0-50 ℃

ePaper Display's Main features

Display feature: Bistable display (retains the current content after a power outage)
Display mode: Pure reflection
Viewing angle: Wide viewing angle exceeding 170 degrees
Surface Treatment: Hard-coated for anti-glare effects
Energy conservation: No power consumption when not refreshing the screen
Eye Protection: No blue light emission, zero radiation

Applications

PARAMETERS

Part Number	GDEQ0426T82
Size	4.26 inch
IC	SSD1677
Type	Dot Matrix
Resolution	800*480
PPI	219
Outline Size(mm)	105.3362.370.926
Active Size(mm)	92.8*55.68
Pixel Pitch(mm)	0.116*0.116
Operating Temp.	0℃~50℃
Storage Temp.	-25℃~60℃
Connector	24 Pin FPC, Pitch:0.5mm
Color	Black,White
Max grayscale	4
Interface	SPI
Power consumption of the refresh(mW)	26.4
Standby power consumption Pc(mW)	0.0066
Partial Refresh Time(s)	0.42
Fast Refresh Time(s)	1.5
Time of refresh(s)	3.5

Explanation of the refresh process (Refresh time: the entire period from when the screen first reacts until the image stabilizes):

1. Full Refresh: During the refresh process, the screen may flicker multiple times.
2. Fast Refresh: The screen flickers once during the refresh process.
3. Partial Refresh: The screen does not flicker during the refresh process.
Note: When using Fast Refresh and Partial Refresh, it is recommended to perform a Full-Screen Refresh after every five consecutive operations. This helps reduce the accumulation of screen ghosting.
If you need grayscale code, please contact us.

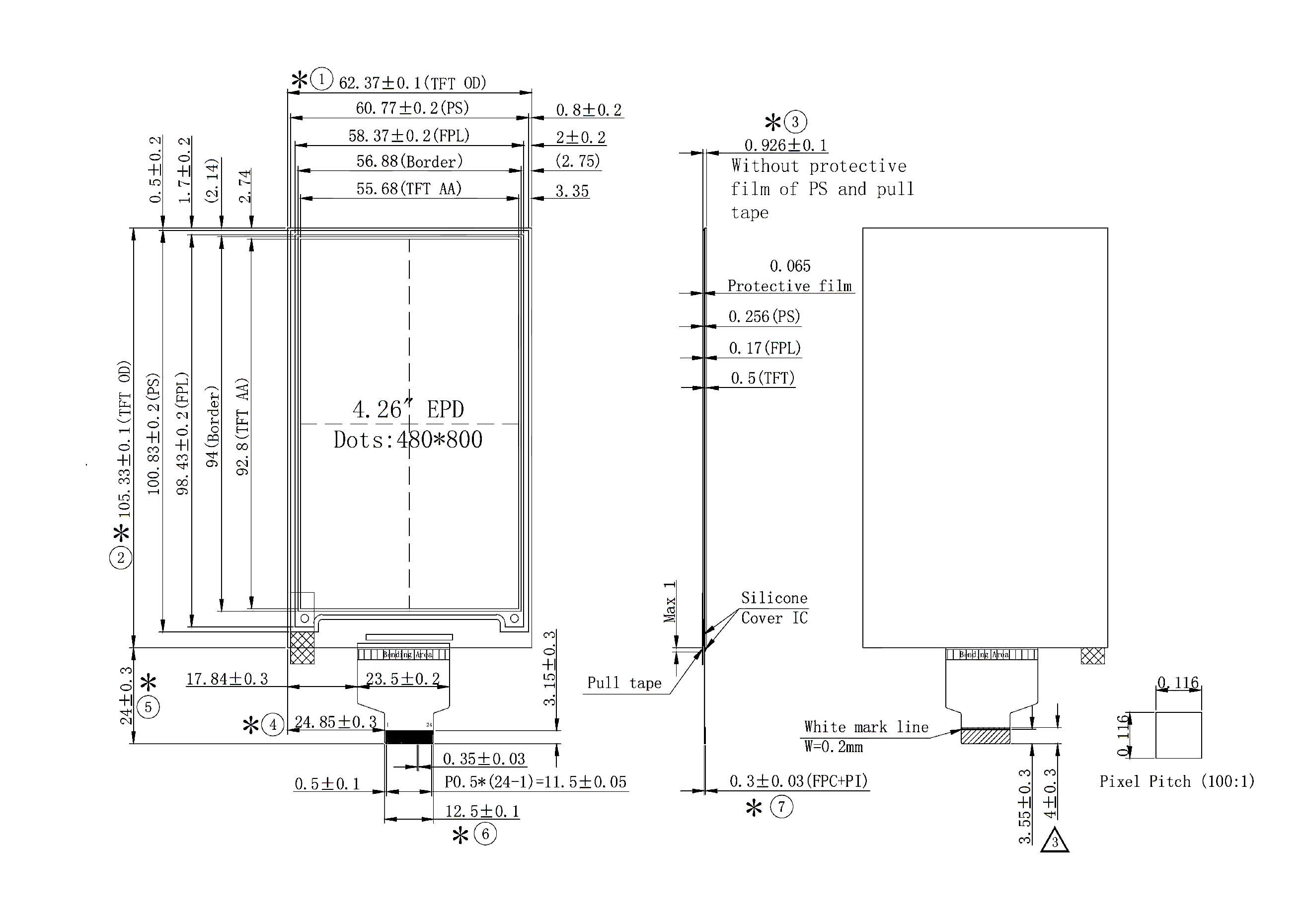

DRAWING

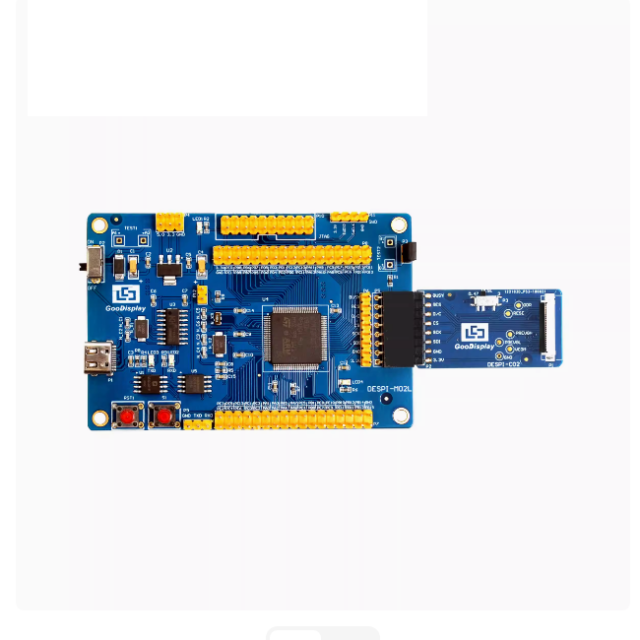

DEVELOPMENT PLATFORM AVAILABEL

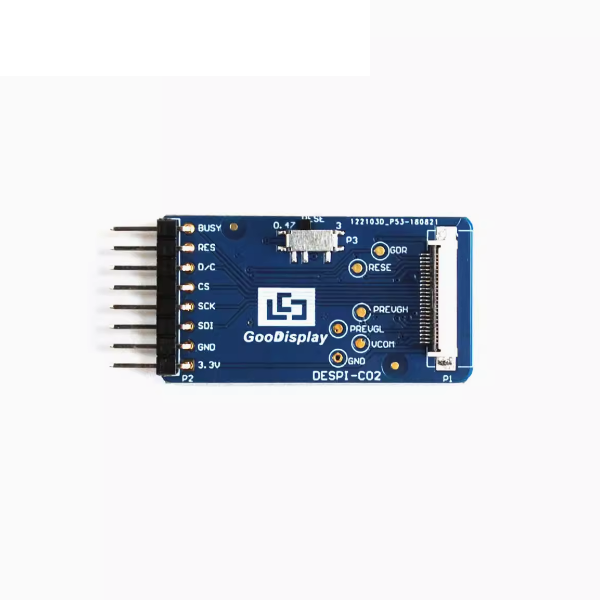

We have this e-paper screen Adapter Board that makes connecting our ePaper simple and fast.

☆ SPECIFICATION DOWNLOAD

The CD data includes:

1)GDEQ0426T82 Specification（25.01.08）
2)IC Driver SSD1677
3)Picture Production and Bitmap Convert for GDEQ0426T82
4)GDEQ0426T82 STM32 Sample Code(25.3.10)
5)GDEQ0426T82 ESP32 Sample Code(25.3.10)

☆ Selection Guide

SIZE	PART NUMBER	COLOR	IC	RESOLUTION	ACTIVE SIZE(mm)	FULL REFRESH TIME (S)	PARTIAL UPDATE TIME(s)	FAST UPDATE TIME(s)	PARTIAL REFRESH	OPERATING TEMP.	INTERFACE
0.97''	GDEM0097T61	black, white	SSD1680	184x88	22.26x10.65	2	0.3		√	0℃~50℃	SPI
0.97''	GDEM0097F51	black, white,yellow,red	JD79661	184x88	22.26x10.65	16		12	√	0℃~40℃	SPI
1.54''	GDEY0154D67	black, white	SSD1681	200x200	27x27	2	0.3		√	0℃~50℃	SPI
1.54''	GDEM0154F51H	black, white,yellow,red	JD79660	200x200	27x27	20		12	√	0℃~40℃,SPI	SPI
2.13''	GDEY0213B74	black, white	SSD1680Z	250x122	48.55x23.7046	3	0.42		√	0℃~50℃	SPI
2.13''	GDEY0213F52	black, white,yellow,red	JD79676A	250x122	48.55x23.7046	16		11	√	0℃~40℃	SPI
2.66''	GDEY0266T90H	black, white	SSD1685	184x360	60.05x30.69	2	0.3		√	0℃~50℃	SPI
2.66''	GDEY0266F51	black, white,yellow,red	JD79661	184x360	60.05x30.69	25		14	√	0℃~40℃	SPI
2.7''	GDEY027T91	black, white	SSD1680	264x176	57.29x38.19	3	0.3		√	0℃~50℃	SPI
2.9''	GDEY029T94	black, white	SSD1680	296x128	66.896x29.056	3	0.3		√	0℃~50℃	SPI
2.9''	GDEY029F51H	black, white,yellow,red	JD79667	384x168	67.58x29.57	20		12	√	0℃~40℃	SPI
3.1''	GDEQ031T10	black, white	UC8253	320x240	62.72x47.04	3	0.5		√	0℃~50℃	SPI
3.5''	GDEM035T81	black, white	SSD1685	384x184	79.68x38.18	2	0.3		√	0℃~50℃	SPI
3.5''	GDEM035F51	black, white,yellow,red	JD79667AA	384x184	79.68x38.18	18		12	√	0℃~40℃	SPI
3.7''	GDEY037T03	black, white	UC8253	416x240	81.54x47.04	3	0.2		√	0℃~50℃	SPI
3.7''	GDEM037F51	black, white,yellow,red	IST7163	416x240	81.54x47.04	20		12	√	0℃~40℃	SPI
3.97''	GDEM0397T81P	black, white	SSD1677	800x480	86.40x51.84	3	0.3		√	0℃~50℃	SPI
3.97''	GDEM0397F81	black, white,yellow,red	SSD2677	800x480	86.40x51.84	21		12	√	0℃~40℃	SPI
4.2''	GDEY042T81	black, white	SSD1683	400x300	84.8x63.6	3	0.2		√	0℃~50℃	SPI
4.2''	GDEM042F52	black, white,yellow,red	JD79668	400x300	84.8x63.6	20		12	√	0℃~40℃	SPI
4.26''	GDEQ0426T82	black, white	SSD1677	800*480	92.8x55.68	3	0.42		√	0℃~50℃	SPI
5.79''	GDEY0579T93	black, white	SSD1683	792x272	139.00×47.74	3	0.3		√	0℃~50℃	SPI
5.79''	GDEY0579F51	black, white,yellow,red	HX8717*2	792*272	139.00×47.74	26		13	√	0℃~40℃	SPI
5.83''	GDEY0583T81	black, white	UC8179	648x480	118.78x88.22	3	0.3		√	0℃~50℃	SPI
7.5''	GDEY075T7	black, white	UC8179	800x480	163.2x97.72	3	0.3		√	0℃~50℃	SPI
7.5''	GDEM075F52	black, white,yellow,red	JD79665AA	800x480	163.2x97.92	22		12	√	0℃~40℃	SPI
10.2''	GDEM102T91	black, white	SSD1677	960x640	215.52x143.68	4	0.42		√	0℃~50℃	SPI
10.2''	GDEM102F91	black, white,yellow,red	SSD2677	960x640	215.52x143.68	20		12	√	0℃~40℃	SPI
10.85''	GDEM1085T51	black, white	JD79686AB	1360x480	259.76×91.68	4	0.4		√	0℃~50℃	SPI
10.85''	GDEM1085F51	black, white,yellow,red	JD79665AA	1360x480	259.76×91.68	20		12	√	0℃~40℃	SPI
11.6''	GDEY116T91	black, white	SSD1677	960x640	244.51x163.01	5	0.5		√	0℃~50℃	SPI
11.6''	GDEY116F51	black, white,yellow,red	SSD2677	960x640	244.51×163.01	20		16	√	0℃~40℃	SPI
13.3''	GDEM133T91	black, white	SSD1677	960x680	275.52x195.16	4	0.4		√	0℃~50℃	SPI
