E Ink screen 2.13 inch four Colors e-paper display high resolution 250x122 fast refresh rate
- Refresh Method: Full refresh for 16s, Fast refresh for 11s (tested at 25°C ambient temperature)
- Display direction: Horizontal or vertical
ePaper Display's Basic parameters
- Product size: 2.13 inch
- Resolution: 250x122
- PPI: 130.6
- Color: Black, White, Yellow and Red
- Driver IC: JD79676A
- Interface: SPI
- Operating voltage: 3.3V
- Operating temperature: 0-40 ℃
- Optional accessories: Front Light|Plastic Enclosure|NFC driver board|NFC Tag
ePaper Display's Main features
- Display feature: Bistable display (maintains the last screen after power outage)
- Display mode: Pure reflection
- Angle of view: Wide angle of view, greater than 170 degrees
- Surface treatment: Hard coating anti glare treatment
- Environmentally friendly and low-carbon: No refresh, no power consumption
- Eye protection: No blue light, no radiation
PARAMETERS
|
PART NUMBER
|
GDEY0213F52
|
|
SIZE
|
2.13 inch
|
|
TYPE
|
Dot Matrix
|
|
IC
|
JD79676A
|
|
RESOLUTION
|
250x122
|
| PPI |
130.6 |
|
OUTLINE SIZE(mm)
|
59.2x29.2x1.0
|
|
ACTIVE SIZE(mm)
|
48.55x23.7046
|
|
PIXEL PITCH(mm)
|
0.1943x0.1942
|
|
OPERATING TEMP.
|
0℃~40℃
|
|
STORAGE TEMP.
|
-25℃~70℃
|
|
CONNECTOR
|
24 Pin 0.5mm
|
|
COLOR
|
Black, White, Yellow, Red
|
|
INTERFACE
|
SPI
|
|
FULL SCREEN UPDATE(s)
|
16
|
| FAST SCREEN UPDATE(s) |
11 |
| TYPICAL POWER(mw) |
9.9
|
| DEEP SLEEP POWER(mw) |
0.03
|

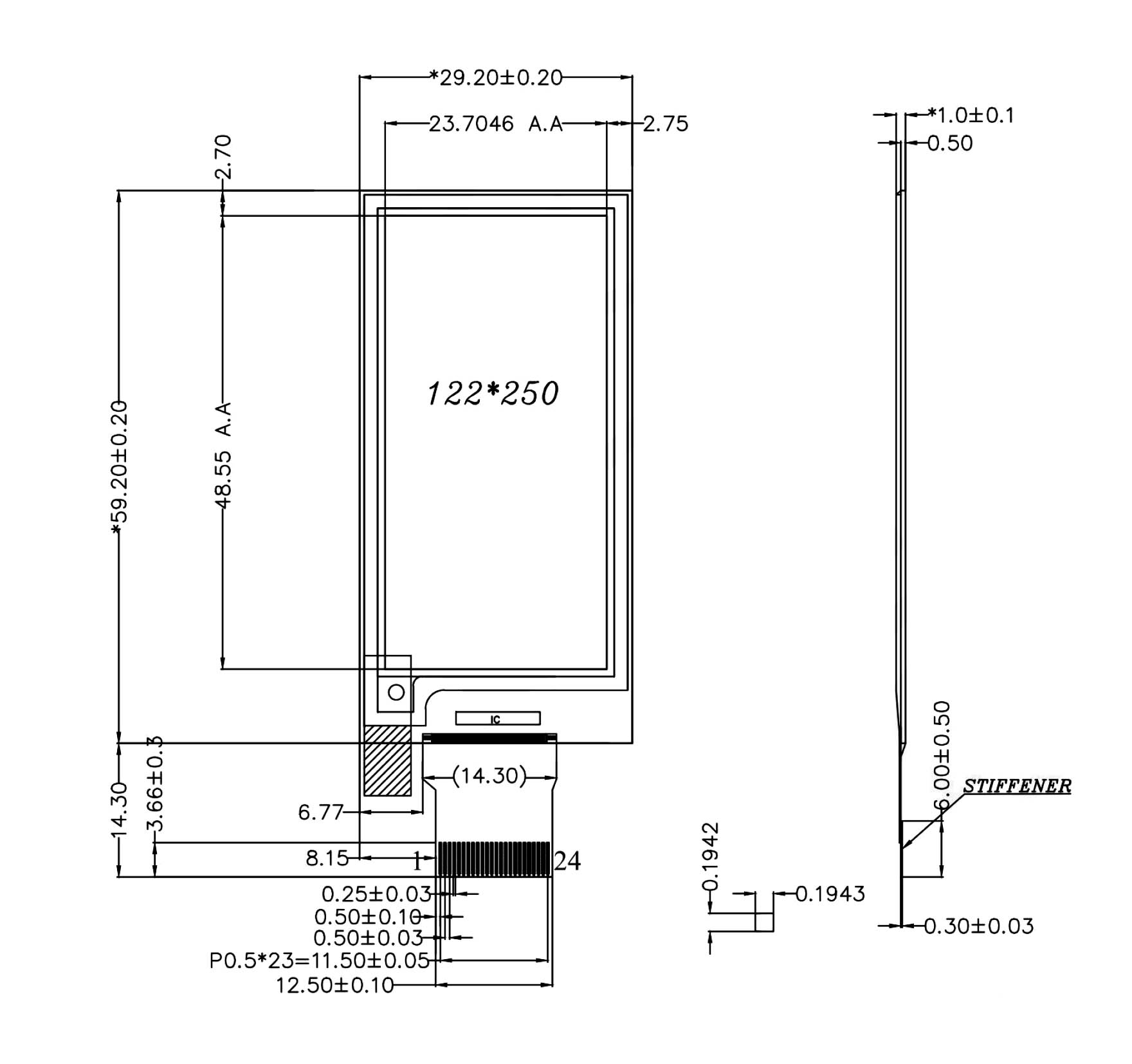

☆ Drawing

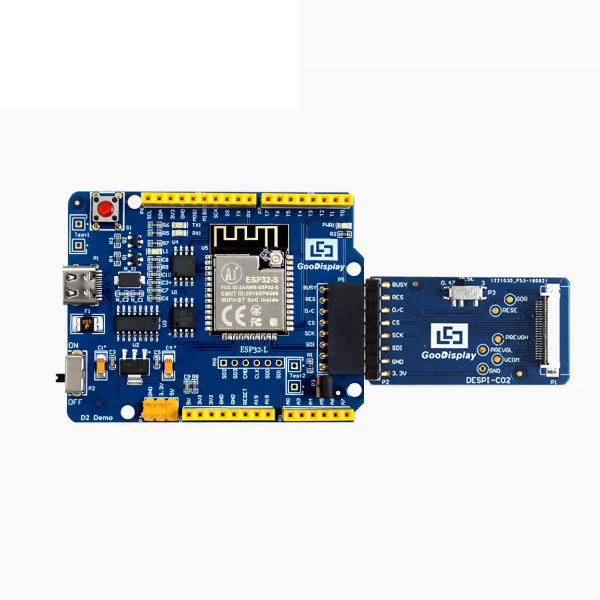

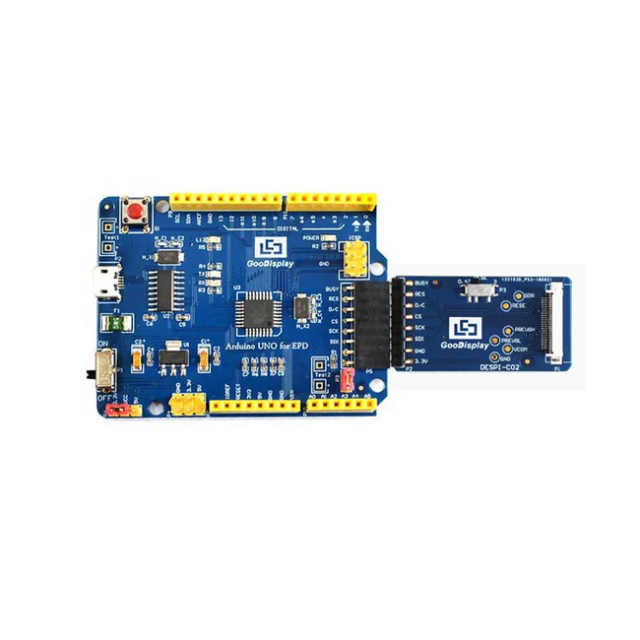

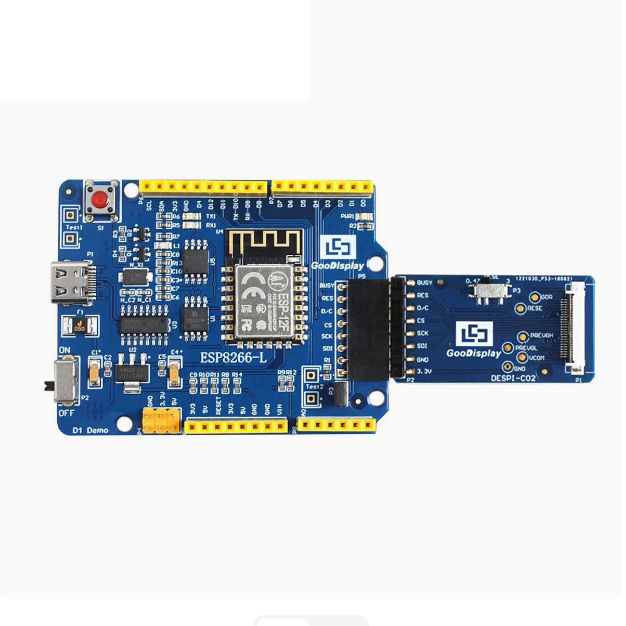

DEVELOPMENT PLATFORM AVAILABEL

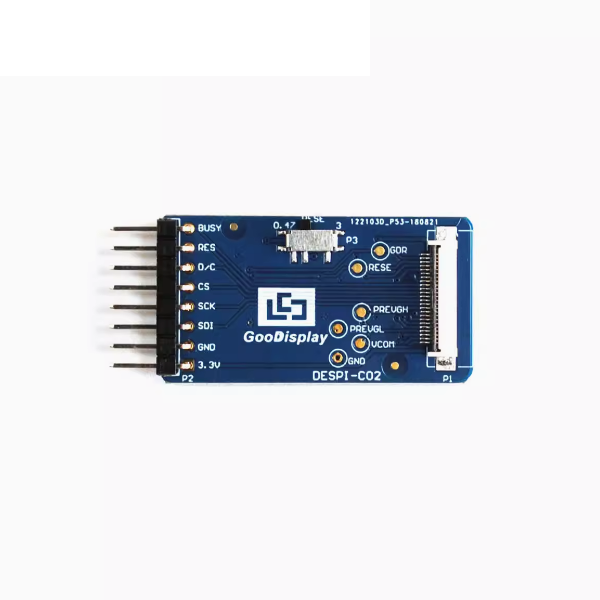

We have this e-paper screen Adapter Board that makes connecting our ePaper simple and fast.
☆ SPECIFICATION DOWNLOAD
The CD data includes:
1)GDEY0213F52 Specification(24.10.22)
2)IC Driver JD79676A
3)Image2LCD Software Bitmap Conversion Instructions V1.1
4)GDEY0213F52 ESP32 Sample Code（24.09.06）
5)GDEY0213F52 STM32 Sample Code(24.09.06)
6)GDEY0213F52 ESP8266 Sample Code(24.09.06)
7)GDEY0213F52 Arduino Sample Code（24.09.06）
☆ Selection Guide
| SIZE |
PART NUMBER |
COLOR |
IC |
RESOLUTION |
ACTIVE SIZE(mm) |
FULL REFRESH TIME (S) |
PARTIAL UPDATE TIME(s) |
FAST UPDATE TIME(s) |
PARTIAL REFRESH |
OPERATING TEMP. |
INTERFACE |
| 0.97'' |
GDEM0097T61 |
black, white |
SSD1680 |
184x88 |
22.26x10.65 |
2 |
0.3 |
|
√ |
0℃~50℃ |
SPI |
| 0.97'' |
GDEM0097F51 |
black, white,yellow,red |
JD79661 |
184x88 |
22.26x10.65 |
16 |
|
12 |
√ |
0℃~40℃ |
SPI |
| 1.54'' |
GDEY0154D67 |
black, white |
SSD1681 |
200x200 |
27x27 |
2 |
0.3 |
|
√ |
0℃~50℃ |
SPI |
| 1.54'' |
GDEM0154F51H |
black, white,yellow,red |
JD79660 |
200x200 |
27x27 |
20 |
|
12 |
√ |
0℃~40℃,SPI |
SPI |
| 2.13'' |
GDEY0213B74 |
black, white |
SSD1680Z |
250x122 |
48.55x23.7046 |
3 |
0.42 |
|
√ |
0℃~50℃ |
SPI |
| 2.13'' |
GDEY0213F52 |
black, white,yellow,red |
JD79676A |
250x122 |
48.55x23.7046 |
16 |
|
11 |
√ |
0℃~40℃ |
SPI |
| 2.66'' |
GDEY0266T90H |
black, white |
SSD1685 |
184x360 |
60.05x30.69 |
2 |
0.3 |
|
√ |
0℃~50℃ |
SPI |
| 2.66'' |
GDEY0266F51 |
black, white,yellow,red |
JD79661 |
184x360 |
60.05x30.69 |
25 |
|
14 |
√ |
0℃~40℃ |
SPI |
| 2.7'' |
GDEY027T91 |
black, white |
SSD1680 |
264x176 |
57.29x38.19 |
3 |
0.3 |
|
√ |
0℃~50℃ |
SPI |
| 2.9'' |
GDEY029T94 |
black, white |
SSD1680 |
296x128 |
66.896x29.056 |
3 |
0.3 |
|
√ |
0℃~50℃ |
SPI |
| 2.9'' |
GDEY029F51H |
black, white,yellow,red |
JD79667 |
384x168 |
67.58x29.57 |
20 |
|
12 |
√ |
0℃~40℃ |
SPI |
| 3.1'' |
GDEQ031T10 |
black, white |
UC8253 |
320x240 |
62.72x47.04 |
3 |
0.5 |
|
√ |
0℃~50℃ |
SPI |
| 3.5'' |
GDEM035T81 |
black, white |
SSD1685 |
384x184 |
79.68x38.18 |
2 |
0.3 |
|
√ |
0℃~50℃ |
SPI |
| 3.5'' |
GDEM035F51 |
black, white,yellow,red |
JD79667AA |
384x184 |
79.68x38.18 |
18 |
|
12 |
√ |
0℃~40℃ |
SPI |
| 3.7'' |
GDEY037T03 |
black, white |
UC8253 |
416x240 |
81.54x47.04 |
3 |
0.2 |
|
√ |
0℃~50℃ |
SPI |
| 3.7'' |
GDEM037F51 |
black, white,yellow,red |
IST7163 |
416x240 |
81.54x47.04 |
20 |
|
12 |
√ |
0℃~40℃ |
SPI |
| 3.97'' |
GDEM0397T81P |
black, white |
SSD1677 |
800x480 |
86.40x51.84 |
3 |
0.3 |
|
√ |
0℃~50℃ |
SPI |
| 3.97'' |
GDEM0397F81 |
black, white,yellow,red |
SSD2677 |
800x480 |
86.40x51.84 |
21 |
|
12 |
√ |
0℃~40℃ |
SPI |
| 4.2'' |
GDEY042T81 |
black, white |
SSD1683 |
400x300 |
84.8x63.6 |
3 |
0.2 |
|
√ |
0℃~50℃ |
SPI |
| 4.2'' |
GDEM042F52 |
black, white,yellow,red |
JD79668 |
400x300 |
84.8x63.6 |
20 |
|
12 |
√ |
0℃~40℃ |
SPI |
| 4.26'' |
GDEQ0426T82 |
black, white |
SSD1677 |
800*480 |
92.8x55.68 |
3 |
0.42 |
|
√ |
0℃~50℃ |
SPI |
| 5.79'' |
GDEY0579T93 |
black, white |
SSD1683 |
792x272 |
139.00×47.74 |
3 |
0.3 |
|
√ |
0℃~50℃ |
SPI |
| 5.79'' |
GDEY0579F51 |
black, white,yellow,red |
HX8717*2 |
792*272 |
139.00×47.74 |
26 |
|
13 |
√ |
0℃~40℃ |
SPI |
| 5.83'' |
GDEY0583T81 |
black, white |
UC8179 |
648x480 |
118.78x88.22 |
3 |
0.3 |
|
√ |
0℃~50℃ |
SPI |
| 7.5'' |
GDEY075T7 |
black, white |
UC8179 |
800x480 |
163.2x97.72 |
3 |
0.3 |
|
√ |
0℃~50℃ |
SPI |
| 7.5'' |
GDEM075F52 |
black, white,yellow,red |
JD79665AA |
800x480 |
163.2x97.92 |
22 |
|
12 |
√ |
0℃~40℃ |
SPI |
| 10.2'' |
GDEM102T91 |
black, white |
SSD1677 |
960x640 |
215.52x143.68 |
4 |
0.42 |
|
√ |
0℃~50℃ |
SPI |
| 10.2'' |
GDEM102F91 |
black, white,yellow,red |
SSD2677 |
960x640 |
215.52x143.68 |
20 |
|
12 |
√ |
0℃~40℃ |
SPI |
| 10.85'' |
GDEM1085T51 |
black, white |
JD79686AB |
1360x480 |
259.76×91.68 |
4 |
0.4 |
|
√ |
0℃~50℃ |
SPI |
| 10.85'' |
GDEM1085F51 |
black, white,yellow,red |
JD79665AA |
1360x480 |
259.76×91.68 |
20 |
|
12 |
√ |
0℃~40℃ |
SPI |
| 11.6'' |
GDEY116T91 |
black, white |
SSD1677 |
960x640 |
244.51x163.01 |
5 |
0.5 |
|
√ |
0℃~50℃ |
SPI |
| 11.6'' |
GDEY116F51 |
black, white,yellow,red |
SSD2677 |
960x640 |
244.51×163.01 |
20 |
|
16 |
√ |
0℃~40℃ |
SPI |
| 13.3'' |
GDEM133T91 |
black, white |
SSD1677 |
960x680 |
275.52x195.16 |
4 |
0.4 |
|
√ |
0℃~50℃ |
SPI |
