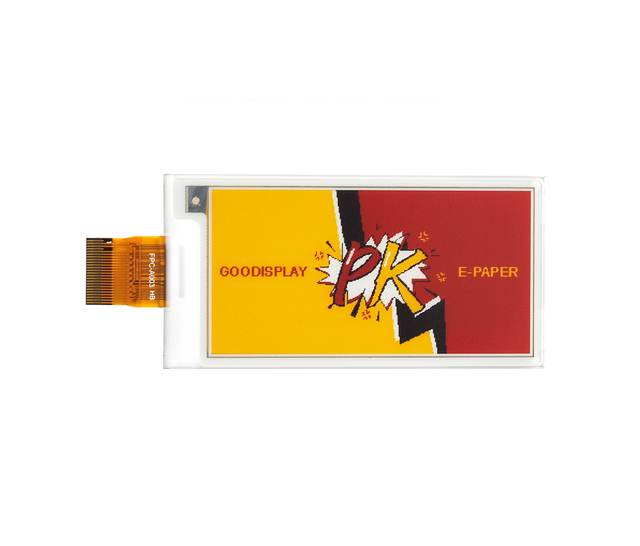

E-paper display 2.66 inch color E Ink display 296x152
ePaper Display's Basic function
- Refresh Method: Full refresh for 25s (tested at 25°C ambient temperature)
- Display direction: Horizontal or vertical
ePaper Display's Basic parameters
- Product size: 2.66 inch
- Resolution: 296x152
- PPI: 125.09
- Color: Black, White, Yellow and Red
- Driver IC: JD79661
- Interface: SPI
- Operating voltage: 3.3V
- Operating temperature: 0-40 ℃
- Optional customized: NFC driver board
ePaper Display's Main features
- Display feature: Bistable display (retains the current content after a power outage)
- Display mode: Pure reflection
- Viewing angle: Wide viewing angle exceeding 170 degrees
- Surface Treatment: Hard-coated for anti-glare effects
- Energy conservation: No power consumption when not refreshing the screen
- Eye Protection: No blue light emission, zero radiation
PARAMETERS
|
PART NUMBER
|
GDEY0266F51
|
|
TYPE
|
Dot Matrix
|
|
SIZE
|
2.66 inch
|
|
IC
|
JD79661
|
|
RESOLUTION
|
296x152
|
| PPI |
125.09 |
|
OUTLINE SIZE(mm)
|
71.82x36.30x1.0
|
|
ACTIVE SIZE(mm)
|
60.088x30.704
|
|
PIXEL PITCH(mm)
|
0.203x0.202
|
|
OPERATING TEMP.
|
0℃~40℃
|
|
STORAGE TEMP.
|
-25℃~60℃
|
|
CONNECTOR
|
24 Pin FPC
|
|
COLOR
|
Black, White, Red, Yellow
|
|
INTERFACE
|
SPI
|
|
FULL REFRESH(s)
|
25
|
|
POWER CONSUMPTION OF THE REFRESH(mW)
|
9.9
|
|
STANDBY POWER CONSUMPTION (mW)
|
0.003
|

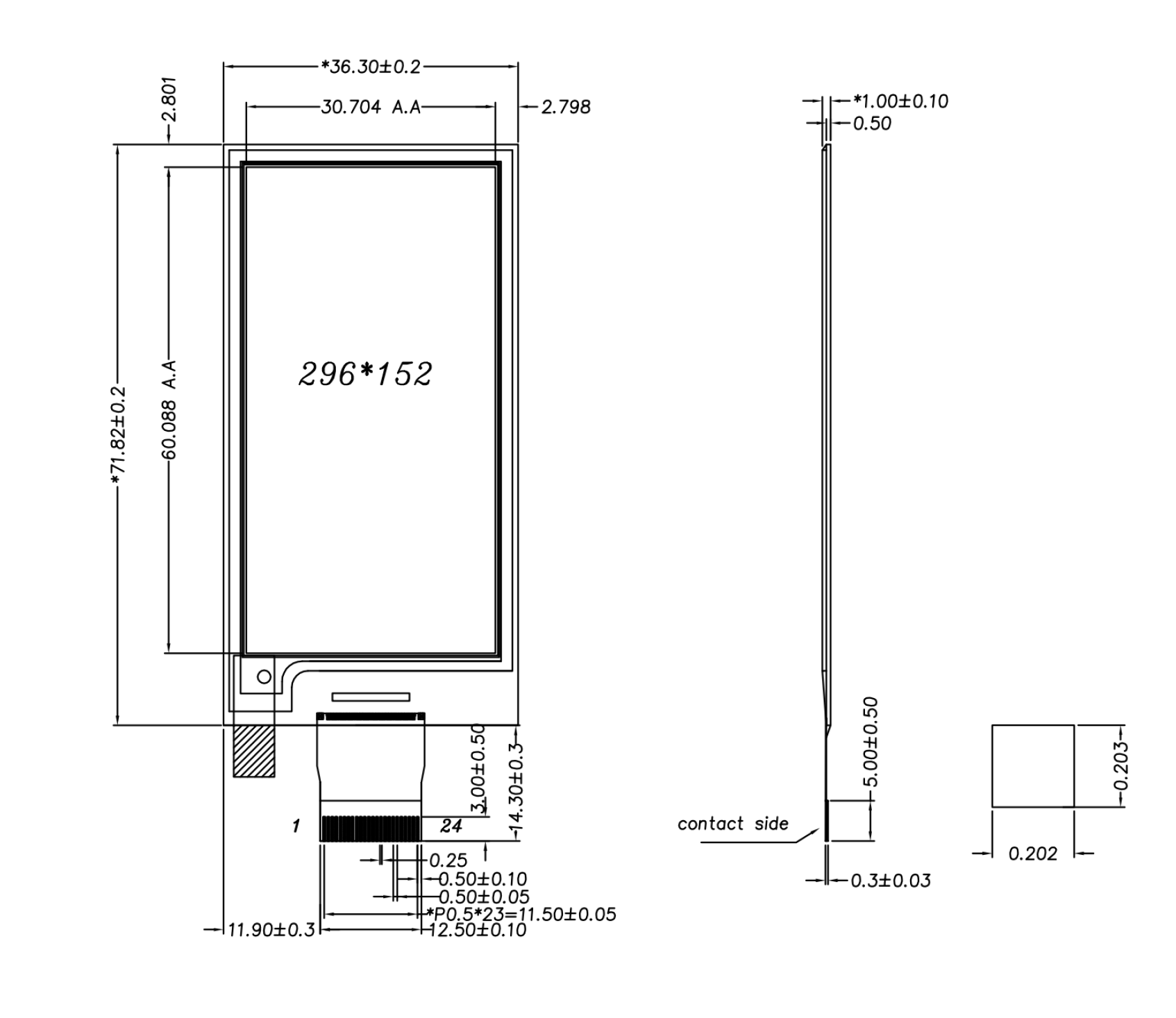

DRAWING
DEVELOPMENT PLATFORM AVAILABEL

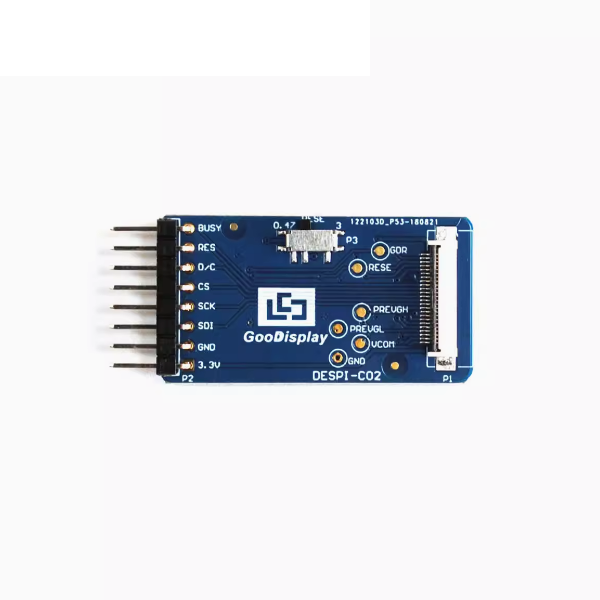

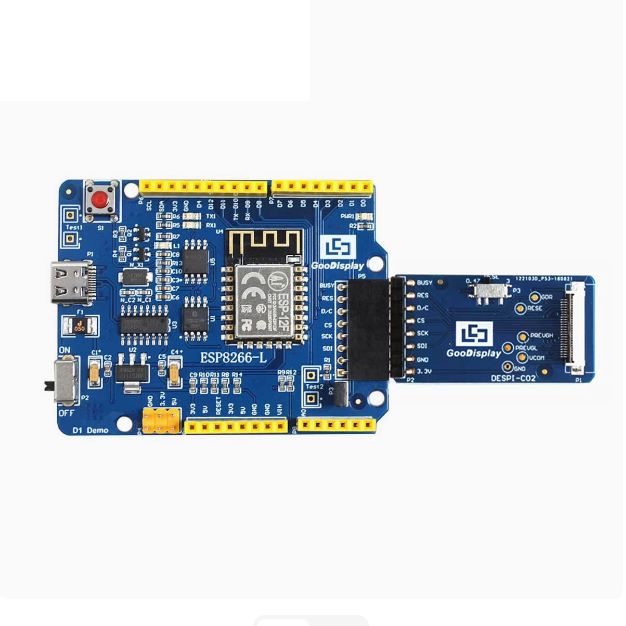

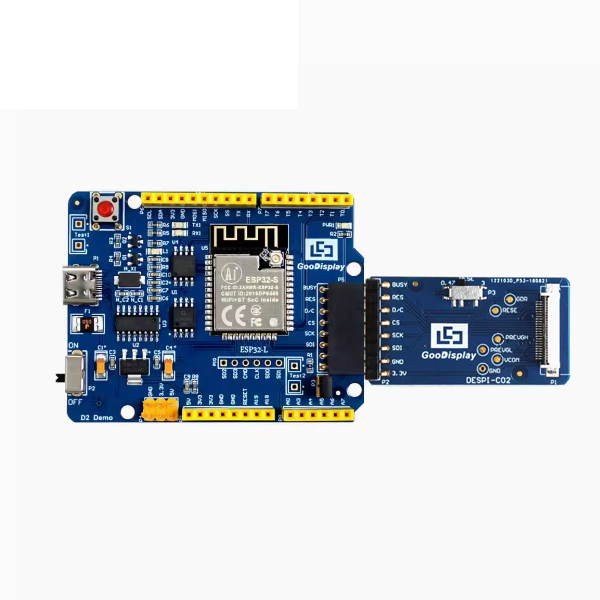

We have this e-paper screen Adapter Board that makes connecting our ePaper simple and fast.
☆ SPECIFICATION DOWNLOAD
The CD data includes:
1)GDEY0266F51 Specification(24.10.24)
2)JD79661 Driver IC Datasheet
3)GDEY0266F51 STM32 Sample Code
4)GDEY0266F51-Arduino Sample Code
5)GDEY0266F51 ESP32 Sample Code
6)GDEY0266F51-ESP8266 Sample code
☆ Selection Guide
