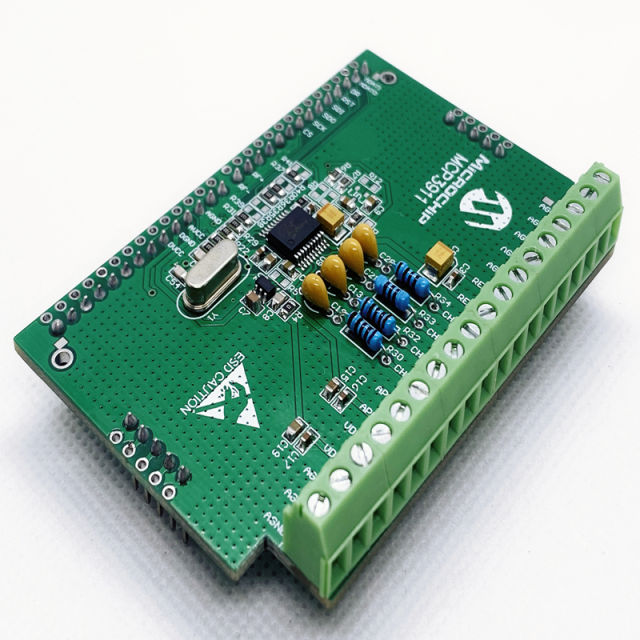

MPC3911 MCP3914 module 24 bit ADC AD module high-precision ADC acquisition data acquisition card

Name: MPC3911 MCP3914 module 24 bit ADC AD module high-precision ADC acquisition data acquisition card
Brand: MicroHello
SKU: MCP391X-001
Price: 24 USD
Availability: InStock

SKU: MCP391X-001

0.0 (0)

0 Sold

$24.00 ~~$49.00~~

MPC3911 MCP3914 module 24 bit ADC AD module high-precision ADC acquisition data acquisition card

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

Basic Parameters
Resolution: 24 bits
Number of channels: 2 differential
Maximum sampling rate: 125ksps (synchronous sampling)
Differential input voltage range: ± 0.5VREF/GAIN
Programmable gain: 1-32

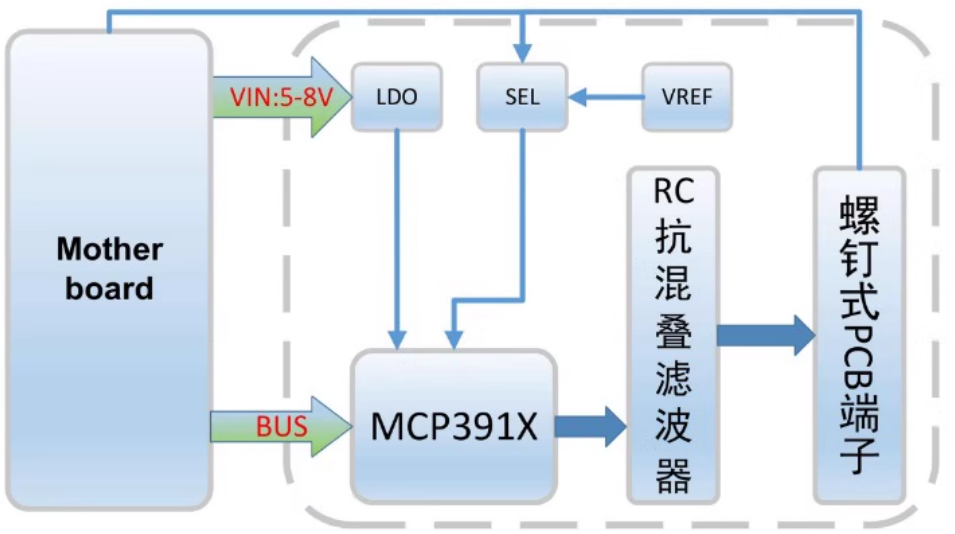

Block Diagram

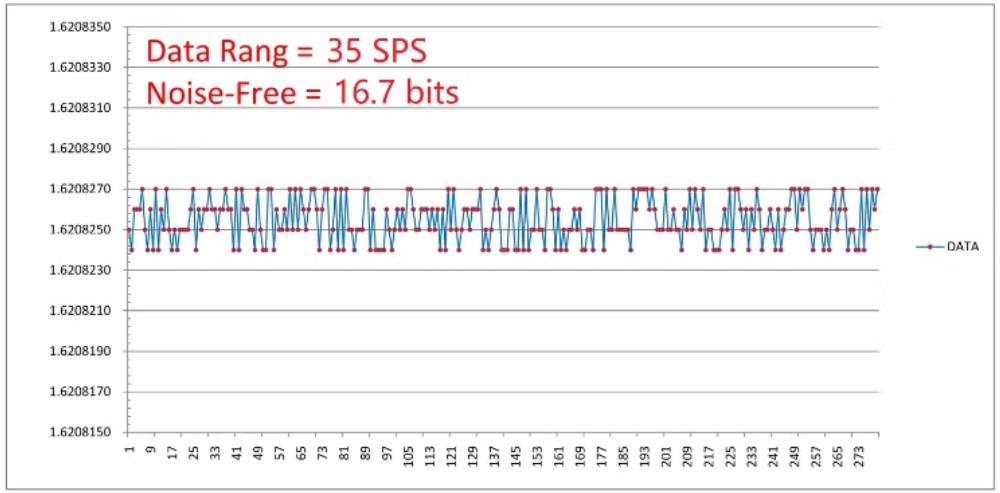

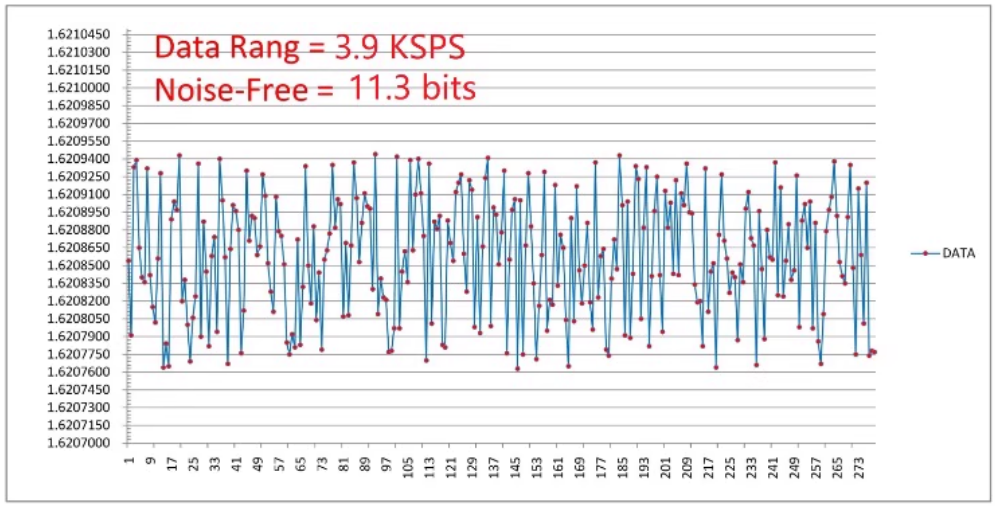

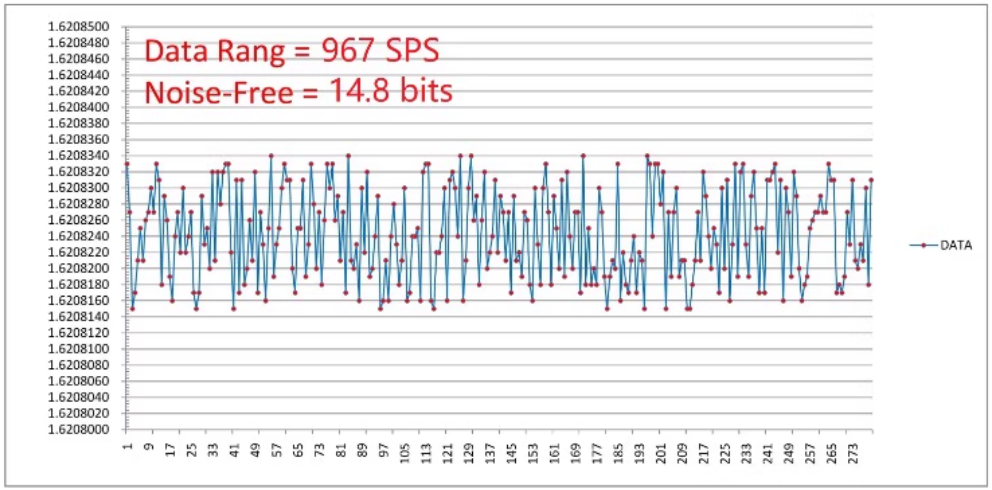

Performance Testing

Applications

About its Motherboard
We have designed a motherboard based on STM32 microcontroller, and you can test and develop it by installing these ADC modules on this motherboard. In order to accelerate users' learning and development speed, we provide a sample program for ADC data collection. After placing an order, please contact us via email to request this routine and other related information.
