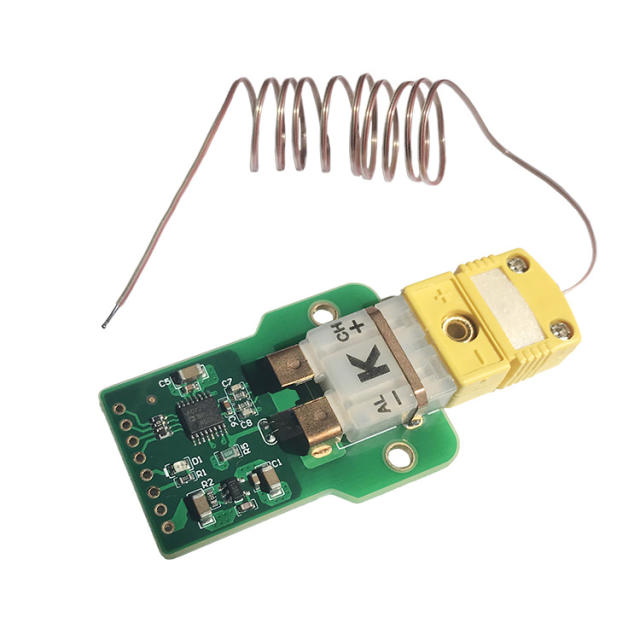

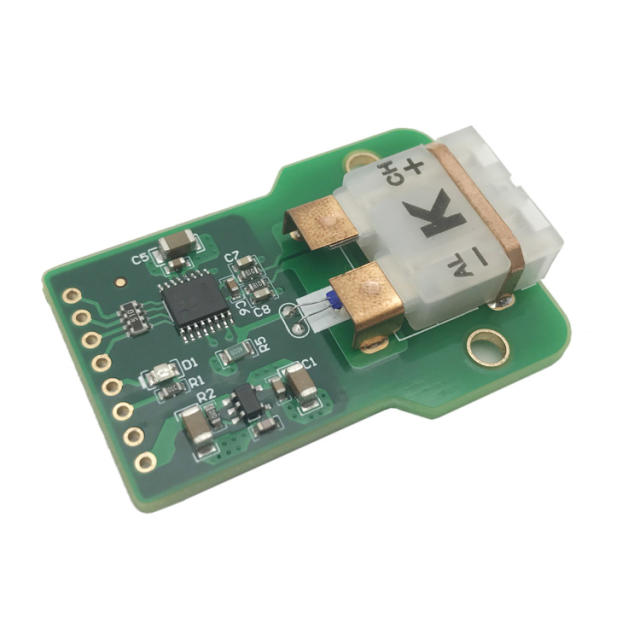

AD7793 high-precision K thermocouple temperature measurement acquisition module PT100 cold junction compensation

Name: AD7793 high-precision K thermocouple temperature measurement acquisition module PT100 cold junction compensation
Brand: MicroHello
SKU: AD7793-001
Price: 25 USD
Availability: InStock

SKU: AD7793-001

0.0 (0)

0 Sold

$25.00 ~~$49.00~~

AD7793 high-precision K thermocouple temperature measurement acquisition module PT100 cold junction compensation

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

Parameters
A temperature measurement system based on AD7793, recommended document based on ADI CN0206_cn.
Using PT100 as cold junction compensation and 4-layer PCB cross temperature equalization wiring.
SPI interface, supports SPI multiplexing.
The highest thermodynamic potential at 32 times gain is 36.5mV, corresponding to a K thermocouple scale of 850 degrees Celsius.
Provide simulated SPI reference program (STM32F10X)
