PGA411-Q1 12Bit Rotary Transformer Encoder RDC Angular Velocity Acquisition Module

SKU: PGA411-Q1-0001
0.0 (0)
1 Sold
$66.00 $99.00
PGA411-Q1 12Bit Rotary Transformer Encoder RDC Angular Velocity Acquisition Module
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
  • PGA411-Q1 12Bit Rotary Transformer Encoder RDC Angular Velocity Acquisition Module
  • Description
Parameters
Complete application scheme for rotary transformer (encoder)

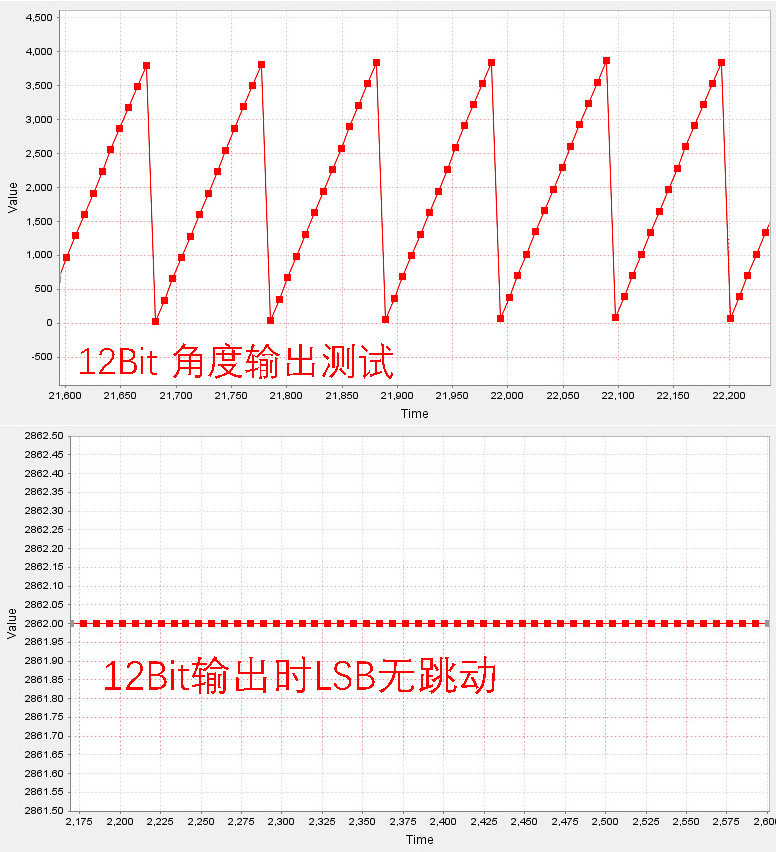

Supports 12Bit/10Bit accuracy per electrical angle.
High integration resolver application scheme, controllable excitation voltage and frequency, flexible adaptation to different sensors.

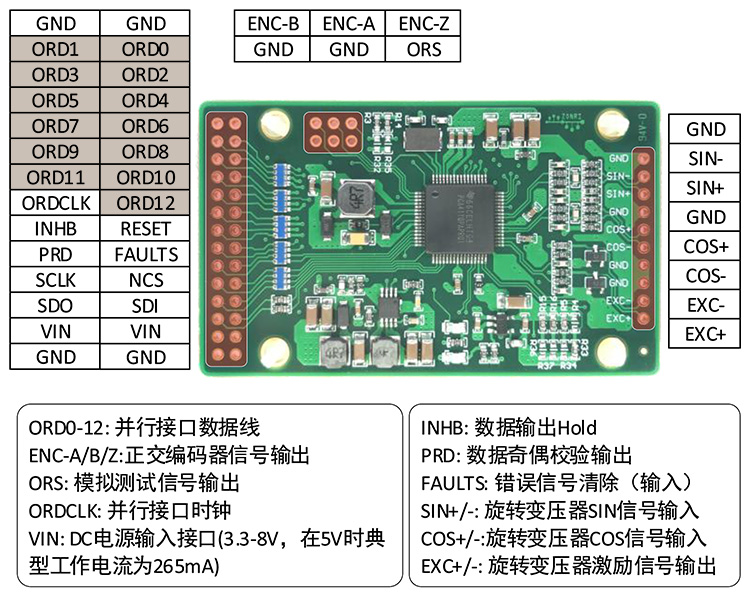

Supports angle output and speed output, and can read data through parallel interface or SPI serial interface.
CRC verification for data communication.
3.3-8V wide power supply (typical operating current is 265mA when powered by 5V).
Provide reference programs.
