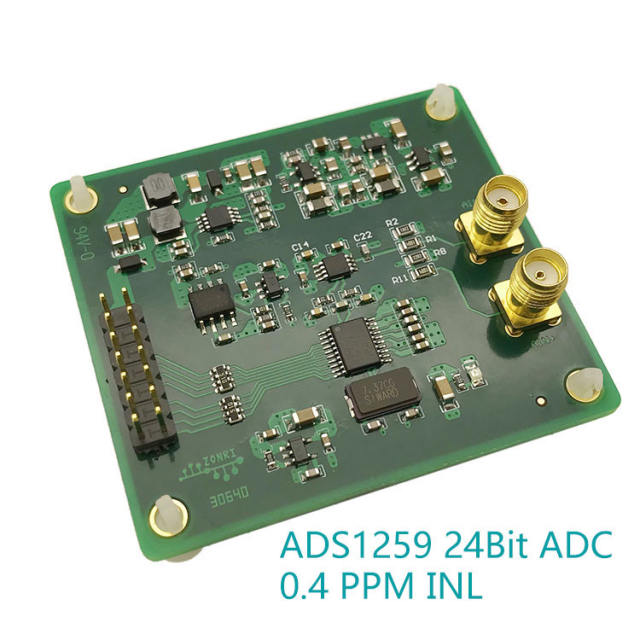

ADS1259 ADC module, high-performance 24 bit ADC, high-precision data acquisition module, wide power supply, wide input differential

Name: ADS1259 ADC module, high-performance 24 bit ADC, high-precision data acquisition module, wide power supply, wide input differential
Brand: MicroHello
SKU: ADS1259-001
Price: 38 USD
Availability: InStock

SKU: ADS1259-001

0.0 (0)

0 Sold

$38.00 ~~$69.00~~

ADS1259 ADC module, high-performance 24 bit ADC, high-precision data acquisition module, wide power supply, wide input differential

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

Parameters
ADS1259 has excellent INL (integral nonlinearity), reaching 0.4ppm.

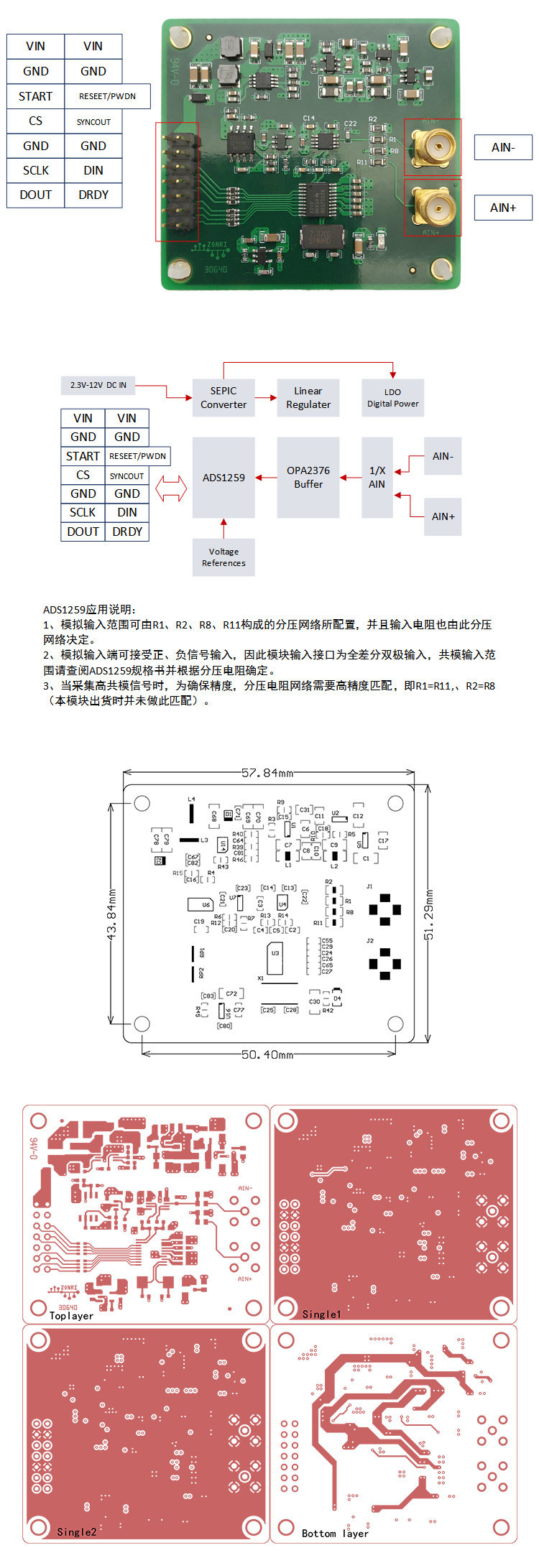

Onboard SEPIC DC-DC converter, supporting wide power supply voltage (2.3V-12V DC)
The digital interface level is 3.3V.
Onboard low-temperature ticket benchmark source.
ADS1259 adopts ± 2.5V dual power rail power supply.
The frequency of the onboard crystal is 7.37280MHz.
The analog signal input interface is an SMA connector.
Supports full differential wide range analog input, with a default configured input range of ± 12.5V.
