High precision strain signal amplification module, high bandwidth, high common mode suppression strain transmitter, 10V excitation source, 50Hz/60Hz CMRR>130db

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

Parameters

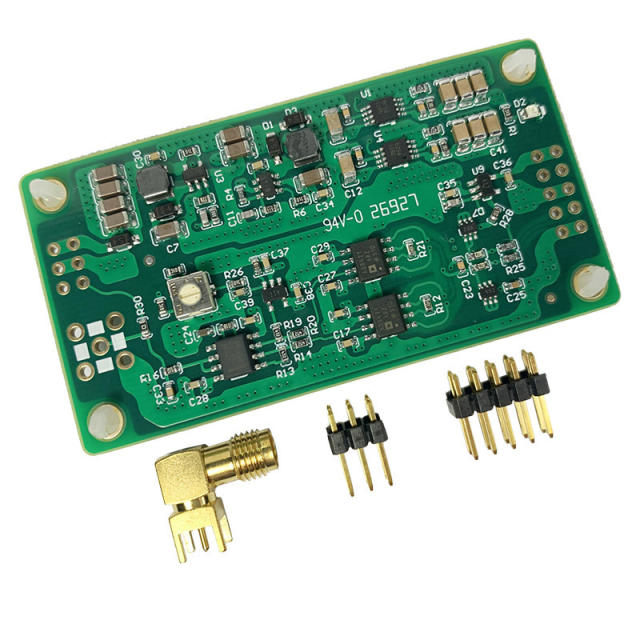

High performance strain sensor signal amplification module
Fixed gain Gain=101V/V

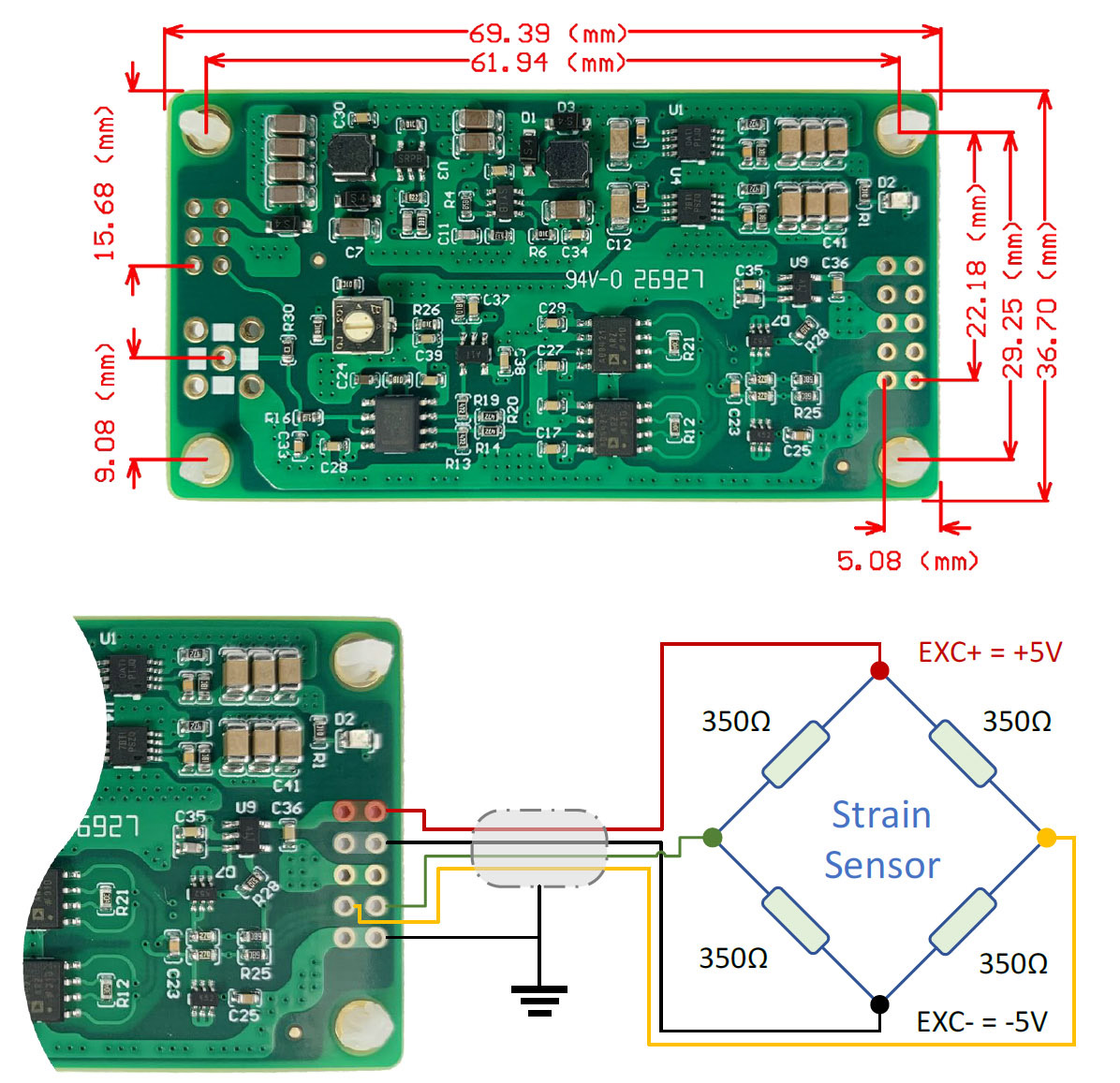

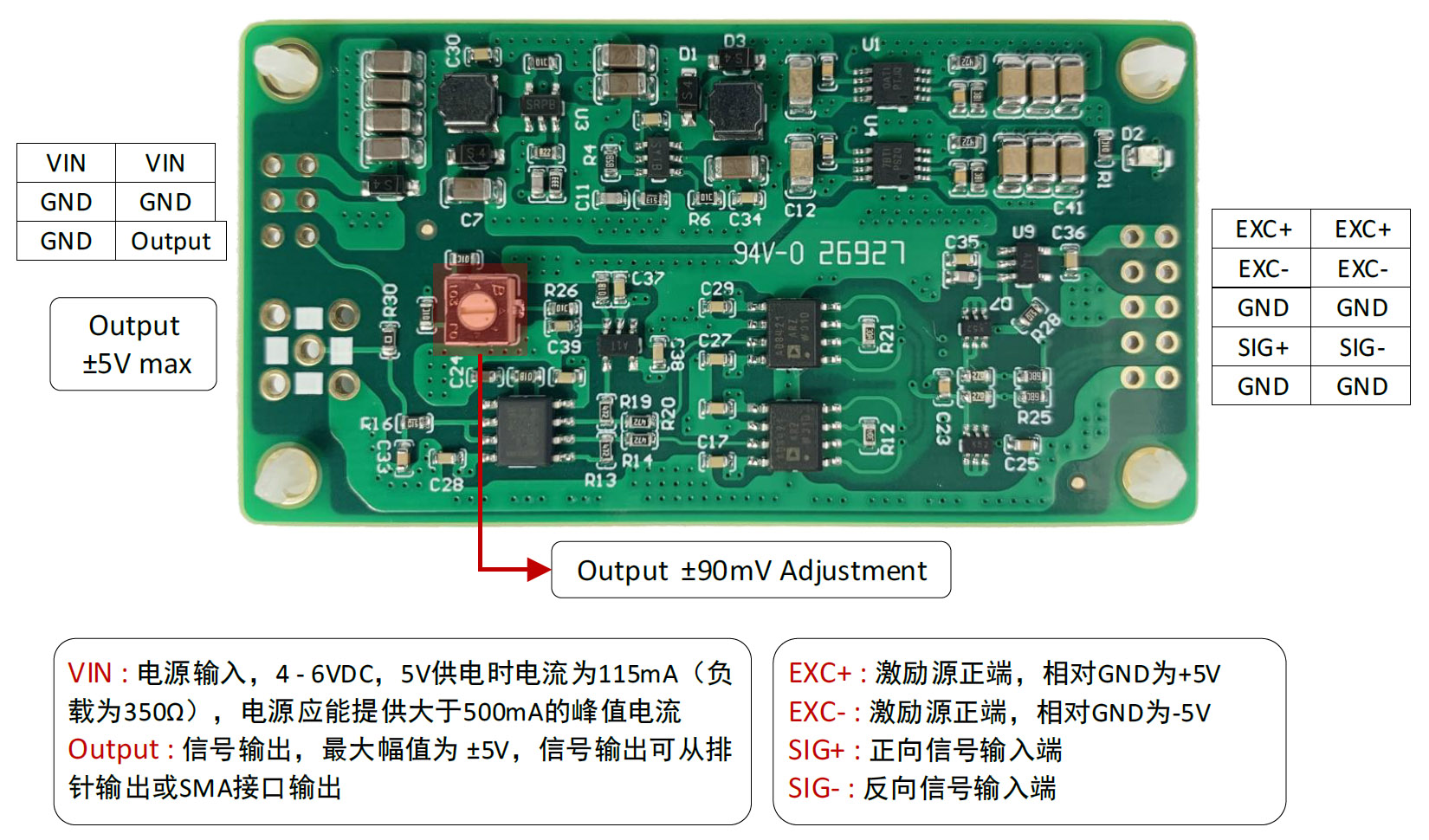

4-6Vdc single power supply, with a 350 Ω load, 5VDC power supply current of 115mA, power supply
At least able to provide peak current greater than 500mA
Excellent noise performance: Equivalent to a peak to peak value of 0.34uV at 1KHz at the input end
High common mode rejection ratio, 50/60Hz>127DB, 1KHz>98DB

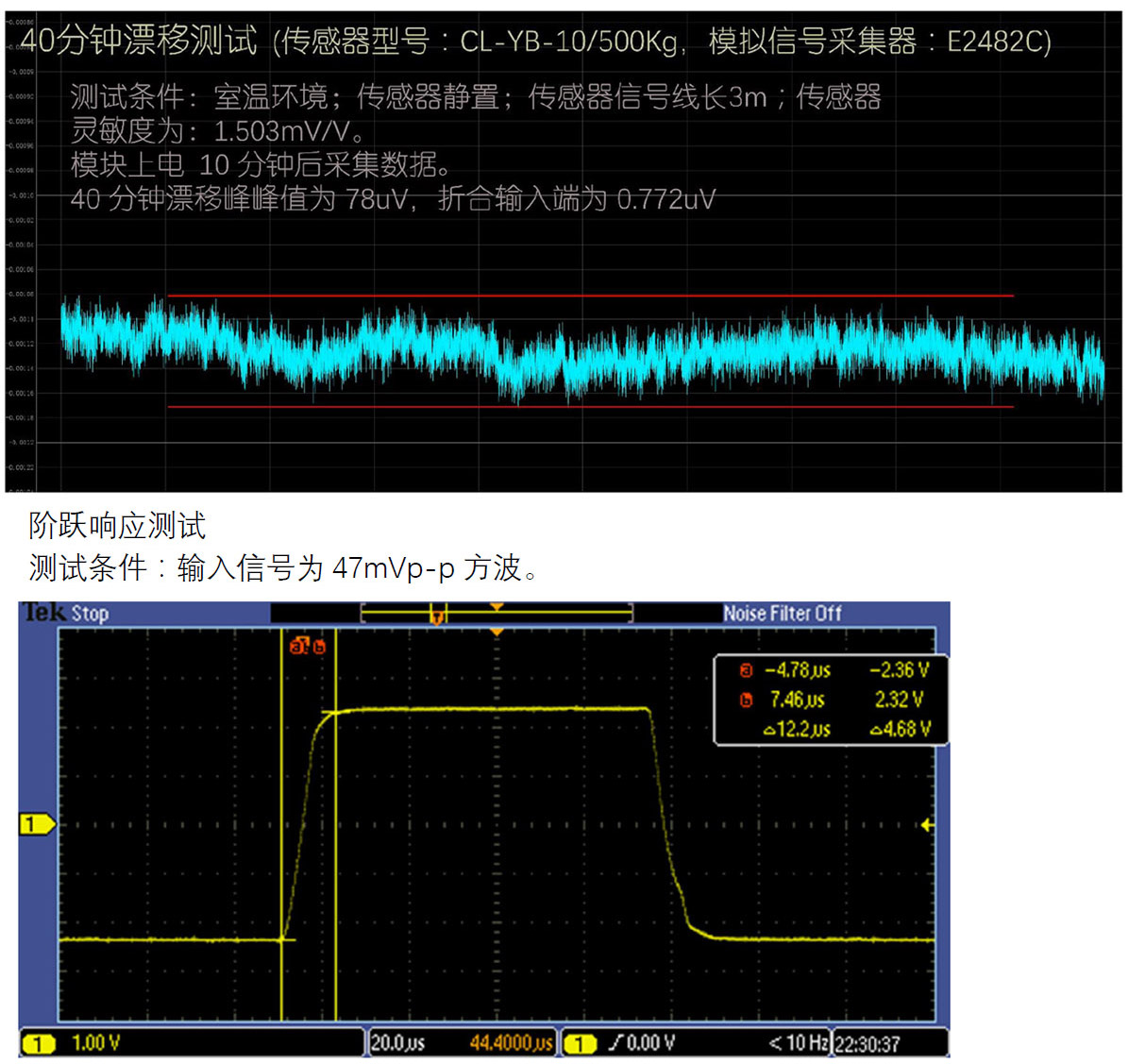

-3DB bandwidth: 30KHz; Typical value of step signal establishment time 12.5uS (-99% -+99%)
Gain stability<65 ppm/° C
Suitable for signal conditioning of strain type impact sensors
