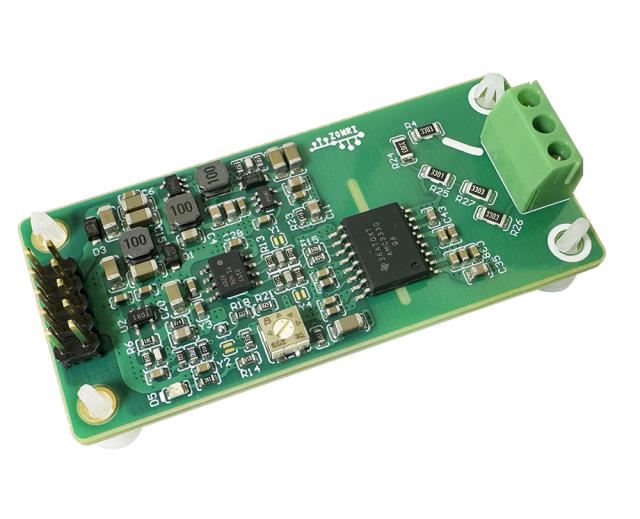

AMC3330 High Performance Voltage Signal Isolation Module/400V Input/Single Bipolar Output/Adjustable Zero Point

Name: AMC3330 High Performance Voltage Signal Isolation Module/400V Input/Single Bipolar Output/Adjustable Zero Point
Brand: MicroHello
SKU: AMC3330-0001
Price: 37 USD
Availability: InStock

SKU: AMC3330-0001

0.0 (0)

0 Sold

$37.00 ~~$69.00~~

AMC3330 High Performance Voltage Signal Isolation Module/400V Input/Single Bipolar Output/Adjustable Zero Point

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

Parameters

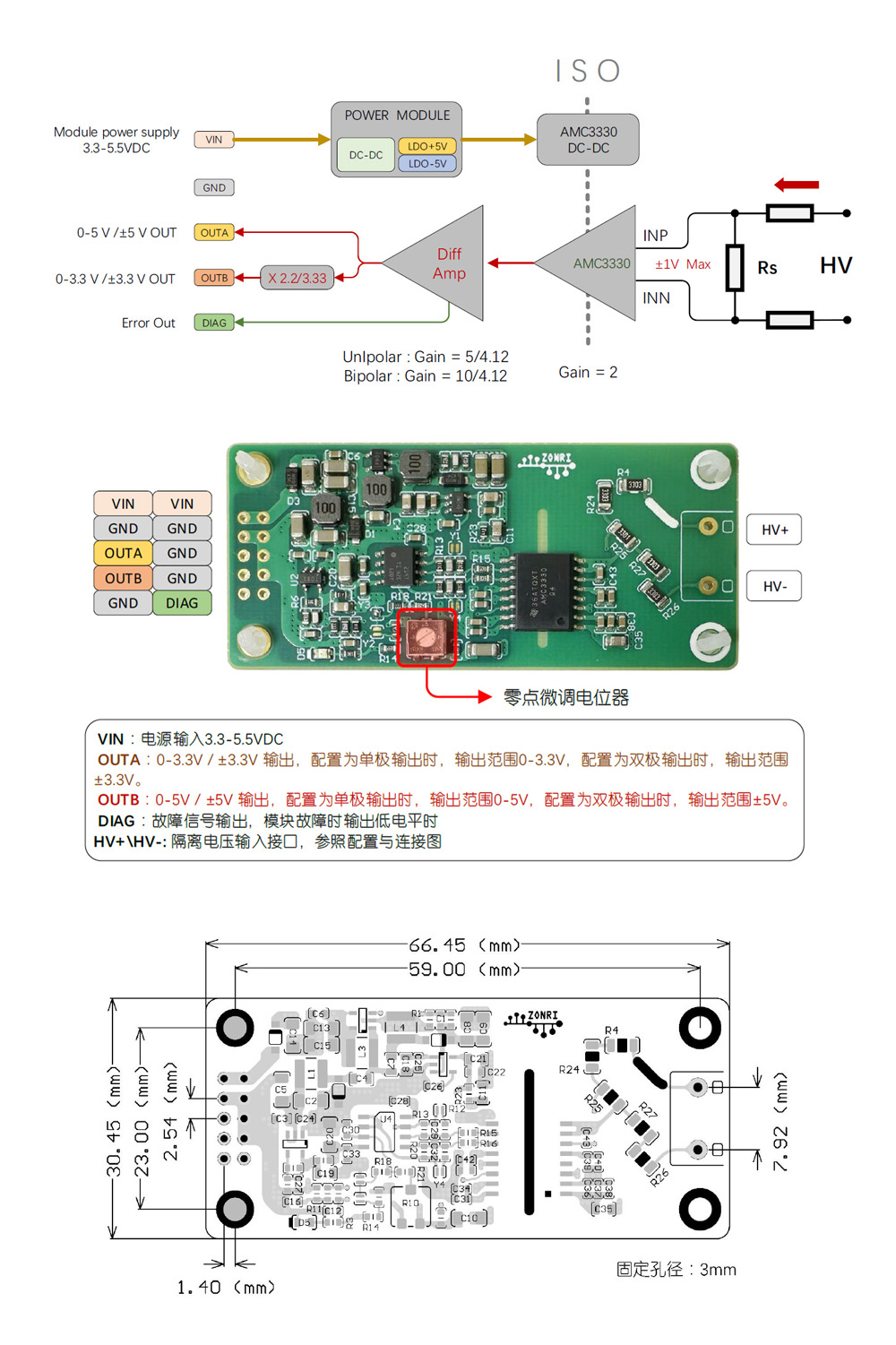

High performance voltage signal isolation module
Single power supply, 3.3-5.5Vdc, typical supply current of 60mA when powered by 5V
Adjustable zero point
Supports single pole 0-5V, 0-3.3V output
Supports bipolar ± 5 V and ± 3.3 V outputs
Isolation voltage 4250VRMS, low parasitic capacitance
Non linearity: ± 0.02%
Default configuration is bipolar output, ± 400V input range
