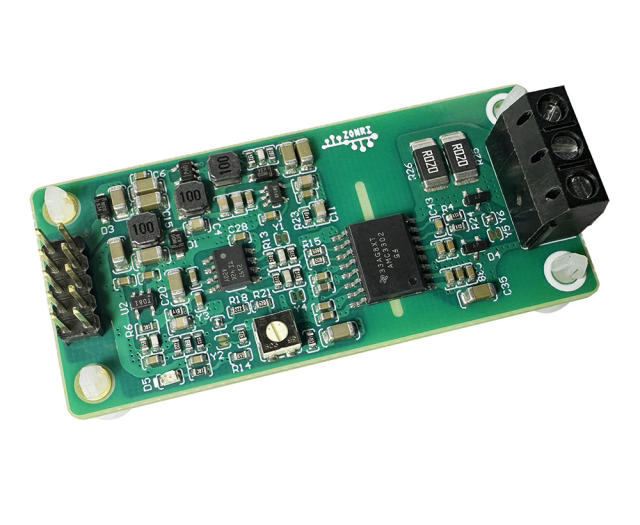

AMC3302 high-performance current isolation module/single and bipolar output/external current sensing resistor

Name: AMC3302 high-performance current isolation module/single and bipolar output/external current sensing resistor
Brand: MicroHello
SKU: AMC3302-0001
Price: 36.5 USD
Availability: InStock

SKU: AMC3302-0001

0.0 (0)

0 Sold

$36.50 ~~$59.00~~

AMC3302 high-performance current isolation module/single and bipolar output/external current sensing resistor

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

Parameters

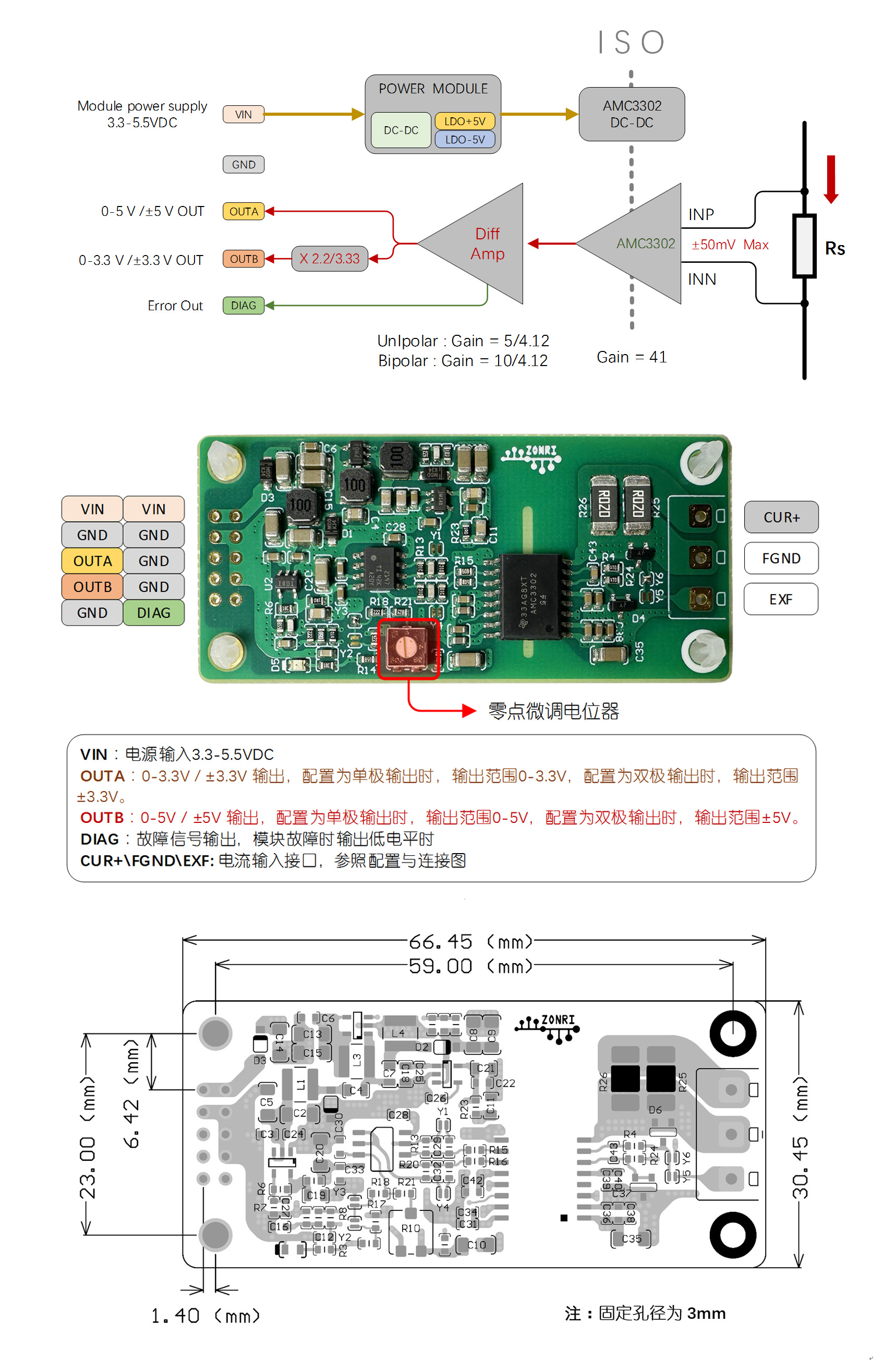

High performance current isolation module
Single power supply, 3.3-5.5Vdc, typical supply current of 60mA when powered by 5V

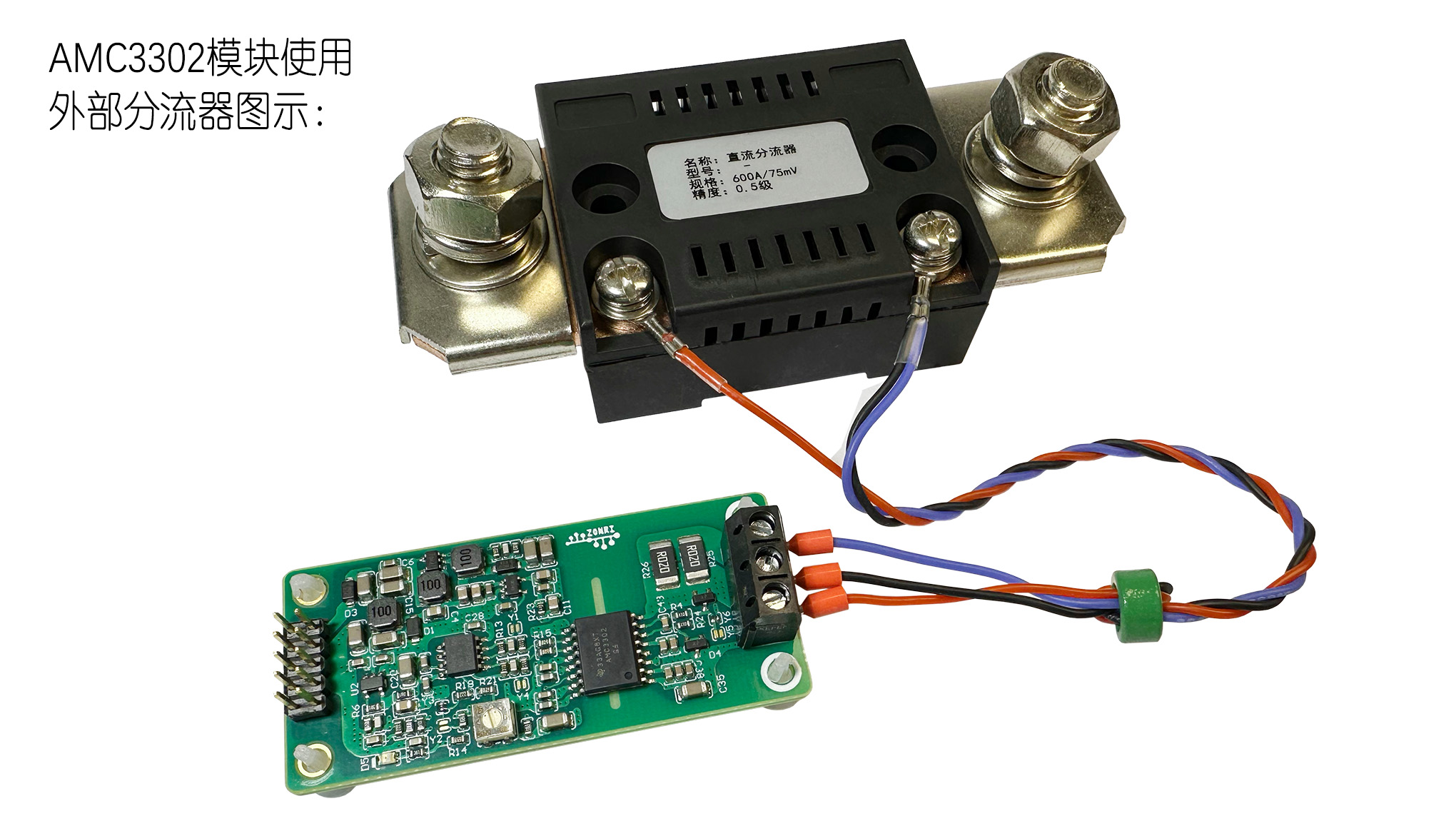

Support internal or external current sensing resistors
Supports single pole 0-5V, 0-3.3V output
Supports bipolar ± 5 V and ± 3.3 V outputs
Isolation voltage 4250VRMS, low parasitic capacitance
Non linearity: ± 0.04%
Maximum voltage drop of AMC3302 current sensing resistor: ± 50mV
The default configuration is bipolar output, using on-board current sensing resistors
//////////////////////////////////////////////////////////////////////////////////////
Question: Is the connector soldered?
Answer: The connector is not soldered.
Question: What is the input current range?
Answer: The current sensing resistor on the board is 0.01R, and the input current range is ± 5A. When using an external current sensing resistor, it is determined by the current sensing resistor.
