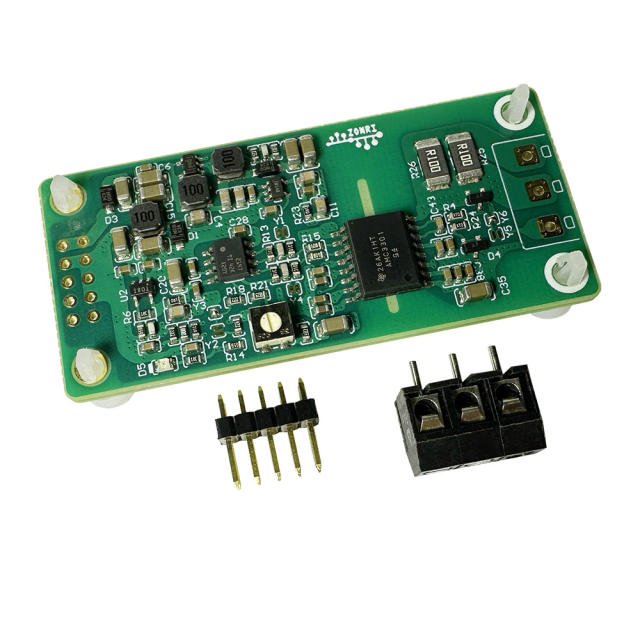

AMC3301 high-performance current isolation module single and bipolar output external current sensing resistor

Name: AMC3301 high-performance current isolation module single and bipolar output external current sensing resistor
Brand: MicroHello
SKU: AMC3301-0001
Price: 37 USD
Availability: InStock

SKU: AMC3301-0001

0.0 (0)

0 Sold

$37.00 ~~$69.00~~

AMC3301 high-performance current isolation module single and bipolar output external current sensing resistor

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

Parameters

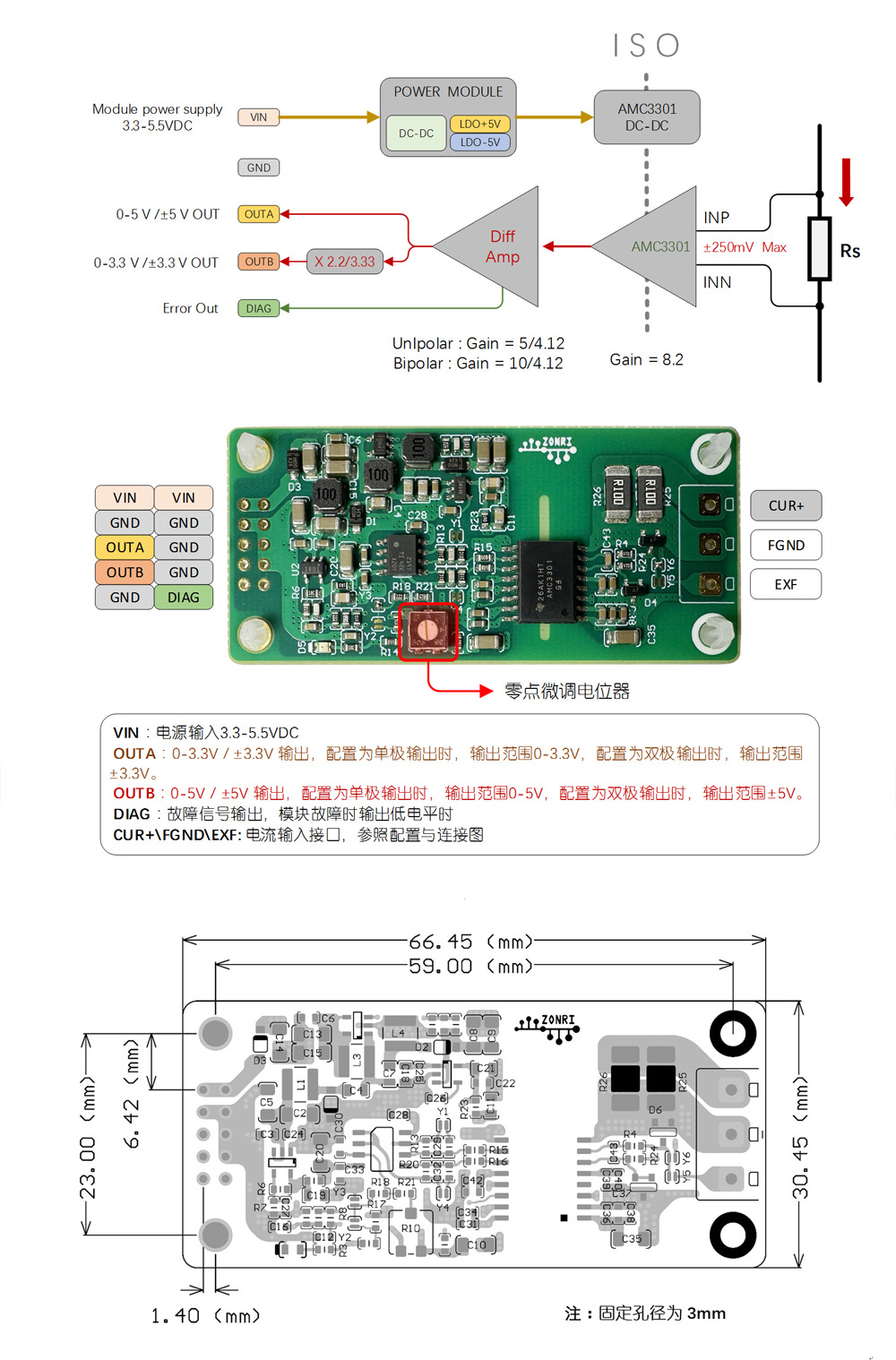

High performance current isolation module
Single power supply, 3.3-5.5Vdc, typical supply current of 60mA when powered by 5V
Support internal or external current sensing resistors
Supports single pole 0-5V, 0-3.3V output
Supports bipolar ± 5 V and ± 3.3 V outputs
Isolation voltage 4250VRMS, low parasitic capacitance
Non linearity: ± 0.04%
Maximum voltage drop of AMC3301 current sensing resistor: ± 250mV
The default configuration is bipolar output, using on-board current sensing resistors
