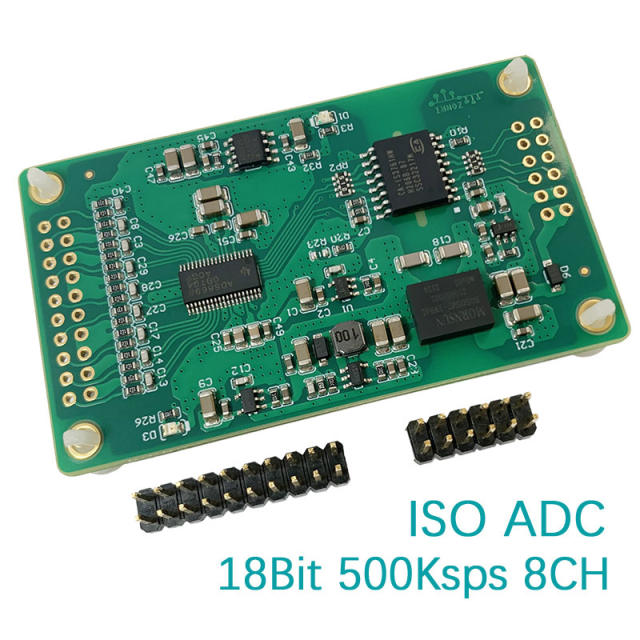

ADS8698 ADC module 18 bit 500Ksps 8-channel isolated SAR

Name: ADS8698 ADC module 18 bit 500Ksps 8-channel isolated SAR
Brand: MicroHello
SKU: ADS8698-001
Price: 65 USD
Availability: InStock

SKU: ADS8698-001

0.0 (0)

1 Sold

$65.00 ~~$99.00~~

ADS8698 ADC module 18 bit 500Ksps 8-channel isolated SAR

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

Parameters

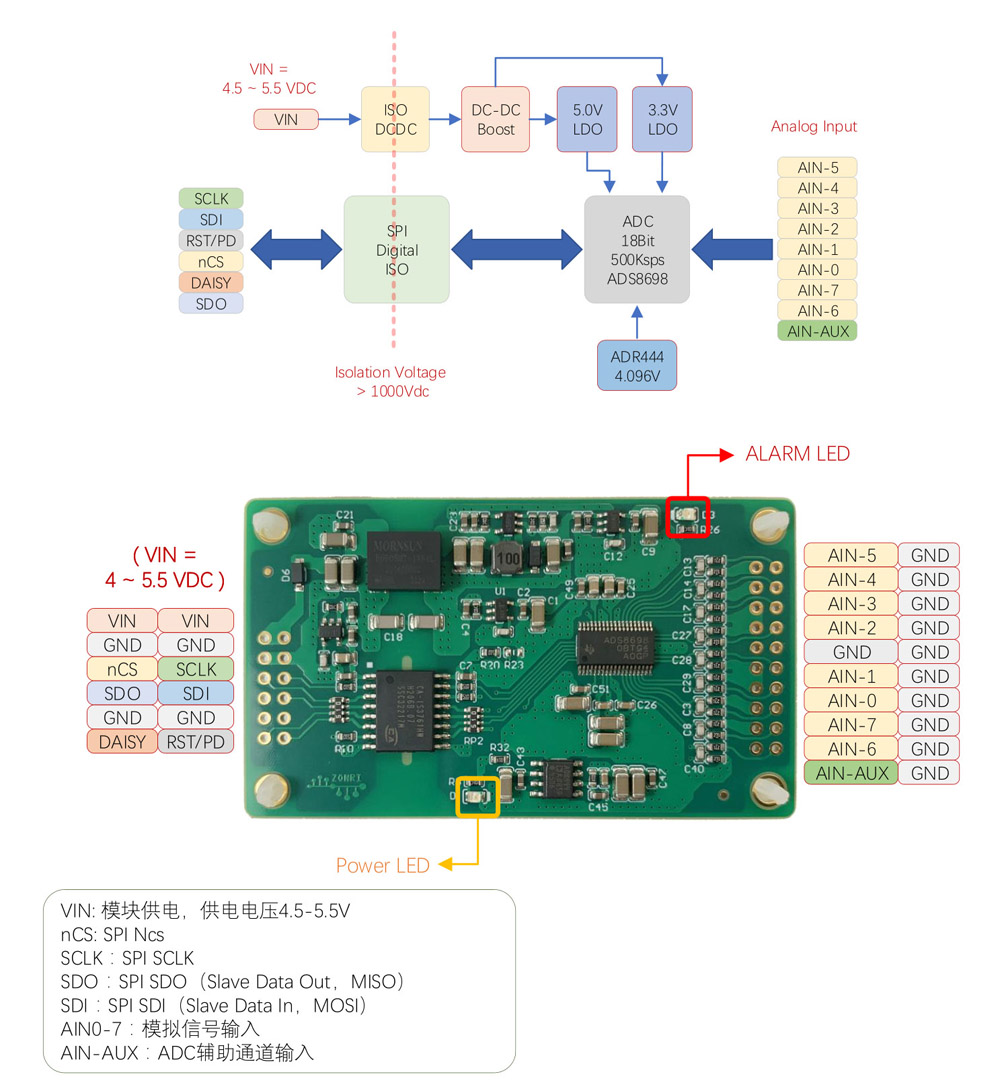

8-channel 18 bit 500Ksps isolated SAR ADC module
Power supply voltage 4.5-5.5VDC
1000V isolation voltage, isolation capacitor less than 60pF
Constant 1M Ω input impedance
Supports input ranges of ± 10.24V, ± 5.12V, ± 2.56V, 10.24V, and 5.12V.
The total sampling rate is 500Ksps (data update rate).
Support Daisy chain serial mode.

Question: Is the connector soldered?
Answer: The connector is not soldered.
Question: Do you support Daisy chain?
Answer: Supports Daisy chain, but it is recommended to have no more than 4 modules.
