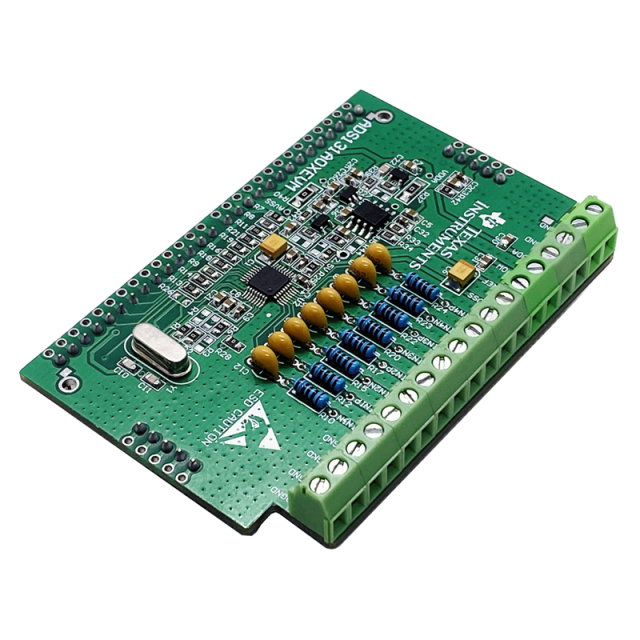

ADS131A04 ADS131A02 module 24 bit ADC synchronous sampling high-precision signal acquisition

Name: ADS131A04 ADS131A02 module 24 bit ADC synchronous sampling high-precision signal acquisition
Brand: MicroHello
SKU: ADS131A0x-001
Price: 81.5 USD
Availability: InStock

SKU: ADS131A0x-001

0.0 (0)

0 Sold

$81.50 ~~$49.00~~

ADS131A04 ADS131A02 module 24 bit ADC synchronous sampling high-precision signal acquisition

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

Basic Parameters
Resolution: 24 bits
Number of channels: 4 differential
Maximum sampling rate: 128kSPS (synchronous sampling)
Differential input voltage: ± VREF/Main

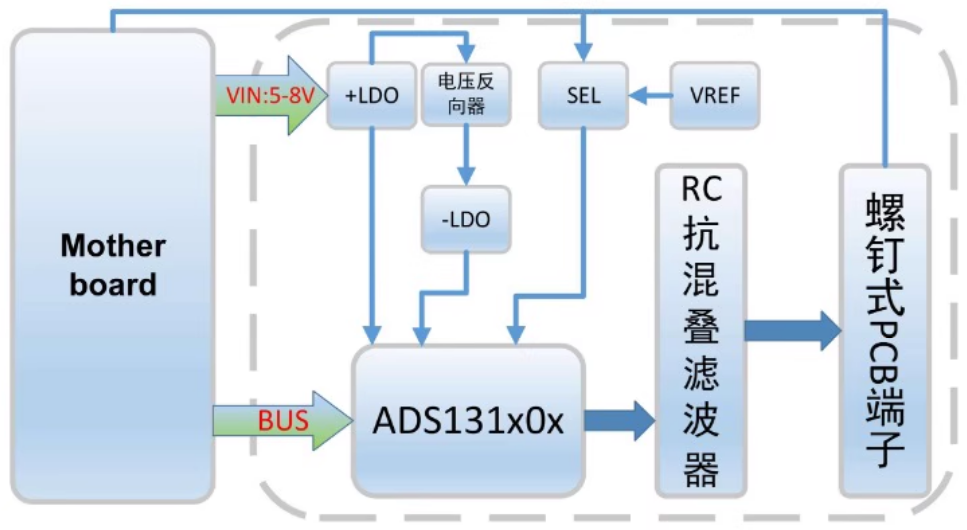

Block Diagram

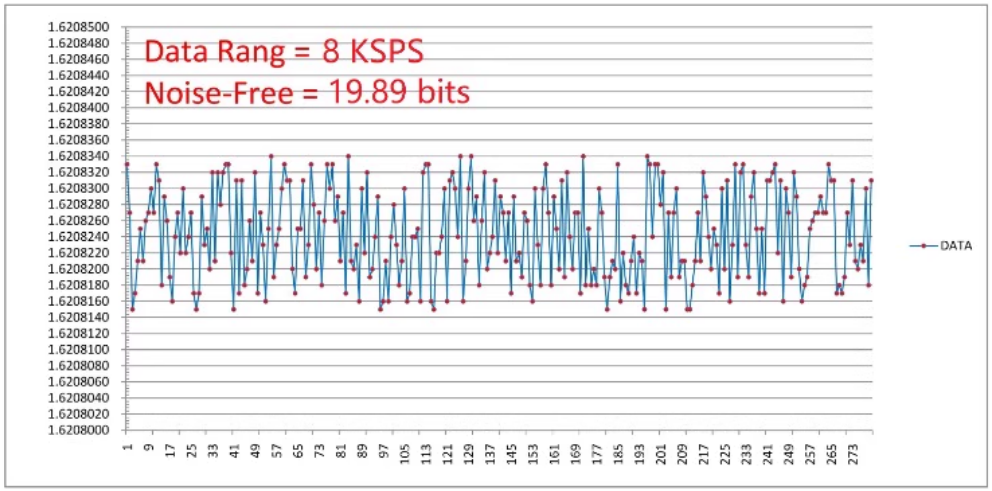

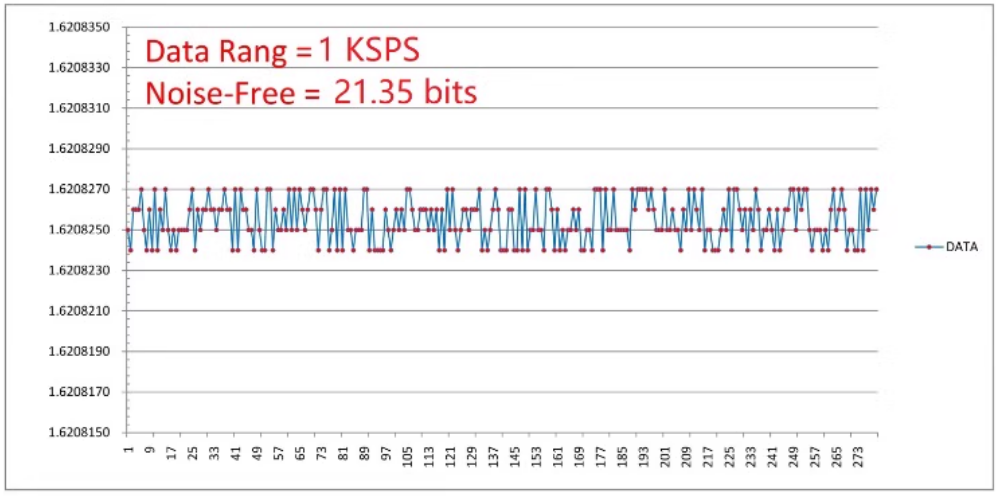

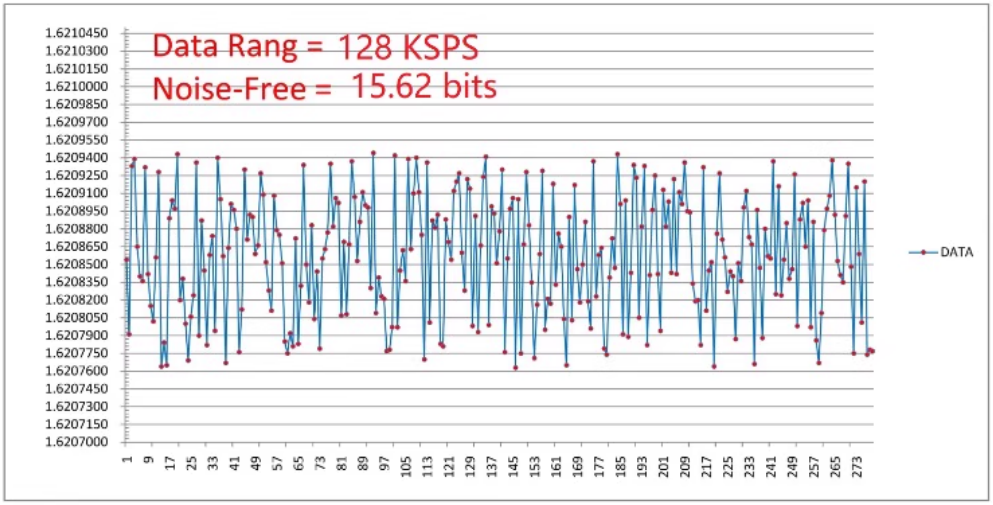

Performance Testing

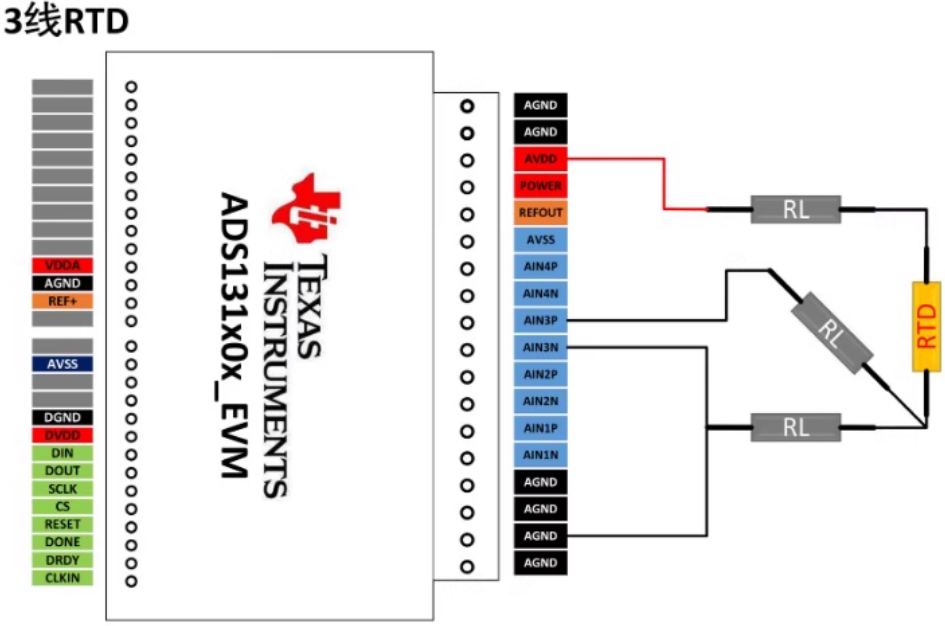

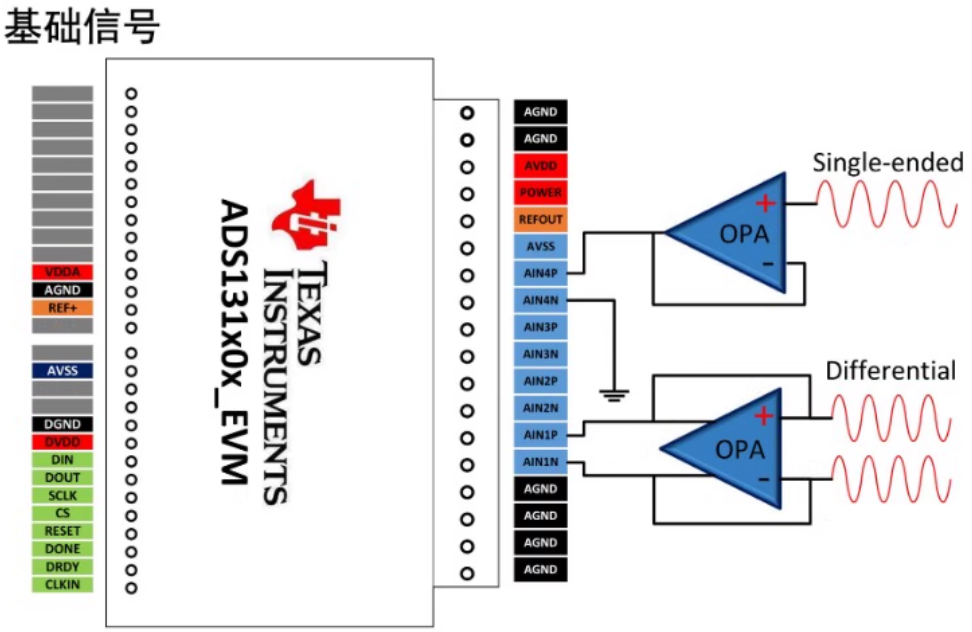

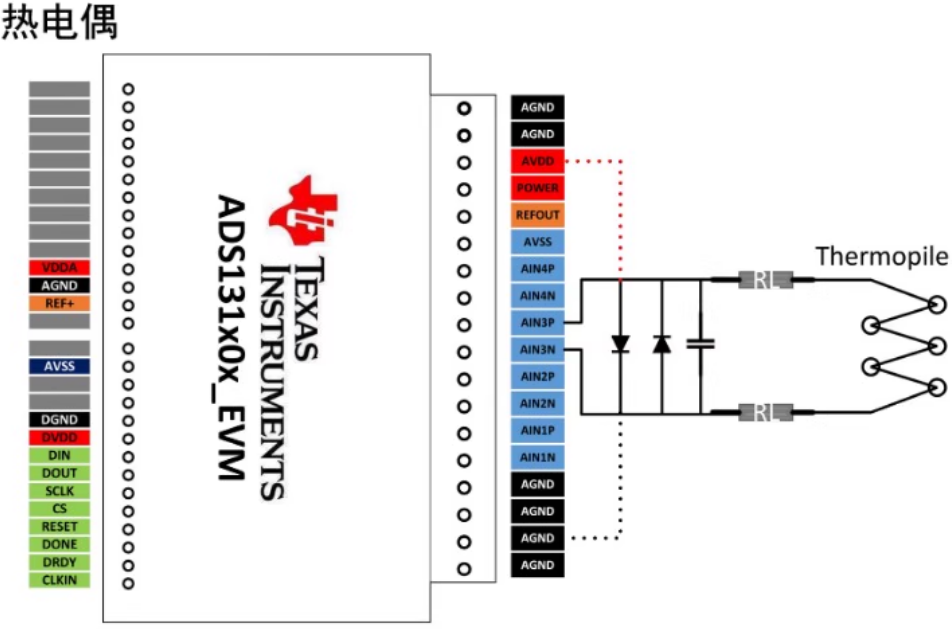

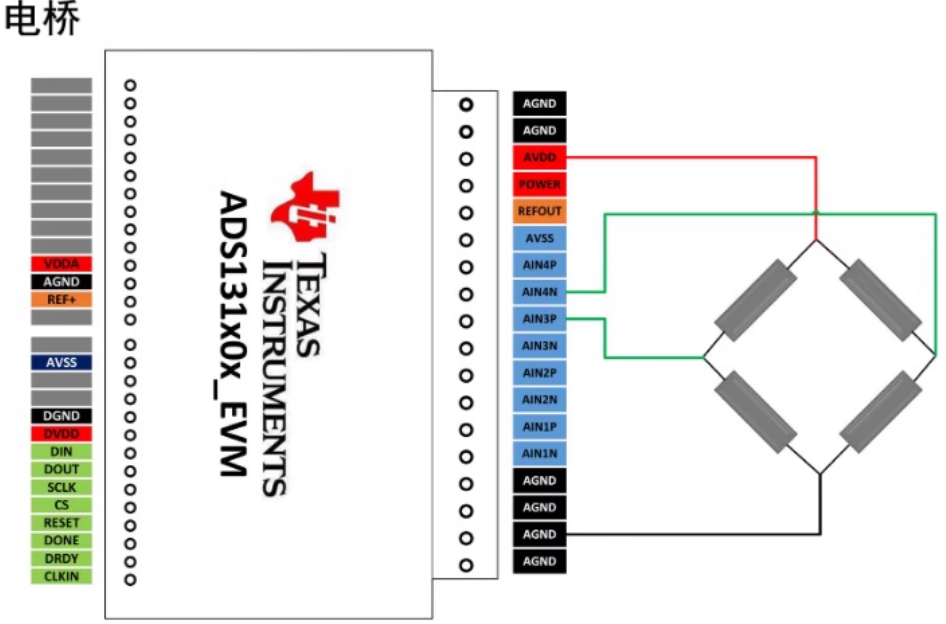

Applications

About its Motherboard
We have designed a motherboard based on STM32 microcontroller, and you can test and develop it by installing these ADC modules on this motherboard. In order to accelerate users' learning and development speed, we provide a sample program for ADC data collection. After placing an order, please contact us via email to request this routine and other related information.
