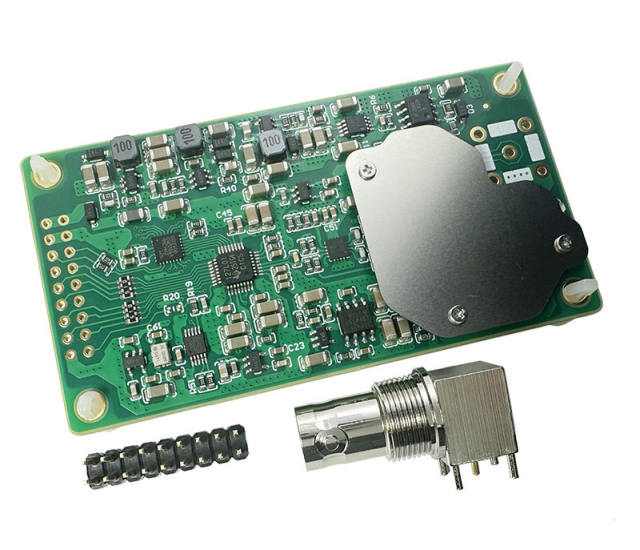

ADS127L01 high-performance IEPE vibration/audio acquisition module/512Ksps/24Bit/DC/AC

Name: ADS127L01 high-performance IEPE vibration/audio acquisition module/512Ksps/24Bit/DC/AC
Brand: MicroHello
SKU: ADS127L01-0001
Price: 106 USD
Availability: InStock

SKU: ADS127L01-0001

0.0 (0)

0 Sold

$106.00 ~~$179.00~~

ADS127L01 high-performance IEPE vibration/audio acquisition module/512Ksps/24Bit/DC/AC

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

Parameters
High performance low-noise vibration/acoustic acquisition module
The wide supply voltage is 3.8-7.0VDC. When the IEPE current source is turned on, the typical supply current is 105mA (Vin=5V)
2-512Ksps， Low temperature drift and low jitter clock, adjustable sampling rate
Support DC/AC coupling, DC Range: ± 1.5V, ± 3V, ± 4, ± 6; AC Range（IEPE）：3Vp-p、6Vp-p、8Vp-p、12Vp-p
Input impedance is 60K (fixed value)
AC coupling -3DB simulation bandwidth 0.8Hz-250KHz, flat frequency spectrum within the passband
4mA IEPE switchable constant current source
Use serial port (115200/3.3VTTL) to configure ADC and reduce the number of pin connections
