ADS1256 module 24 bit ADC high-precision thermocouple weighing RTD PT100 strain gauge

Name: ADS1256 module 24 bit ADC high-precision thermocouple weighing RTD PT100 strain gauge
Brand: MicroHello
SKU: ADS1256-001
Price: 39 USD
Availability: InStock

SKU: ADS1256-001

0.0 (0)

0 Sold

$39.00 ~~$49.00~~

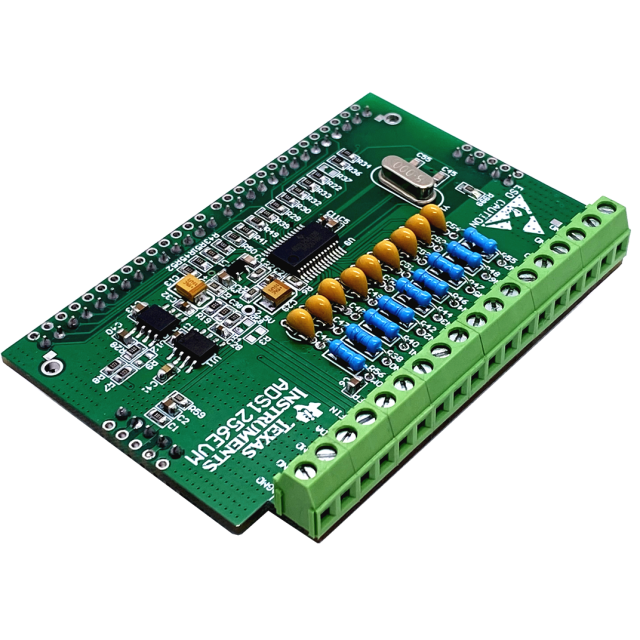

ADS1256 module 24 bit ADC high-precision thermocouple weighing RTD PT100 strain gauge

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

Video for test:
https://www.bilibili.com/video/BV1q84y1S7a1/?spm_id_from=444.41.ist.card archive.click
Basic Parameters
Resolution: 24 bits
Number of channels: 4 differential/8 single ended
Maximum sampling rate: 30ksps
Differential voltage input range: ± 2VREF/PGA
Programmable gain: 1-64

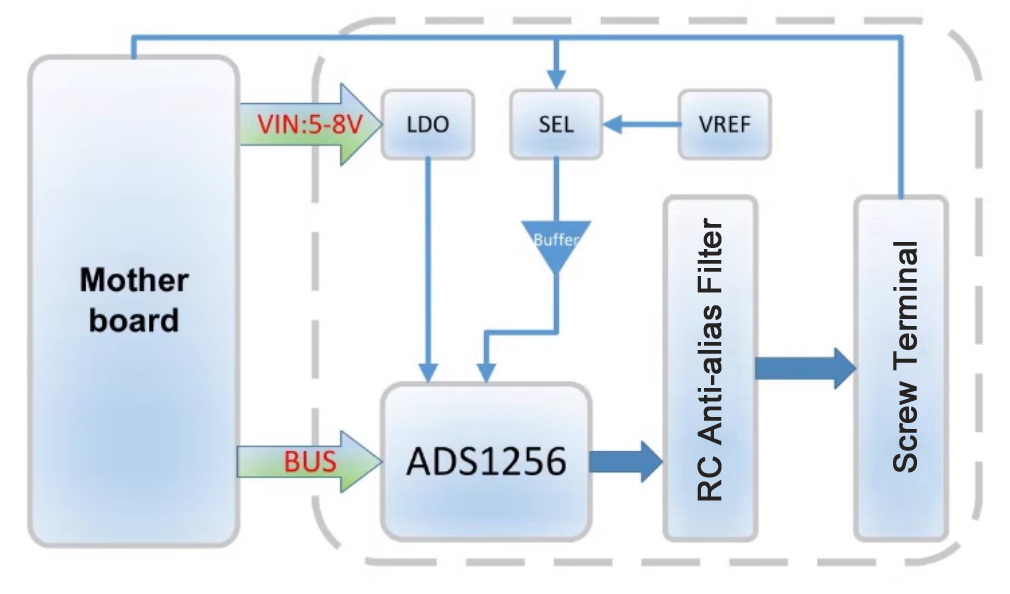

Block Diagram

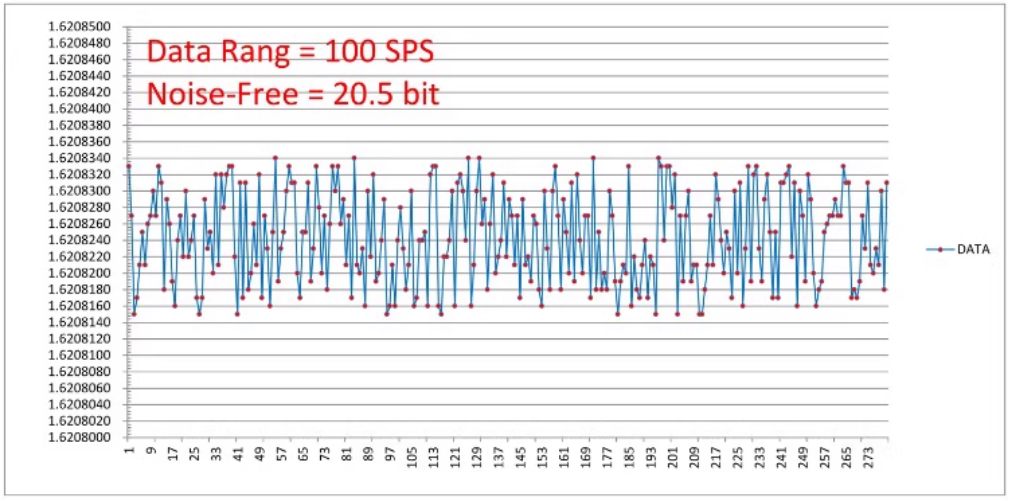

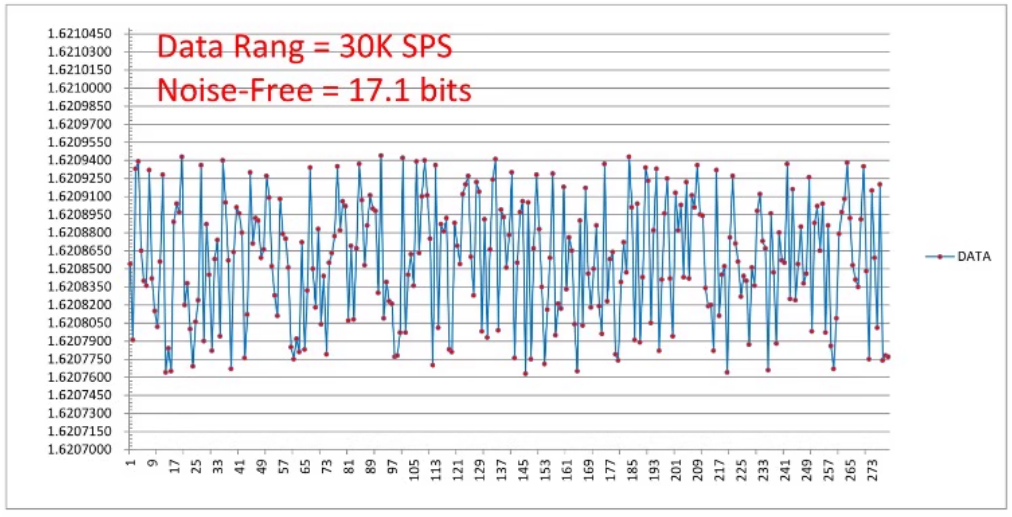

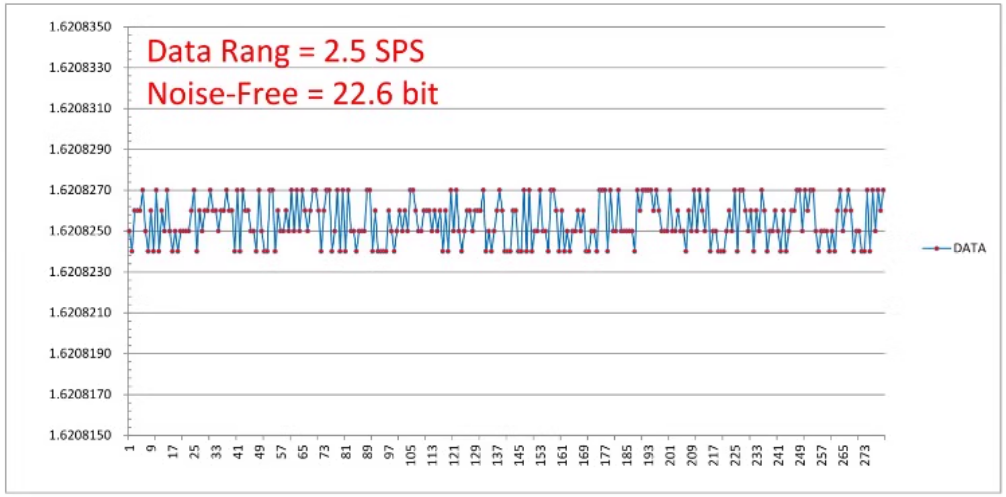

Performance Testing

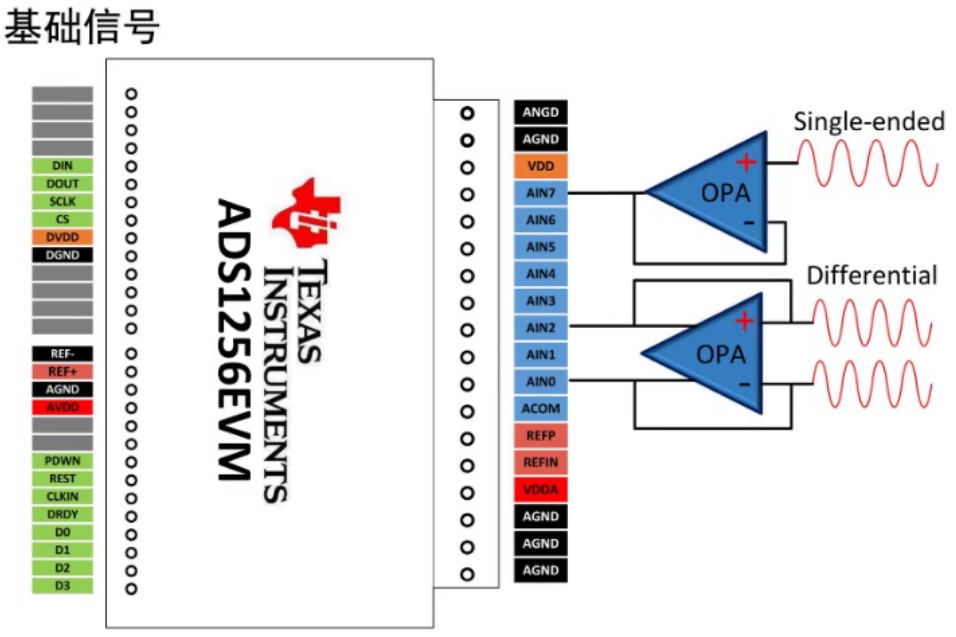

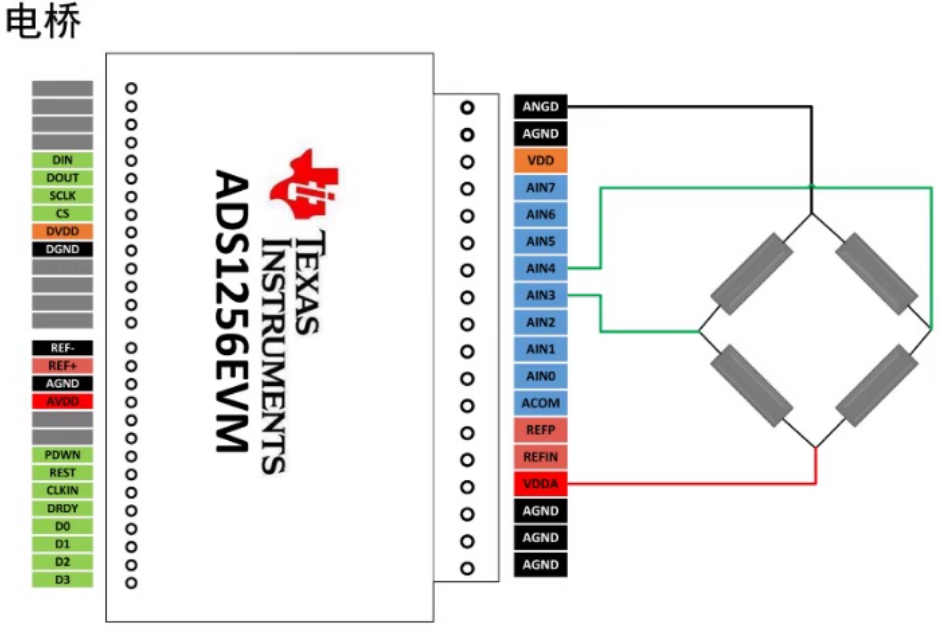

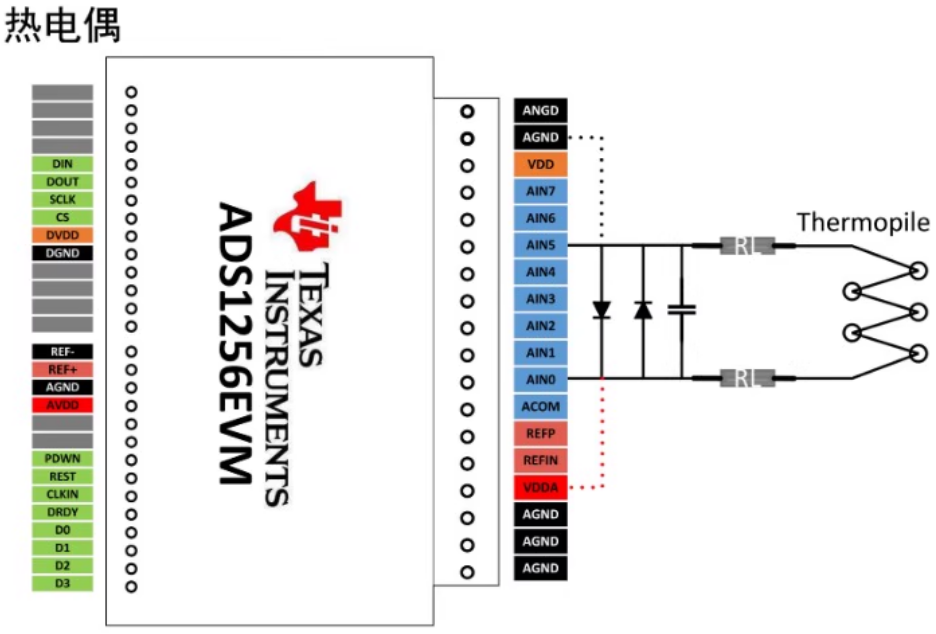

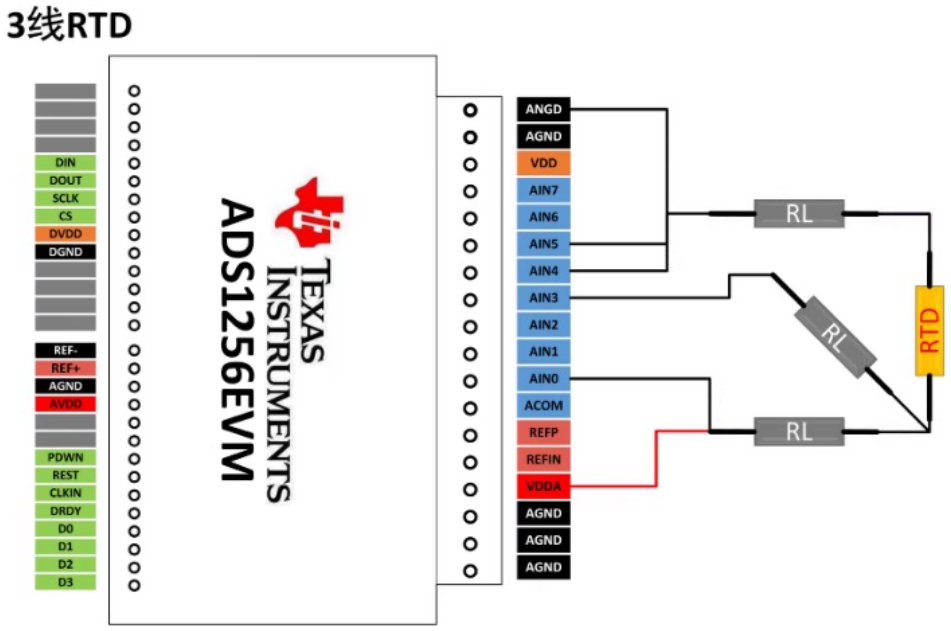

Applications

About its Motherboard
We have designed a motherboard based on STM32 microcontroller, and you can test and develop it by installing these ADC modules on this motherboard. In order to accelerate users' learning and development speed, we provide a sample program for ADC data collection. After placing an order, please contact us via email to request this routine and other related information.
