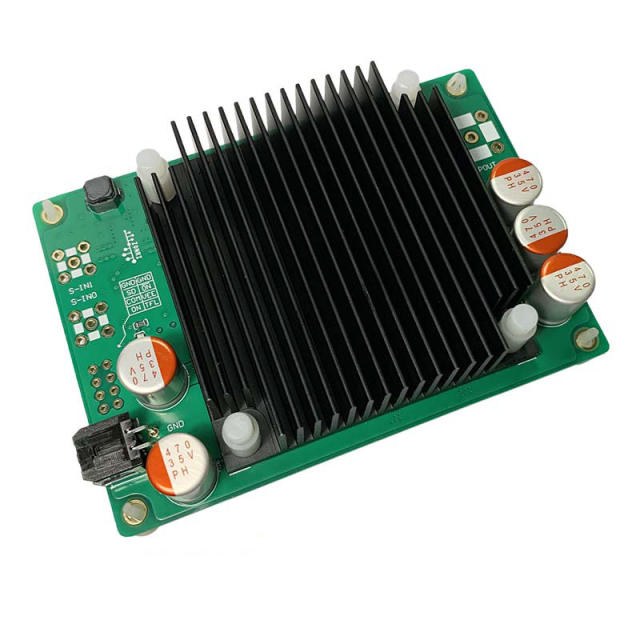

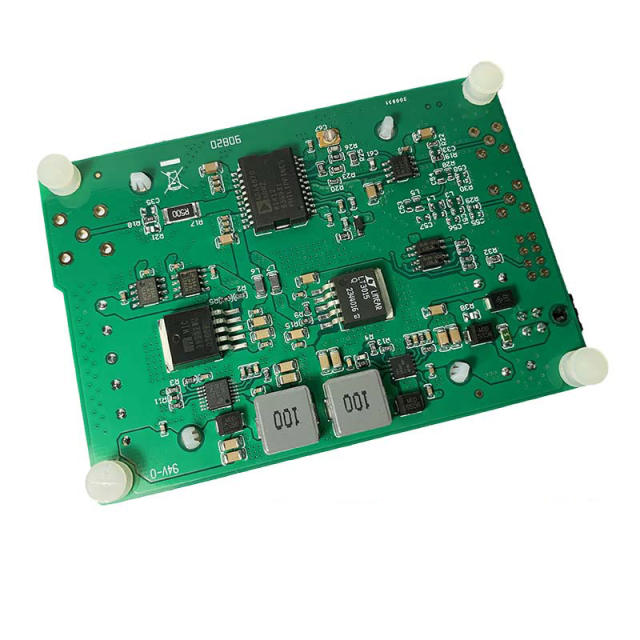

ADA4870 high-speed power amplifier module output 35Vp-p 1A composite amplifier

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

Parameters
Single power supply, wide voltage range (10V-15V DC)
Gain of 6.912V/V, output amplitude of 35Vp-p

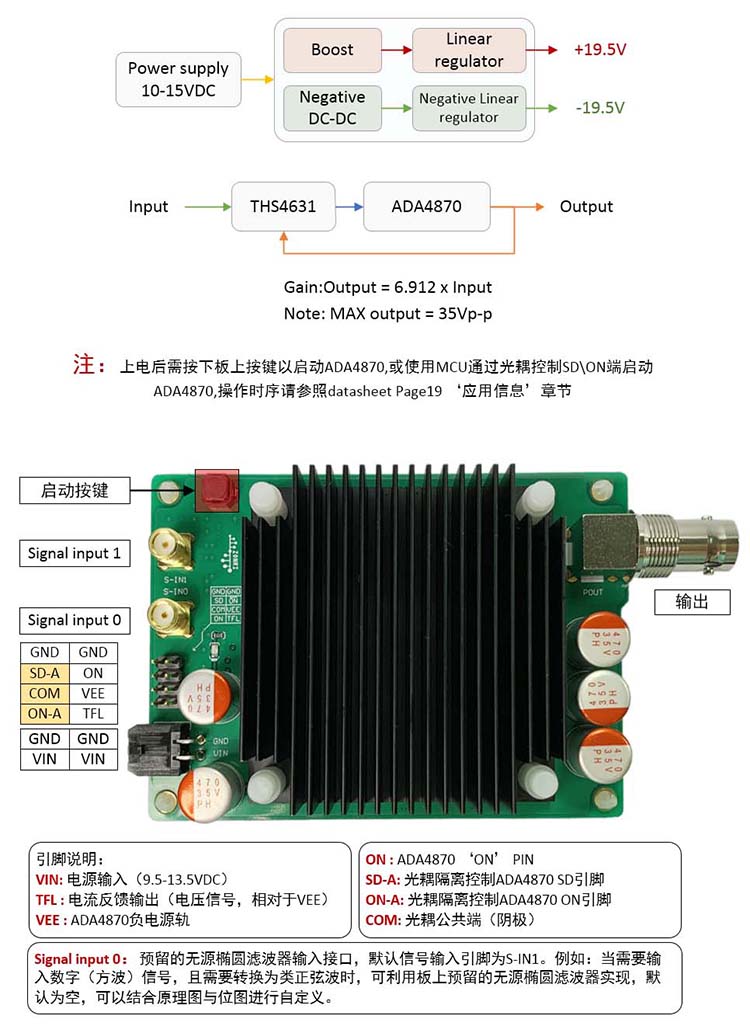

Adopting a composite amplifier structure, it has high bandwidth and high DC accuracy.

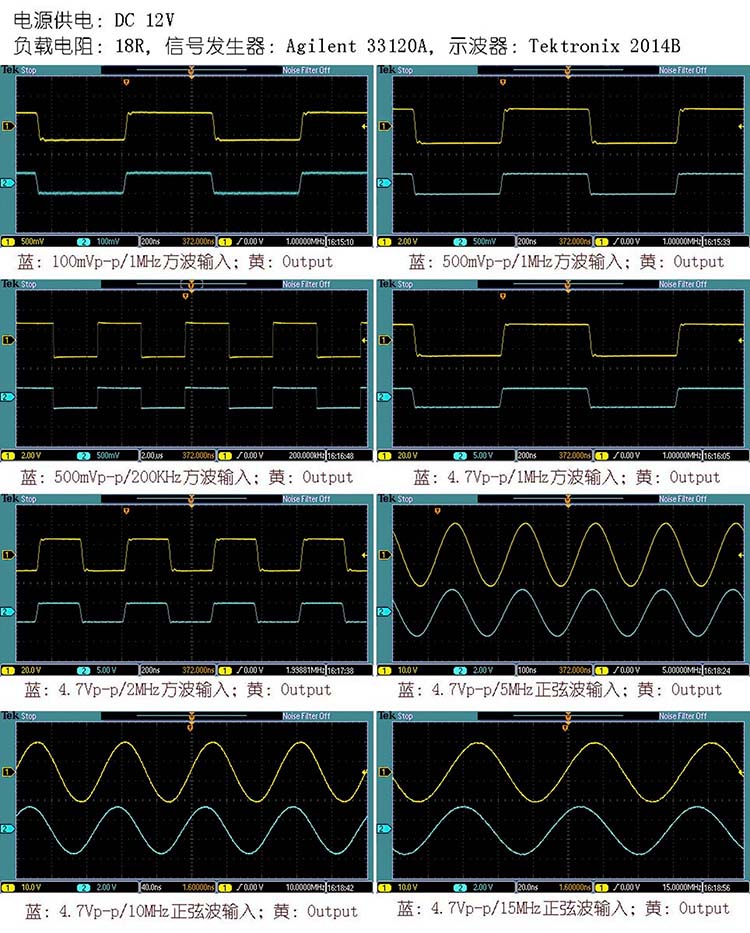

When the load is 18R and the driving current is 1A, the -3DB bandwidth is greater than 25MHz.
The SD pin and ON pin of the optocoupler isolation control.
Equipped with overcurrent protection and over temperature protection.

Question: Is the connector soldered?
Answer: Except for the MX3.0 power interface that has been soldered, all other connectors have not been soldered.
Question: Can the gain be adjusted?
Answer: The default gain is 6.912. Please refer to the schematic diagram for detailed adjustment of the gain. When adjusting the gain, the loop compensation usually needs to be adjusted accordingly.
