Parameters

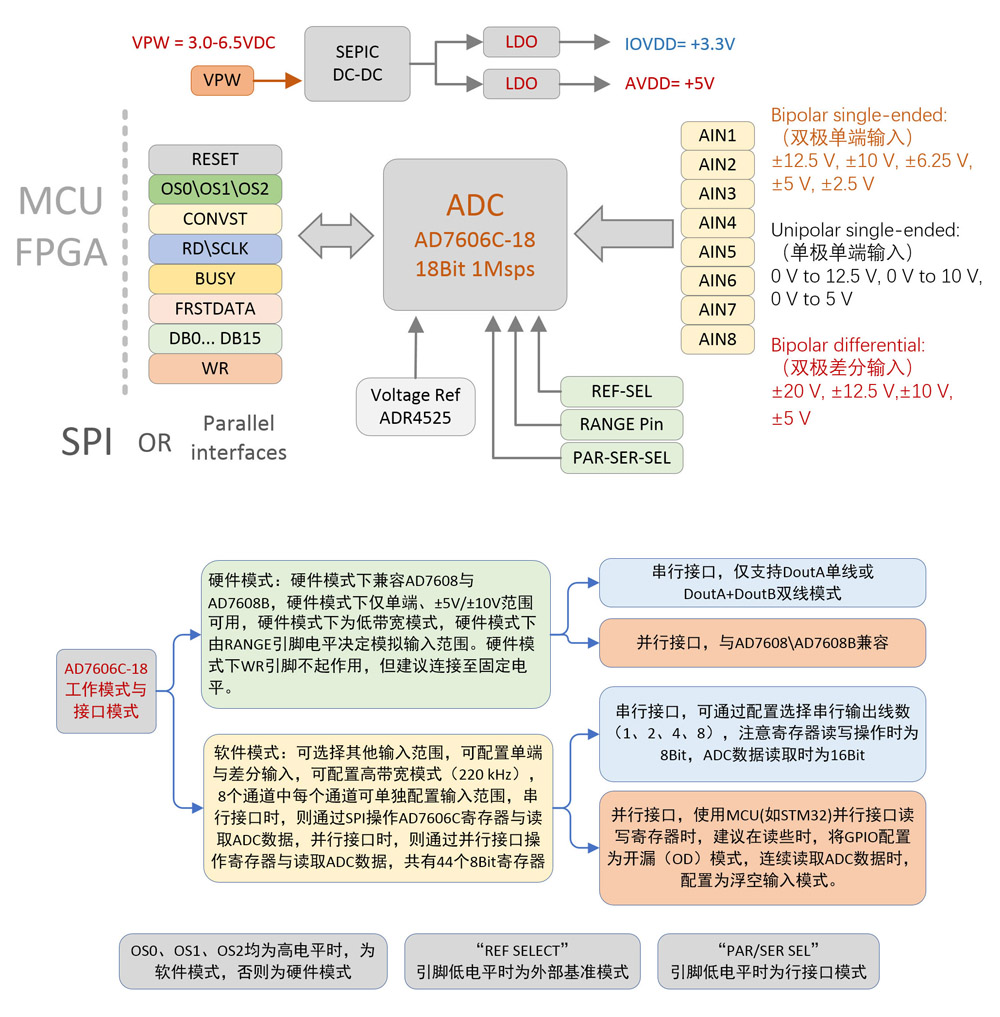

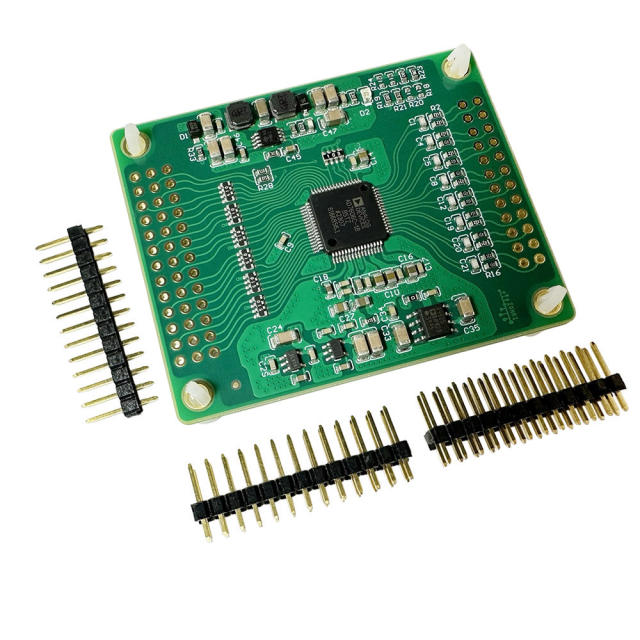

18 bit 8-channel single ended, differential 1Msps parallel ADC module
Single power supply with wide voltage range of 3.0-6.5VDC, 5V power supply, typical operating current of 82mA at 1Msps
Differential input range: ± 20 V, ± 12.5 V, ± 10 V, ± 5 V
Single ended input range: ± 12.5V, ± 10V, ± 6.25V, ± 5V, ± 2.5V, 0V-12.5V, 0V-10V, 0V-5V
Equipped with high bandwidth mode (-3DB 220KHz)
Flexible digital filter configuration, software mode with a maximum oversampling factor of 256
Simulate input impedance of 1M Ω
Parallel or serial interface level: 3.3V TTL
/////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
Question: Is the connector soldered?
Answer: The connector is not soldered.
Question: What are the differences between AD7608 and AD7608?
Answer: AD7606C-18 is an upgraded version of AD7608, which adds a software mode for configuring ADC through registers to achieve extended functions such as multi input range, high analog bandwidth, and support for differential input. Please refer to the AD7606C-18 datasheet for details; The added functionality makes the operation of ADC more complex.
Question: What is the difference between AD7609 and AD7609?
Answer: AD7606-18 supports differential input in software mode and can be used as an upgraded version of AD7609.
