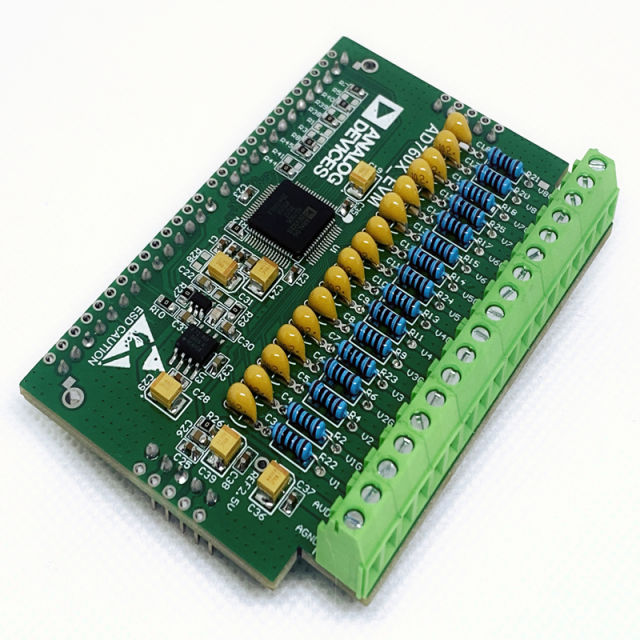

AD7606 AD7608 AD7609 module16 bit 18 bit ADC synchronous sampling AD module data acquisition

Name: AD7606 AD7608 AD7609 module16 bit 18 bit ADC synchronous sampling AD module data acquisition
Brand: MicroHello
SKU: AD760x-001
Price: 39 USD
Availability: InStock

SKU: AD760x-001

0.0 (0)

0 Sold

$39.00 ~~$49.00~~

AD7606 AD7608 AD7609 module16 bit 18 bit ADC synchronous sampling AD module data acquisition

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

Basic Parameters
Resolution: 16 bits/18 bits
Number of channels: 8 channels
Maximum sampling rate (all channels): 200Ksps
Differential input voltage: ± 10V, ± 5V
Interface: SPI, 8080 parallel port (DB0~DB15)
AD7606 AD7608 AD7609 16 bit 18 bit ADC syn

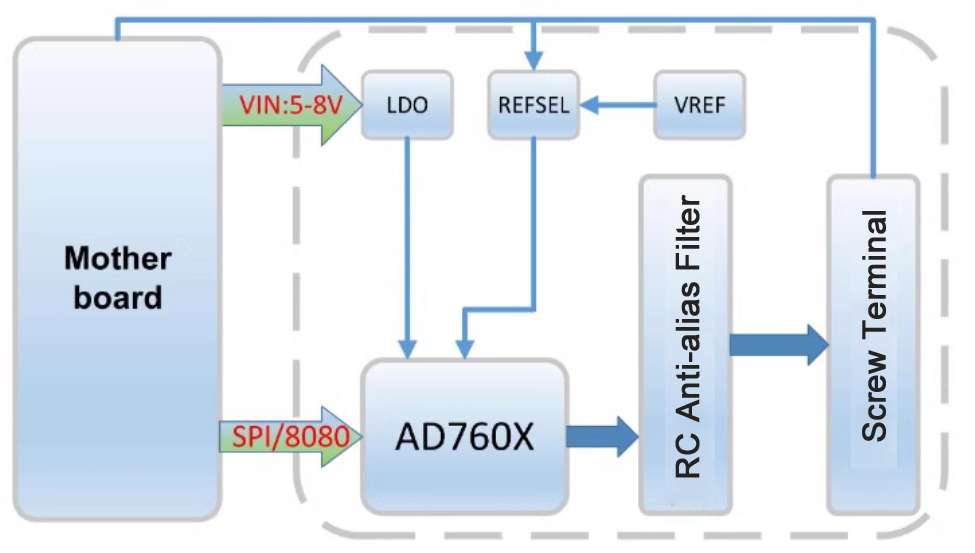

Block Diagram

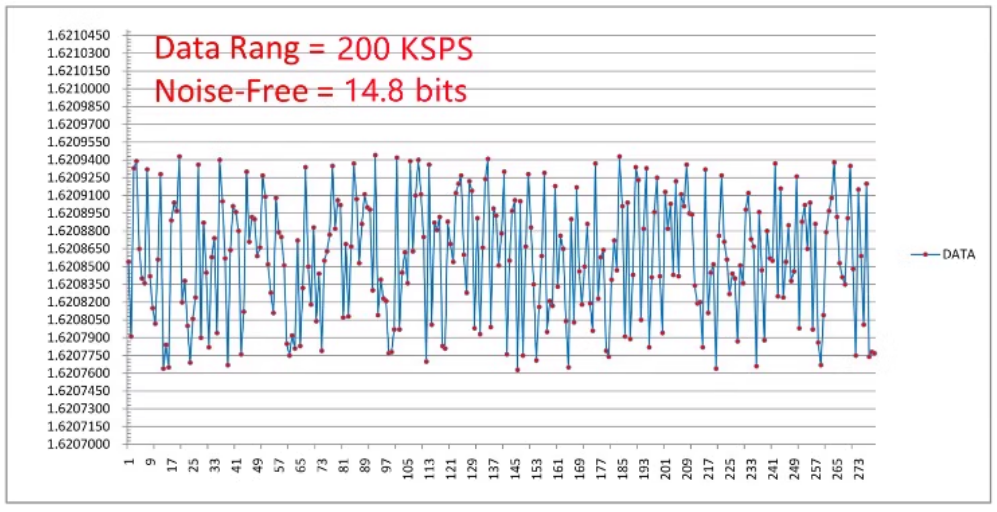

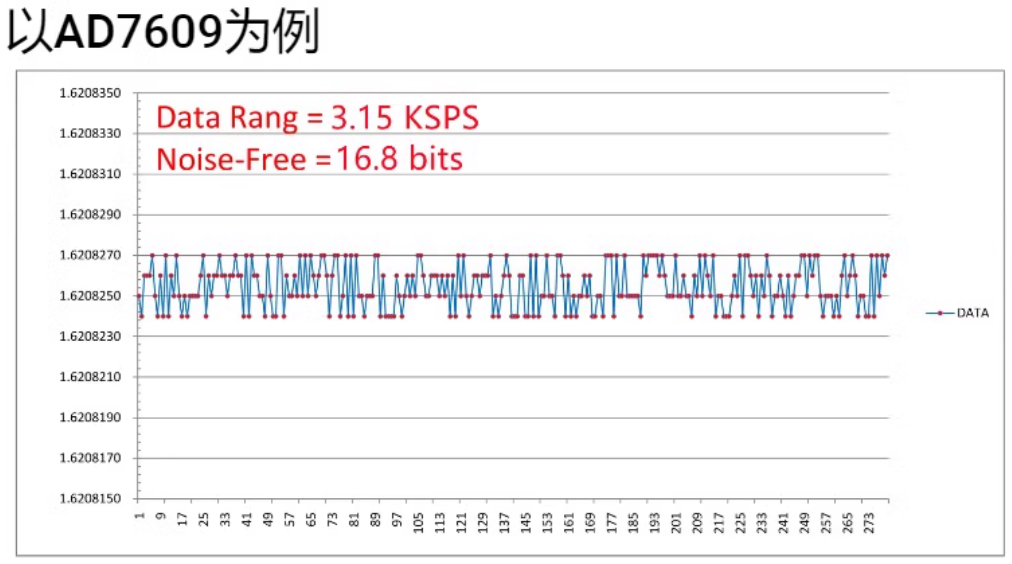

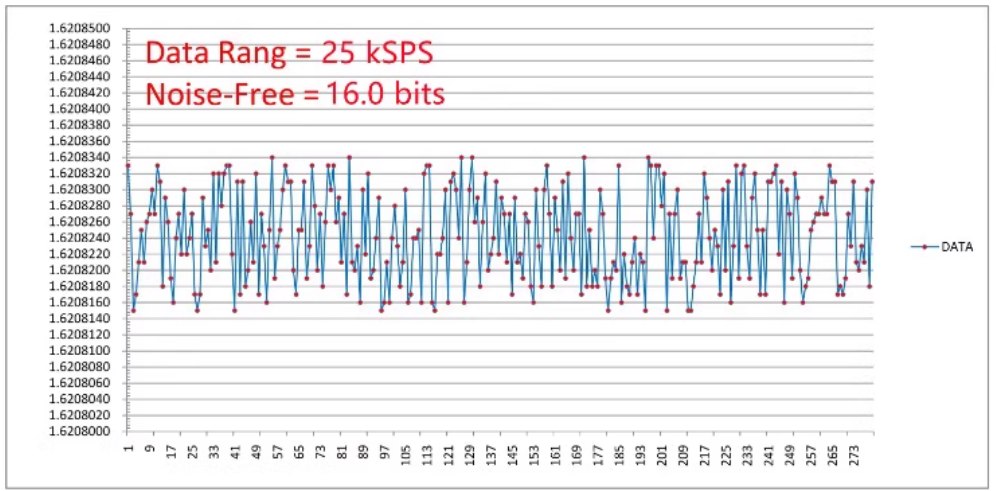

Performance Testing(Takes AD7609 for example)

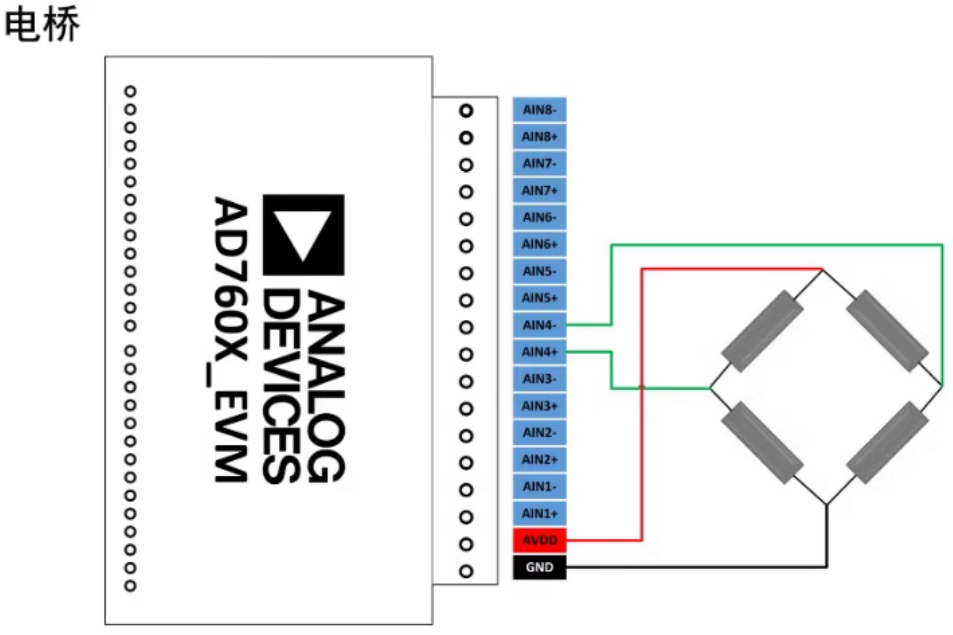

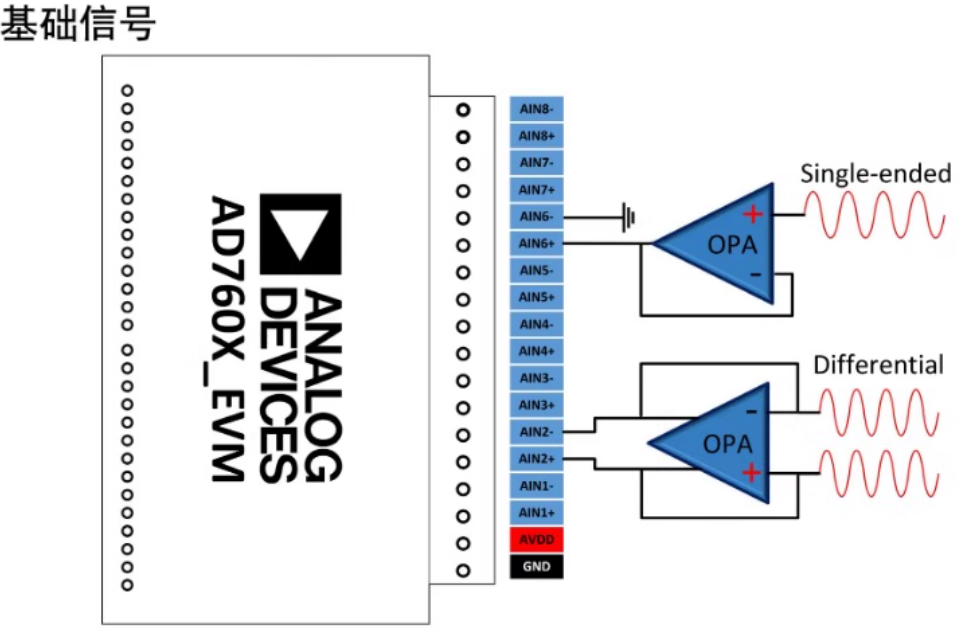

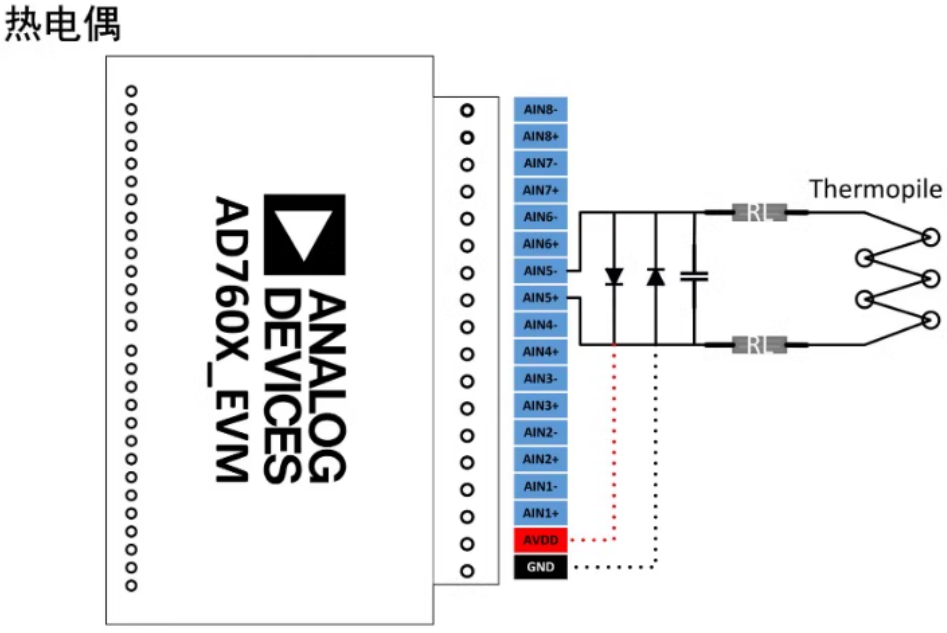

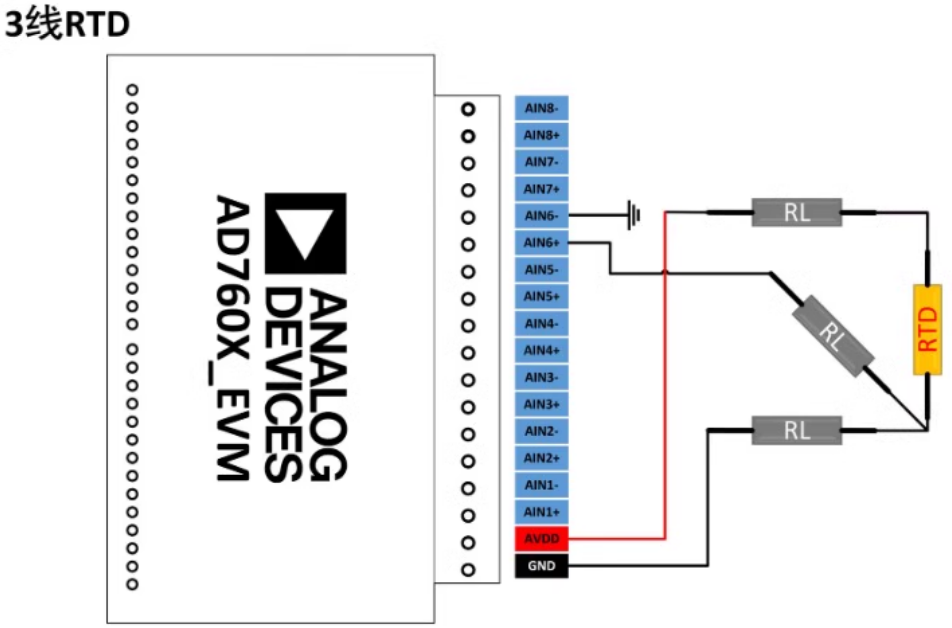

Applications

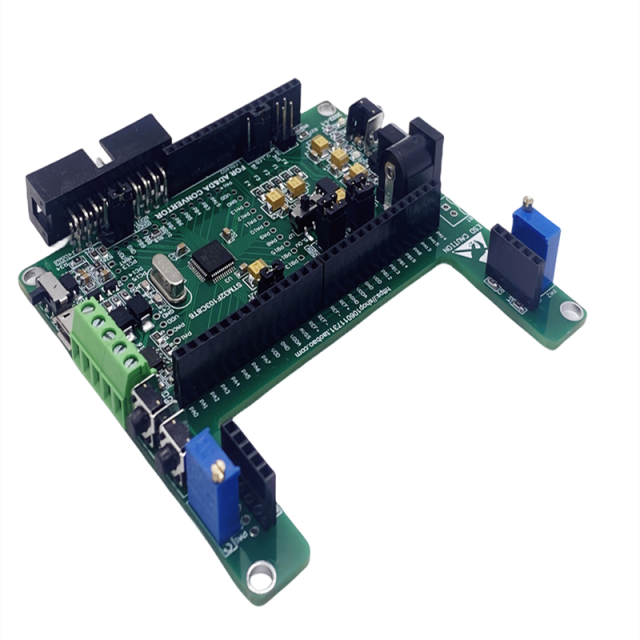

About its Motherboard
We have designed a motherboard based on STM32 microcontroller, and you can test and develop it by installing these ADC modules on this motherboard. In order to accelerate users' learning and development speed, we provide a sample program for ADC data collection. After placing an order, please contact us via email to request this routine and other related information.
