AD7177 module 32-bit ADC thermocouple weighing sensor strain RTD PT100

SKU:
0.0 (0)
0 Sold
$25.90 $49.00
AD7177 module 32-bit ADC thermocouple weighing sensor strain RTD PT100
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Model:
    AD7177 Module
    STM32 Motherboard for ADC Modules
Quantity:
Add to Favorites (0)
  • AD7177 module 32-bit ADC thermocouple weighing sensor strain RTD PT100
  • ADS1256 module ADR4525 24 bit ADC high-precision thermocouple weighing RTD PT100 strain gauge
  • Description

Basic Parameters
Resolution: 32-bit
Number of channels: 2 differential/4 single ended
Maximum sampling rate: 10ksps
Differential input voltage: ± VREF

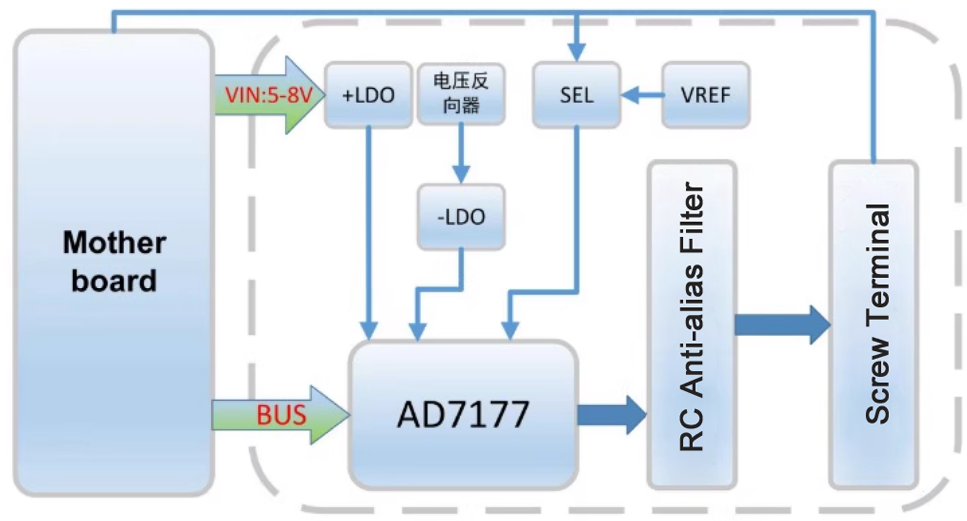

Block Diagram

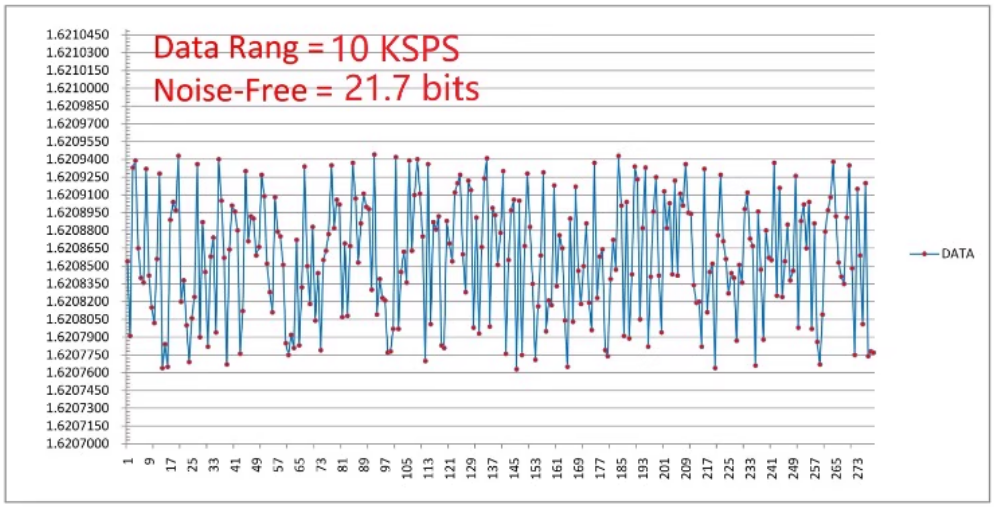

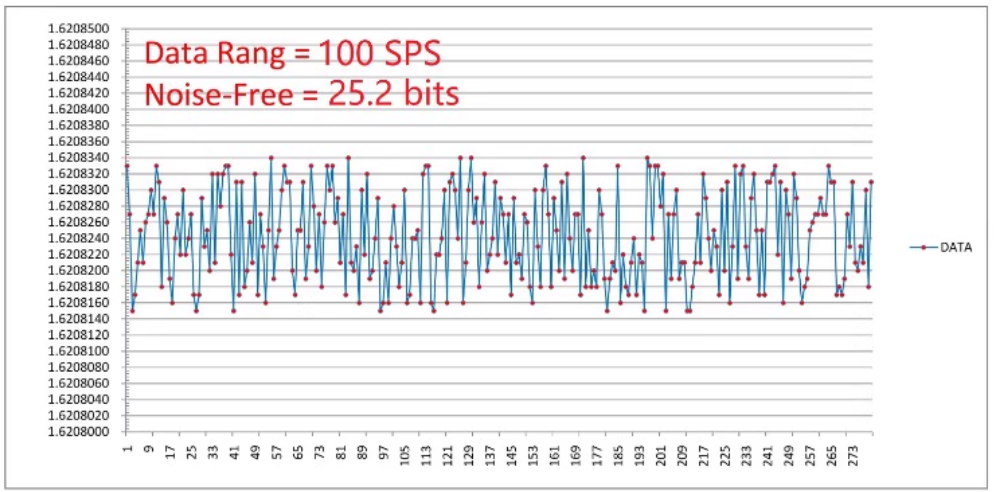

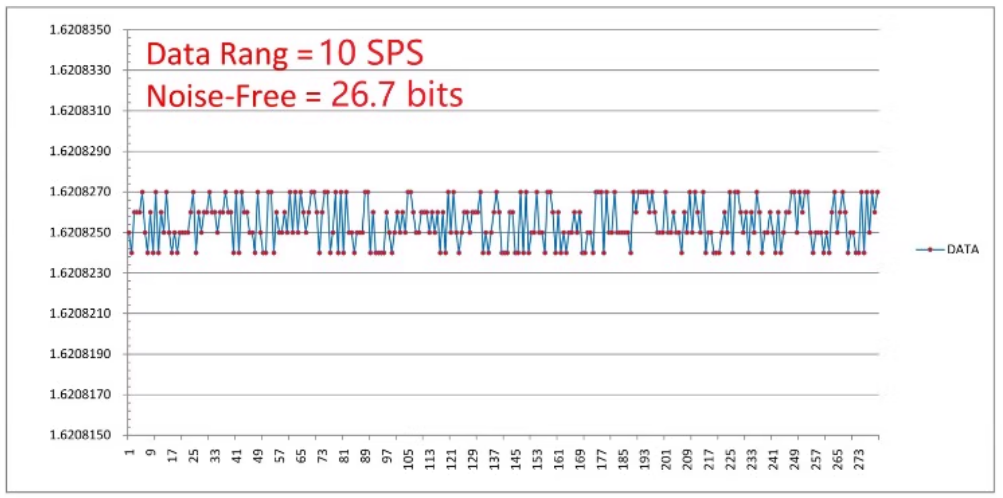

Performance Testing

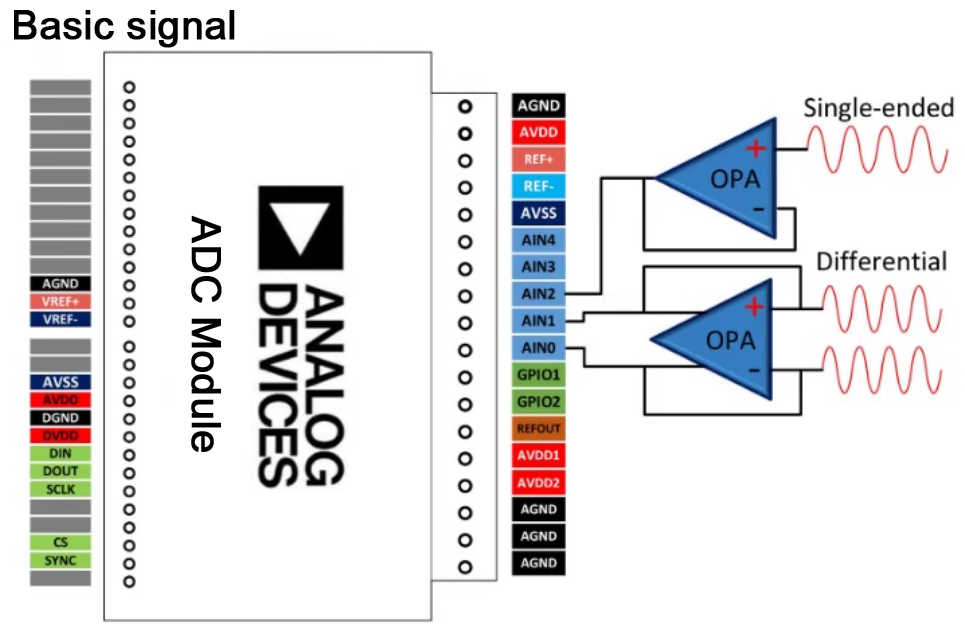

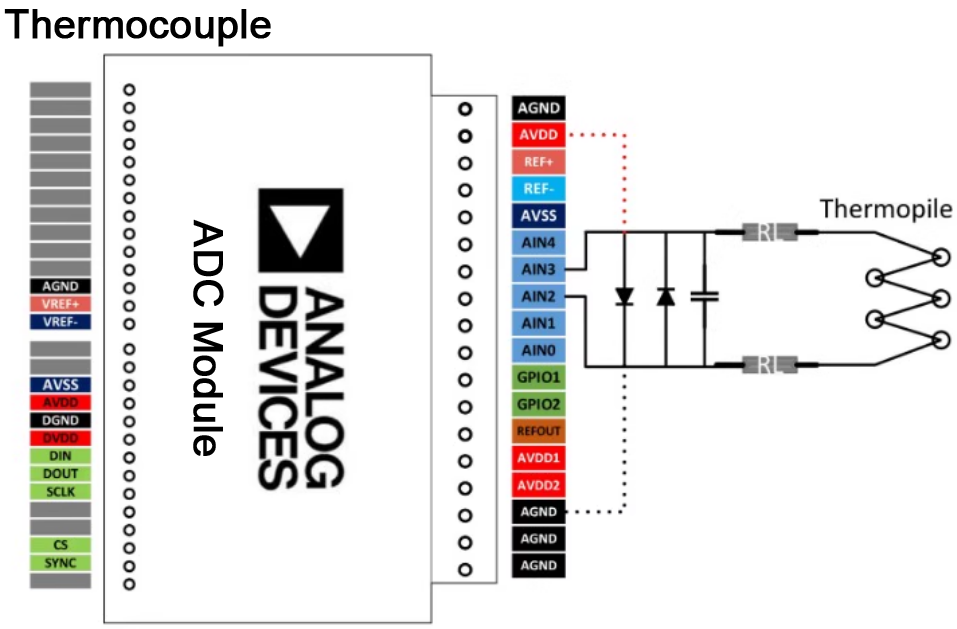

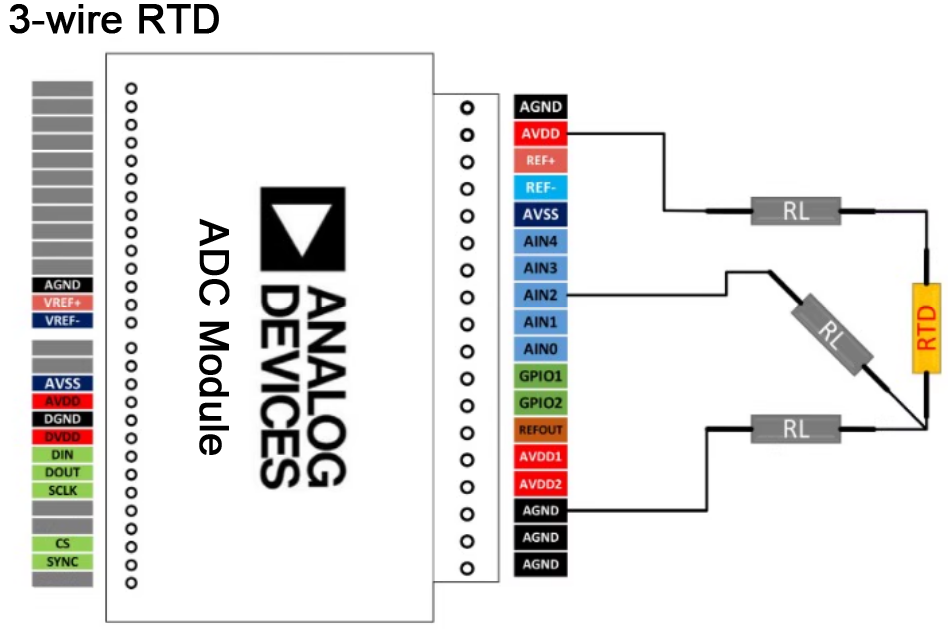

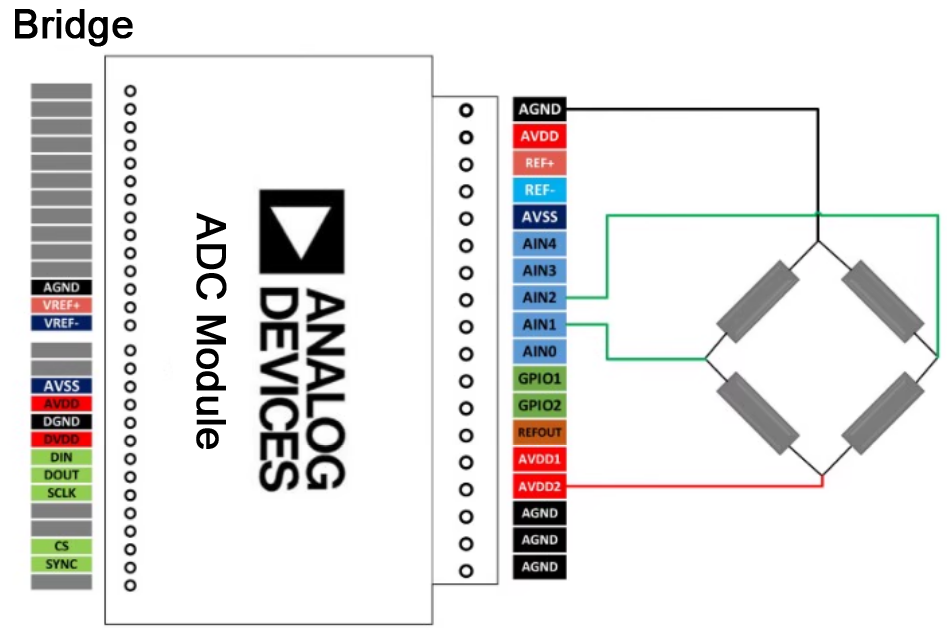

Applications

About its Motherboard
We have designed a motherboard based on STM32 microcontroller, and you can test and develop it by installing these ADC modules on this motherboard. In order to accelerate users' learning and development speed, we provide a sample program for ADC data collection. After placing an order, please contact us via email to request this routine and other related information.
