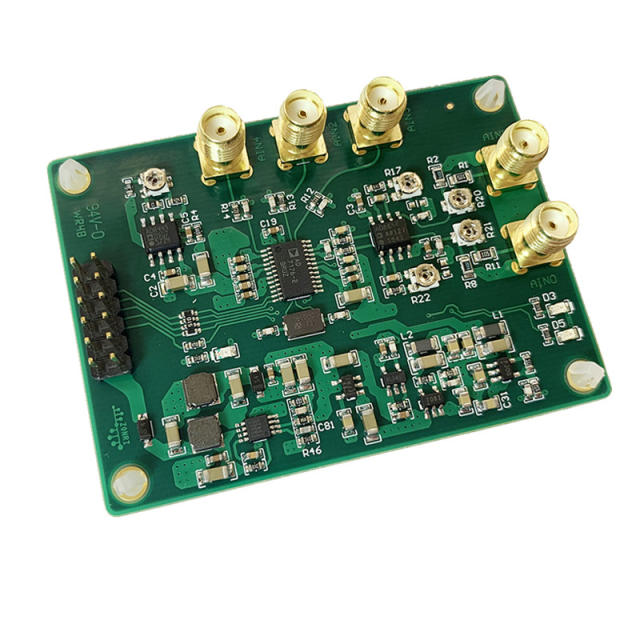

AD7176-2 ADC module 250Ksps 24Bit differential bipolar input

SKU: AD7176-2-0001
0.0 (0)
0 Sold
$79.00 $129.00
AD7176-2 ADC module 250Ksps 24Bit differential bipolar input
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
Add to Favorites (0)
  • AD7176-2 ADC module 250Ksps 24Bit differential bipolar input
  • Description
Parameters

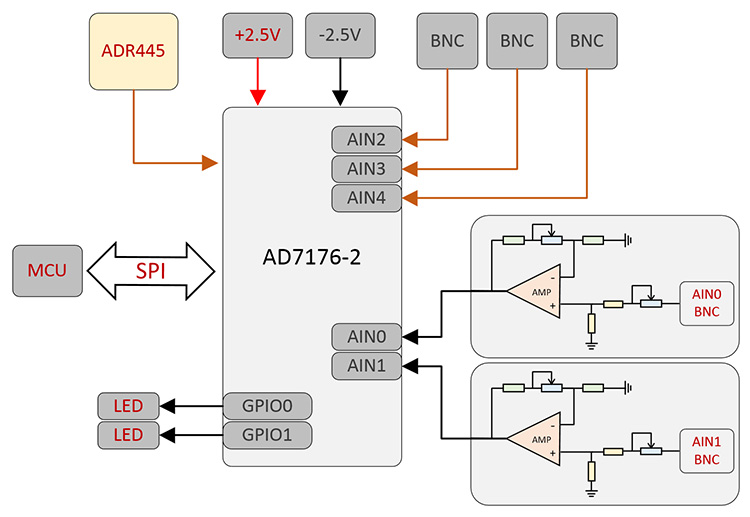

Complete AD7176-2 application solution.
Single power supply with a wide range of 2.7-8VDC.
The highest data update rate is 250Ksps and the setup time is 10us.
The input voltage division ratio can be fine tuned to correct common mode errors.
Onboard dual power rails, supporting true differential and bipolar inputs.
The default differential input range is ± 21.5V, and the common mode input range is 10.75V.
Adjustable (within a range of ± 0.5%) reference source.
