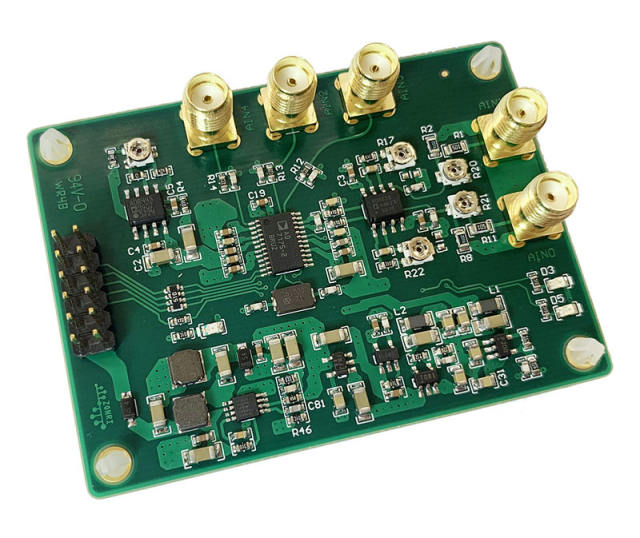

AD7175-2 250Ksps/24Bit ADC module/differential bipolar input

Name: AD7175-2 250Ksps/24Bit ADC module/differential bipolar input
Brand: MicroHello
SKU: AD7175-2-0001
Price: 77.5 USD
Availability: InStock

SKU: AD7175-2-0001

0.0 (0)

0 Sold

$77.50 ~~$126.00~~

AD7175-2 250Ksps/24Bit ADC module/differential bipolar input

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

Parameters
Complete AD7175-2 application solution.
Single power supply with a wide range of 2.7-8VDC, with a typical operating current of 58mA when powered by 5V.
The highest data update rate is 250Ksps and the setup time is 10us.

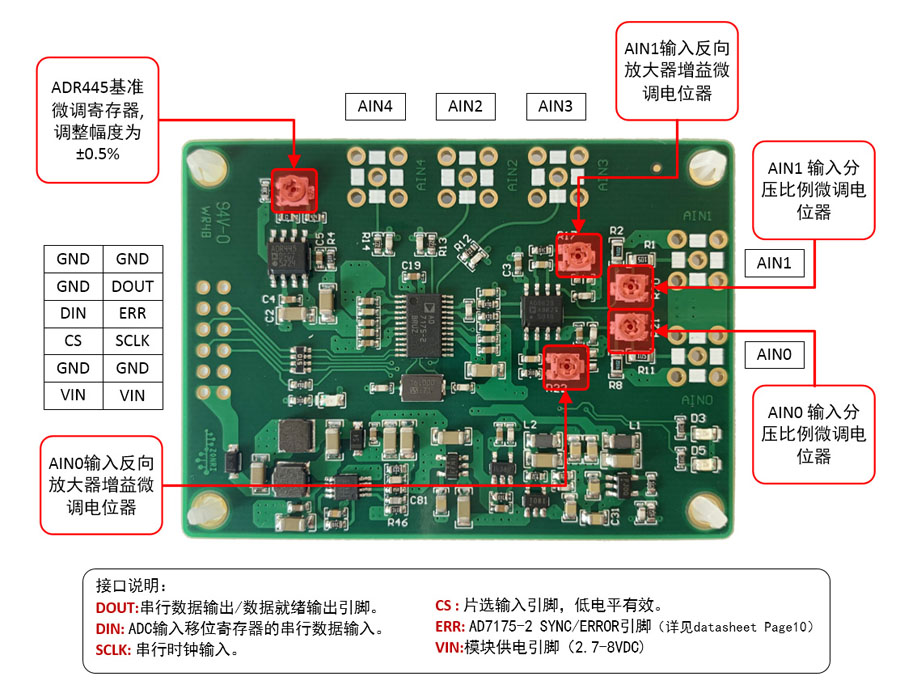

The input voltage division ratio can be fine tuned to correct common mode errors.

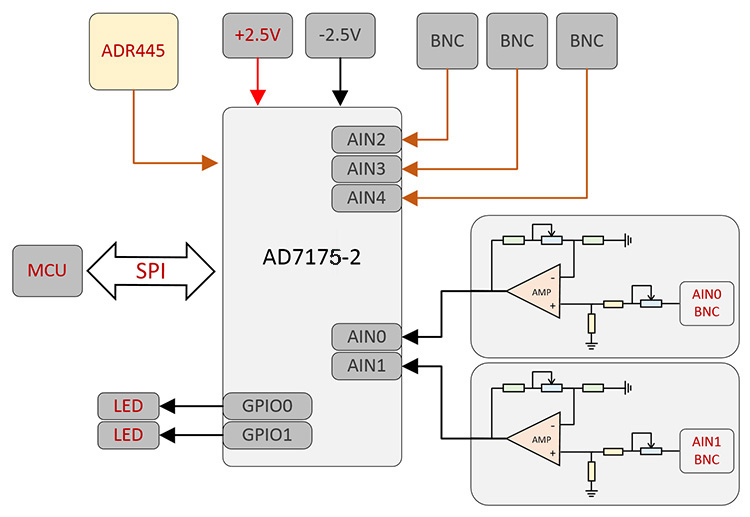

Onboard dual power rails, supporting true differential and bipolar inputs.
The default differential input range is ± 21.5V, and the common mode input range is 10.75V.
Adjustable (within a range of ± 0.5%) reference source.
