Parameters

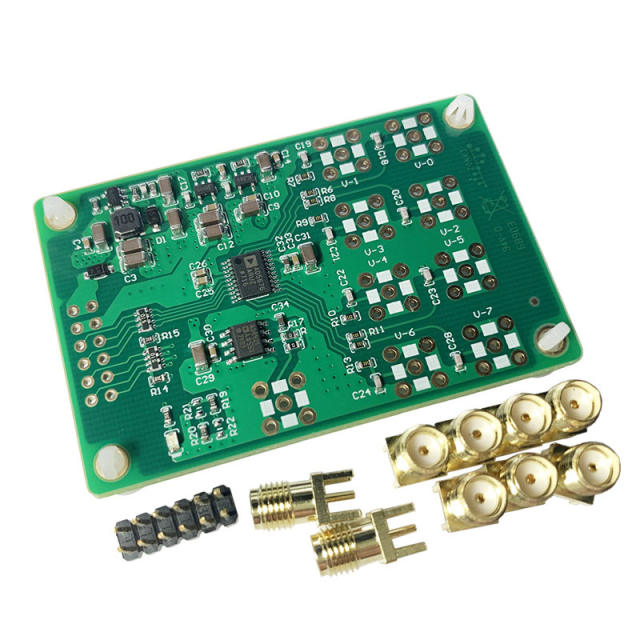

Complete AD5676 application module
Single power supply, 3.0-7Vdc
8-channel 16 bit DAC
Output range: 0V -2.5V/0V -5.0V, maximum output current 15mA
Establish a typical time value of 8uS (
¼ to ¾ scale settling to ± 2 LSB)
//////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
Question: Is the connector soldered?
Answer: The connector is not soldered.
Question: What is the difference between AD5676ARZ and AD5676BRZ?
Answer: The difference in accuracy levels between the two is detailed in Table 2 of datasheet page 4. The accuracy of AD5676B is higher than that of AD5676A.
