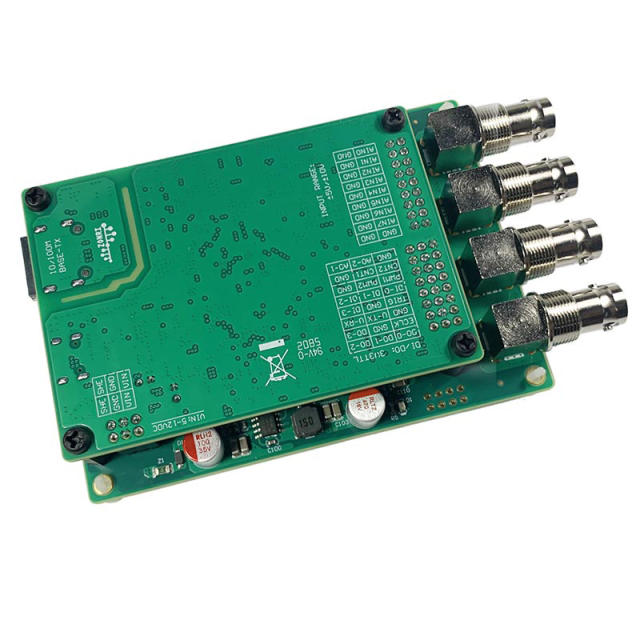

4-channel IEPE vibration/shock/acoustic acquisition card 16 bit 200Ksps Ethernet python IEPE/CCLD acquisition card parallel sampling

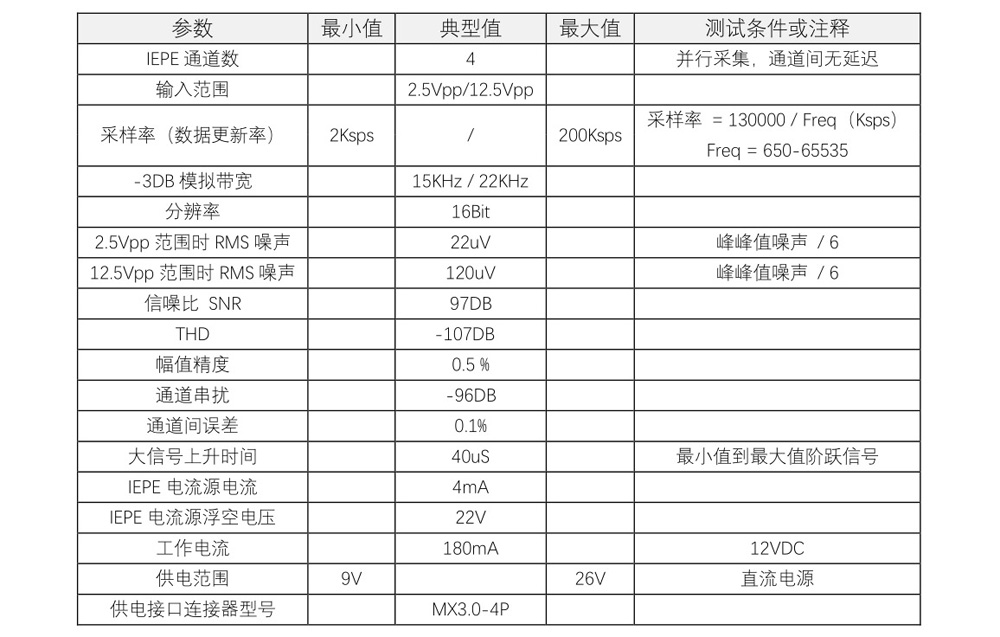

Parameters

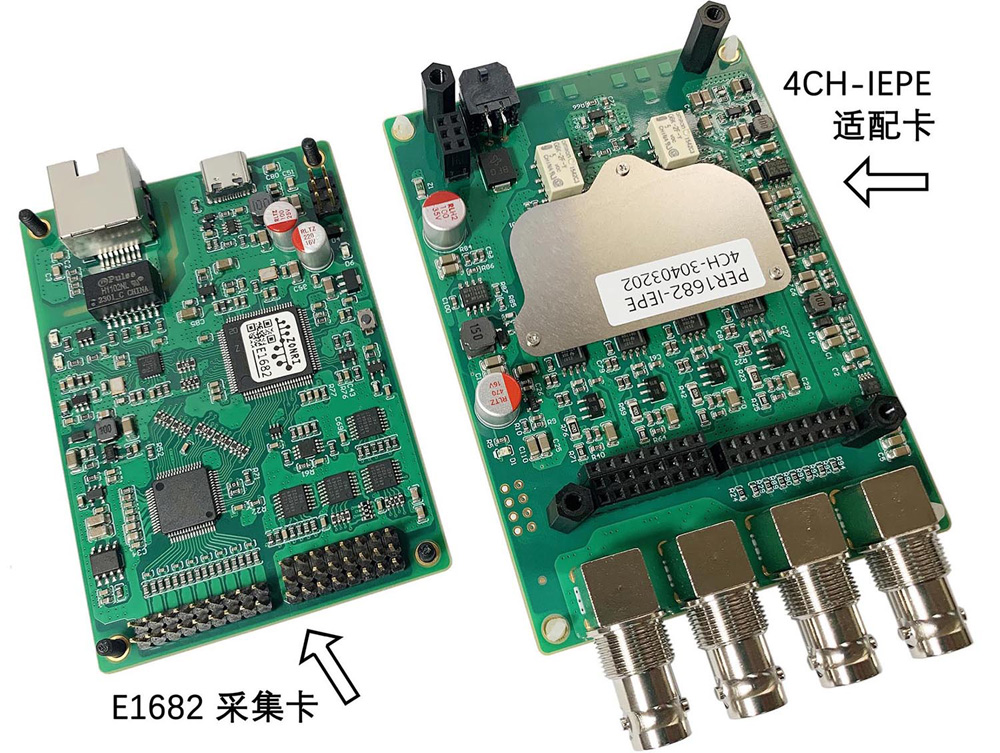

4-channel IEPE/CCLD acquisition card, parallel sampling
16Bit, 4 Channels; 2Ksps~200Ksps (60000 sampling frequency points)
15KHz or 22KHz -3DB analog signal bandwidth, large signal rise time<40uS

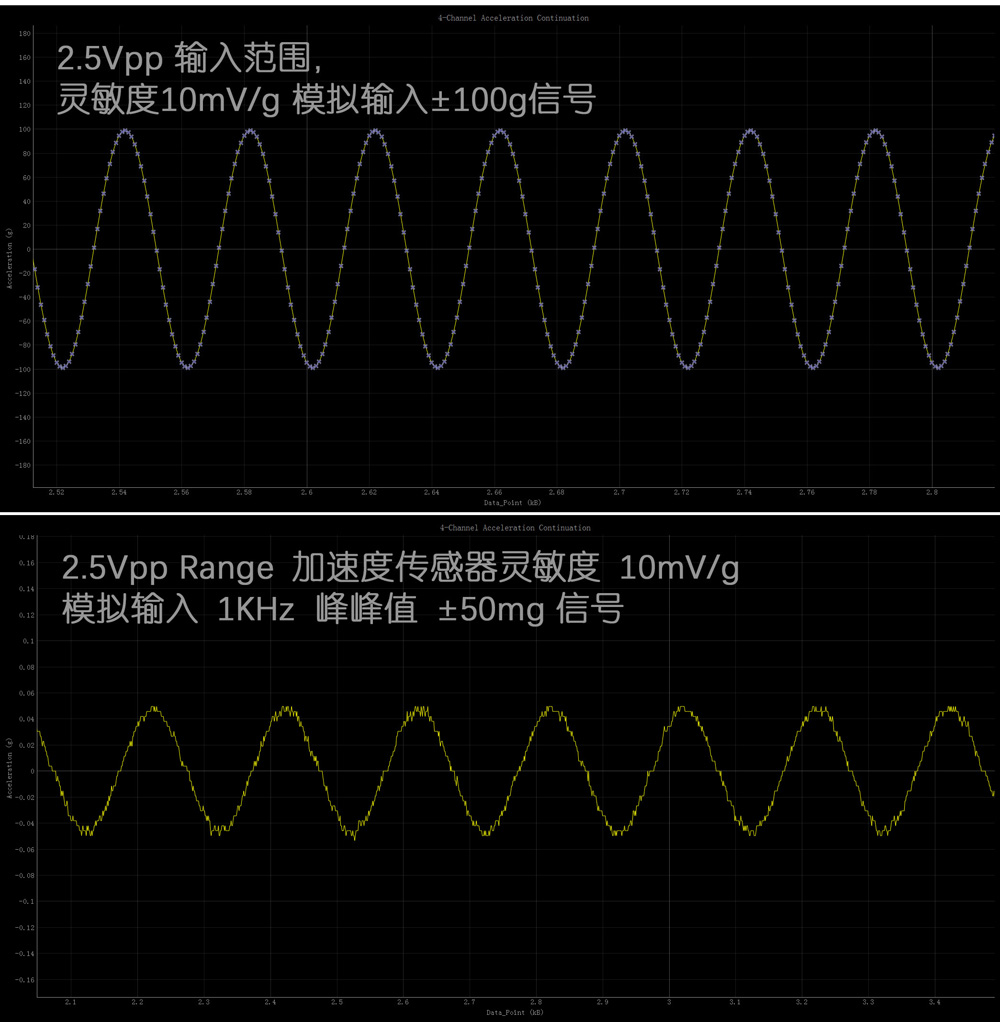

Two levels of gain can be set, with a 2.5Vpp signal input range and a 12.5Vpp signal input range

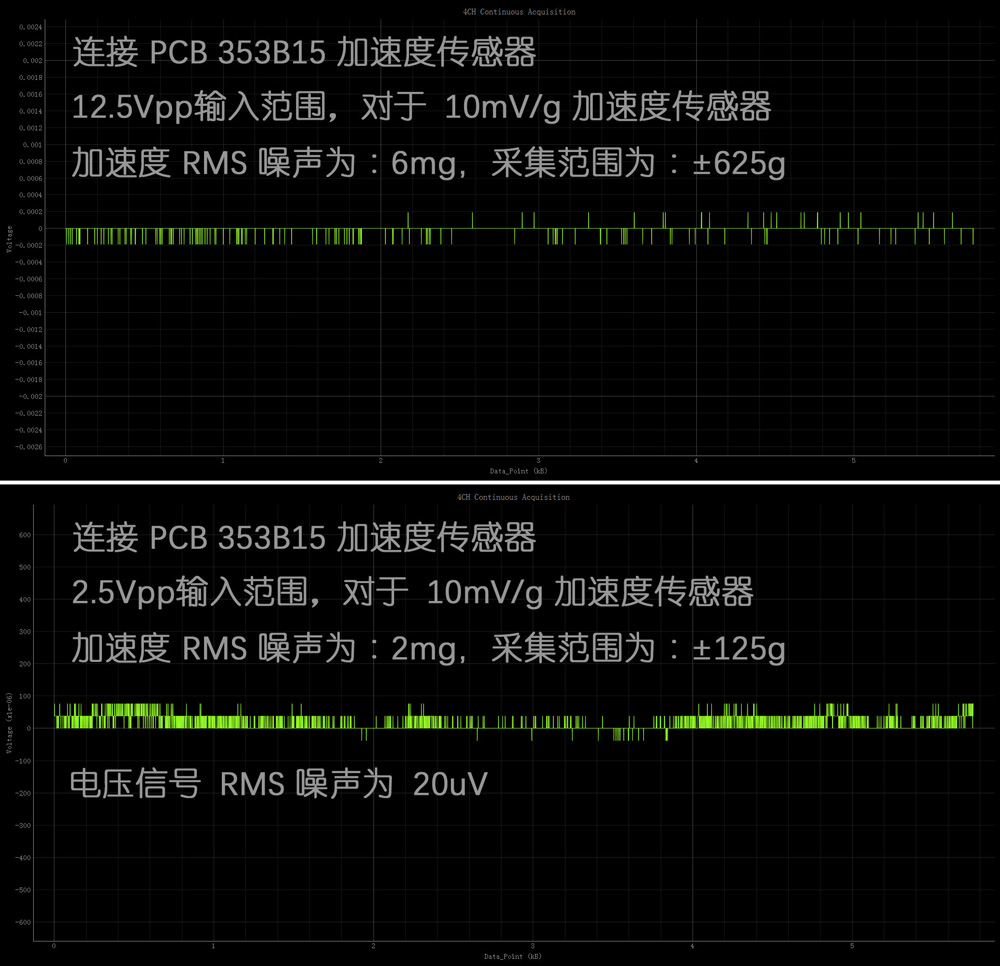

When the input range is 2.5V, the RMS noise is 22uV, and when the input range is 12.5V, the RMS noise is 120uV
4mA constant current source, floating voltage of 22VDC
MX3.0 interface power supply, with a supply voltage of 9-26VDC. When supplied with 12V, the typical supply current is 180mA
Accurate gain and amplitude accuracy (amplitude accuracy within the passband is better than 0.5%)
Low frequency -3DB bandwidth of 0.36Hz

Question: What is the maximum sampling rate and data bandwidth?
Answer: The maximum sampling rate is 200Ksps, with 4-channel parallel sampling (all 4 channels are 200Ksps), supporting full rate continuous acquisition and transmission of all channels. The Ethernet data volume at the highest sampling rate is 1.6 MByte/Senond.
Question: What upper computer is used and does it support Labview?
Answer: Supports Labview, and all operations on E1682 are performed through Ethernet interface (TCP/IP) protocol.
