Product information:

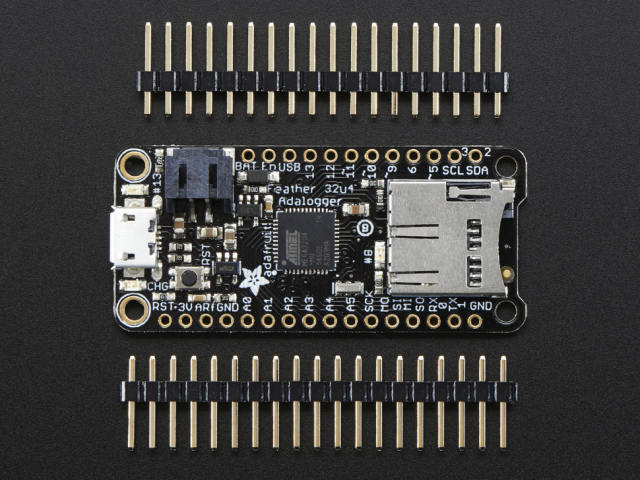

Feather 32u4 Adalogger - We use a "all-in-one" data logger (or data reader) with built-in USB and battery charging capabilities. Its Adafruit Feather 32u4 comes with a ready microSD card slot!
The core of Feather 32u4 is the ATmega32u4 with a clock frequency of 8 MHz and a logic voltage of 3.3V. This chip has the same settings as Flora, so we have a lot of experience. The chip has 32K flash memory and 2K RAM, and comes with a built-in USB, so it not only has built-in USB to serial programming and debugging functions without the need for FTDI like chips, but it can also work like a mouse, keyboard, USB MIDI device, etc.
For ease of use in portable projects, we have added connectors to any of the 3.7V lithium polymer batteries and built-in battery charging functionality. You don't need a battery, it can run normally directly from the Micro USB connector. However, if you have a battery, you can carry it with you and plug it into a USB for charging. When Feather is available, it will automatically switch to USB power. We also connect the battery to the analog pins through a voltage divider, so you can measure and monitor the battery voltage to detect when charging is needed.
Feather 32u4 Adalogger uses the remaining extra space to add MicroSD+green LED:
Pin # 8 green LED indicator light brings you the joy of flashing
MicroSD card holder, used to add as much storage space as possible for reading or writing.
Equipped with a USB bootloader, fully assembled and tested, it allows you to quickly integrate it with Arduino IDE. We will also throw some joints so that you can weld and insert them into the solderless breadboard. Excluding Lipoly battery, MicroSD card, and USB cable
Product features:
Size 2.0 inches x 0.9 inches x 0.28 inches (51mm x 23mm x 8mm)
Weight: 5.1 grams
ATmega32u4 @ 8MHz， Equipped with 3.3V logic/power supply
3.3V regulator with peak current output of 500mA
USB native support, comes with USB Bootloader and serial port debugging
You will also receive a large number of pins -20 GPIO pins
Hardware serial, hardware I2C, hardware SPI support
7 PWM pins
10 analog inputs
Built in 100mA Lipoly charger with charging status indicator LED
Pin # 13 red LED universal flashing
Power/Enable Pin
4 installation holes
RESET
