DAC8562 DAC8563 dual channel isolated 16 bit DAC module 0-20mA ± 10V four wire voltage compensation

Name: DAC8562 DAC8563 dual channel isolated 16 bit DAC module 0-20mA ± 10V four wire voltage compensation
Brand: MicroHello
SKU: DAC856x-001
Price: 84 USD
Availability: InStock

SKU: DAC856x-001

0.0 (0)

0 Sold

$84.00 ~~$129.00~~

DAC8562 DAC8563 dual channel isolated 16 bit DAC module 0-20mA ± 10V four wire voltage compensation

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

Parameters

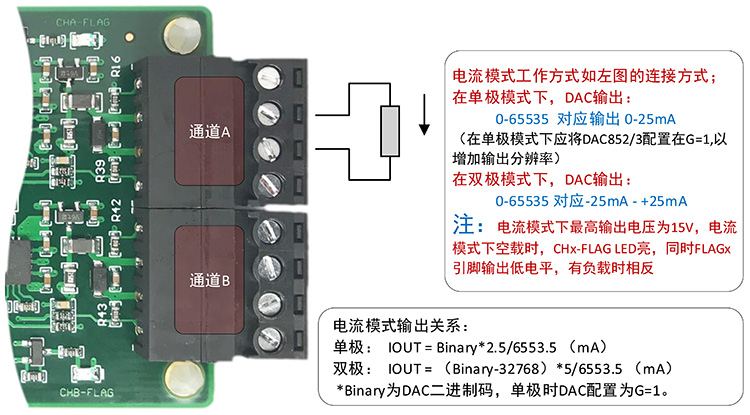

A highly robust DAC signal generation module that supports current mode output and voltage mode output
Complete anti EMI design, analog output device XTR300, optional DAC8562 or DAC8563.
The voltage output mode supports 4-wire signal output (i.e. remote sensor) to compensate for errors caused by signal line resistance.
Single power supply, wide power supply voltage: 2.7-8VDC.
The minimum isolation voltage is 2500VDC.

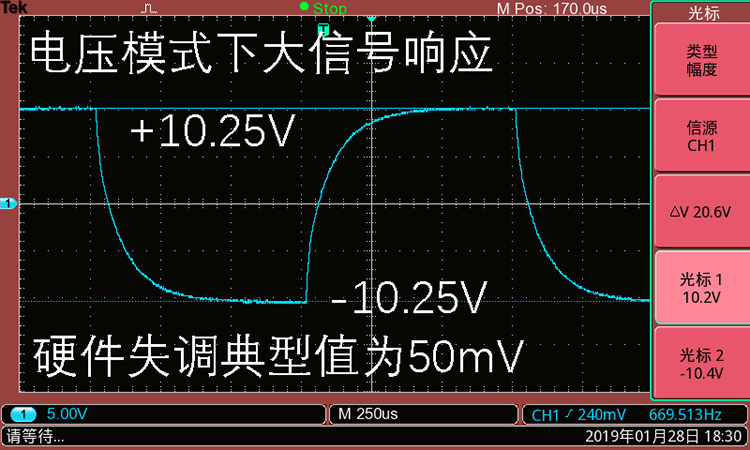

Voltage signal output range: ± 10.25V, current signal output range: ± 25mA.
Provide reference program
