BusPirate v3 is a universal bus interface that communicates with electronic devices of PC serial terminals, eliminating the need for extensive early prototype design work when using new or unknown chips.
If you are just using Bus Pirate, we still recommend v3- it is cheaper, more reliable, and has all the same main features. Compare Bus Pirate v4 vs v3. Protocol 1-Wire, I2C, SPI, JTAG, UART, MIDI, PC keyboard, HD44780 LCD, and universal 2-wire and 3-wire libraries for custom protocols.
Product features:
USB interface, USB power supply
Pin withstand voltage 5.5 V
Measurement probe with a measurement range of 0-6V
Frequency measurement range of 1Hz-40MHz
1kHz – 4MHz pulse width modulator, frequency generator
Pull up resistor for multiple voltages on the board
Onboard 3.3V and 5V power supplies and software reset
Common macro commands
SPI，I2C
Simple USB firmware update bootloader
USB ->Serial Bridge Mode
10Hz-1MHz low-speed logic analyzer
AVRDUDE customization support
AVR STK500 v2 programmer supports Perl and Python scripts
New features in v4 version
256K program space, 4 times faster than v3
Integrated onboard USB (faster)
Data Storage EEPROM Storage Settings
Software pull-up voltage selection: 3.3V, 5V, or external power supply
2 additional I/O pins
Multi purpose button.
Shipping List:

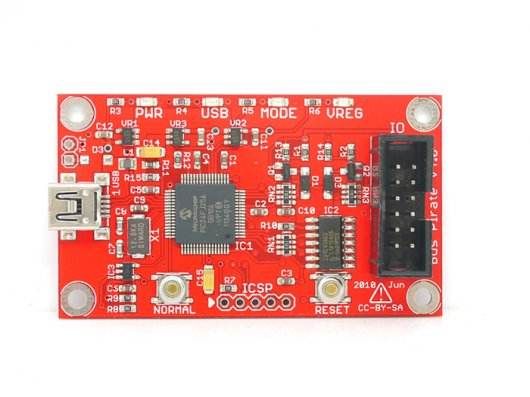

Bus Pirate v4------1PCS
Schematic(Download link)
Other Official learning Document(Download link)
