Amanero digital audio output board, WM8805 I2S to coaxial I2S to cox SPDIF USB interface, compatible with external CS8675 Amanero

SKU: 2026061401
0.0 (0)
0 Sold
$35.50 $59.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Model:

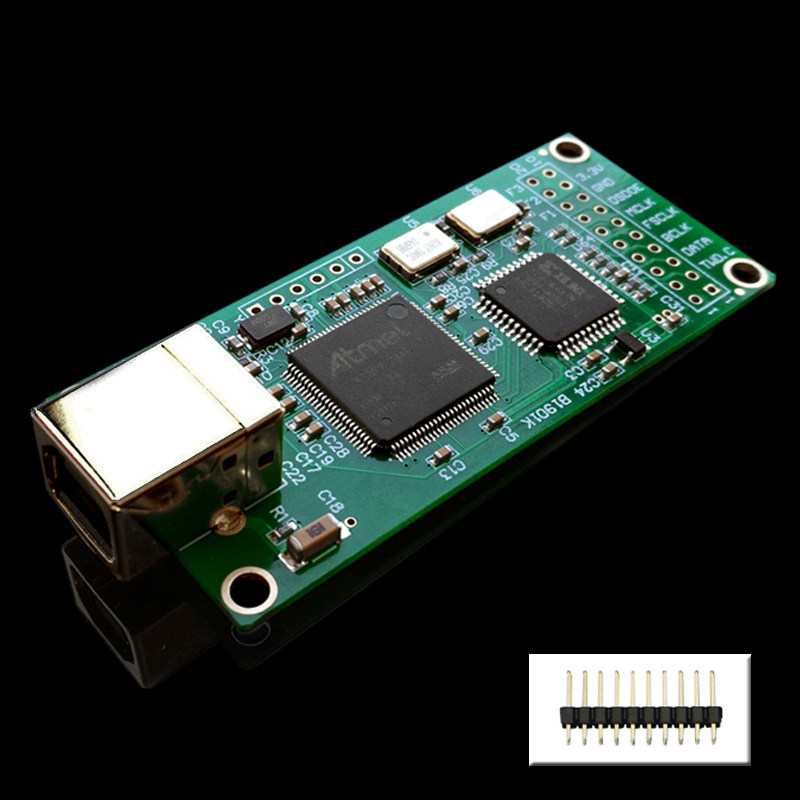

    Amanero Card

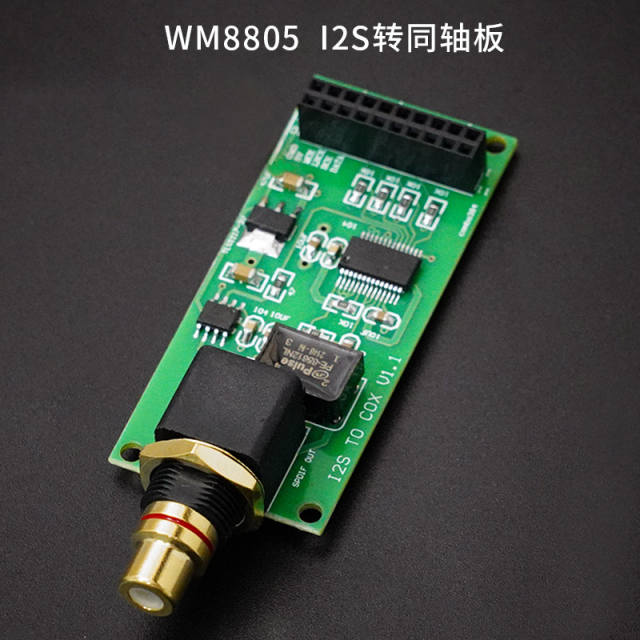

    Amanero Card + WM8805 I2S to coaxial Board
Quantity:
  • Amanero digital audio output board, WM8805 I2S to coaxial I2S to cox SPDIF USB interface, compatible with external CS8675 Amanero
  • Amanero digital audio output board, WM8805 I2S to coaxial I2S to cox SPDIF USB interface, compatible with external CS8675 Amanero
  • Amanero digital audio output board, WM8805 I2S to coaxial I2S to cox SPDIF USB interface, compatible with external CS8675 Amanero
  • Description
Supports Italian Amanero Combo384 USB interface and XMOS USB module, with options available for domestic Italian interface. The CS86755.0 module is used for Bluetooth reception and supports I2S signal conversion for PCM2706, CM108, SA9027, etc. The default I2S4 line (BCLK, LRCK, DATA, MCLK) is used. It also supports Raspberry, Bluetooth, and other clock free MCLK outputs with 3 lines of BCLK, LRCK, and DATA. MCLK is provided by the crystal oscillator clock on the board with a default of 24.576M, and the clock can be replaced as needed. At the same time, external I2S signals can be accessed through the switching function.
PCB size: 68X30mm
Power supply: 5V (if I2S is connected to Amanero or XMOS card, 5V can be directly selected from the USB port for coaxial output format: supports up to 192K24BIT)

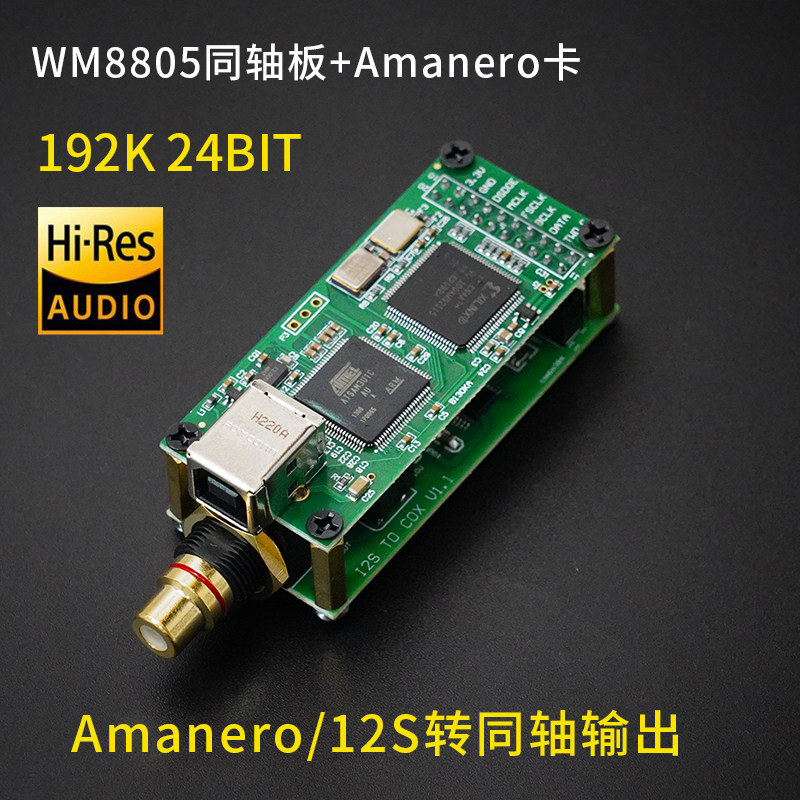

Usage note: The main image is Amanero card+WM8805 coaxial conversion motherboard. Removing the Amanero card allows for external I2S devices, such as CS8675 Raspberry and other I2S output boards.
