Product Features
1. DV5 is a multi-functional high-fidelity player decoding board that integrates Bluetooth audio decoding, radio, TF card, and U-disk lossless music playback decoding. It is equipped with an ES9018 decoding chip.
2. Supports playback of commonly used lossless formats, such as WAV, APE, FLAC, MP3, etc.

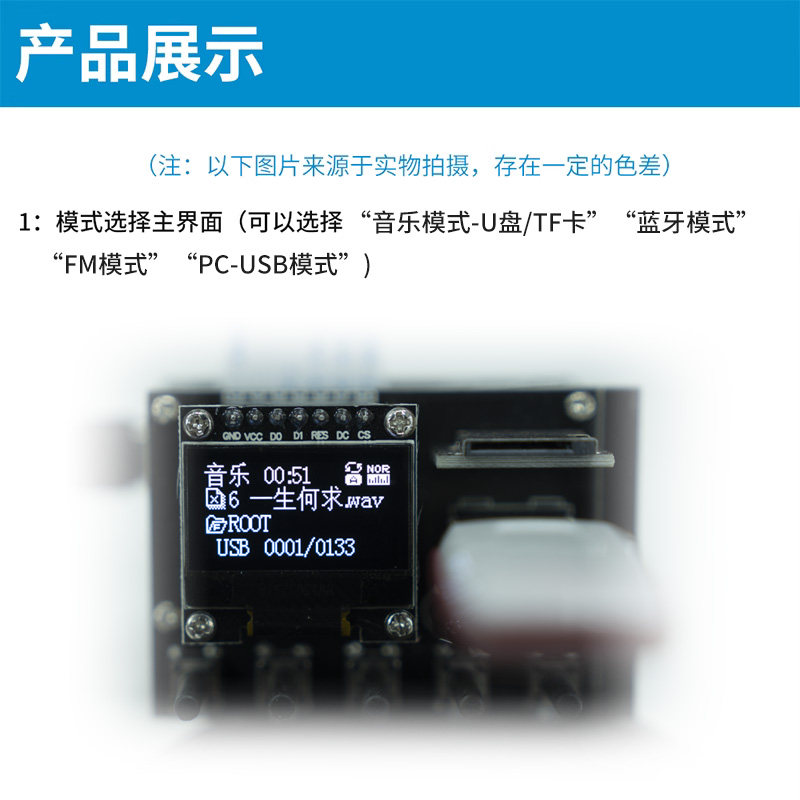

3. A 0.9-inch LCD screen is used to display the playback status and decoding-related information.
4. Supports SBC audio transmission protocol in Bluetooth mode.
5. The built-in equalizer EQ scene can be switched through remote control or APP, which can be well matched with speakers and personal listening preferences to select and adjust to the sound effect that suits you.

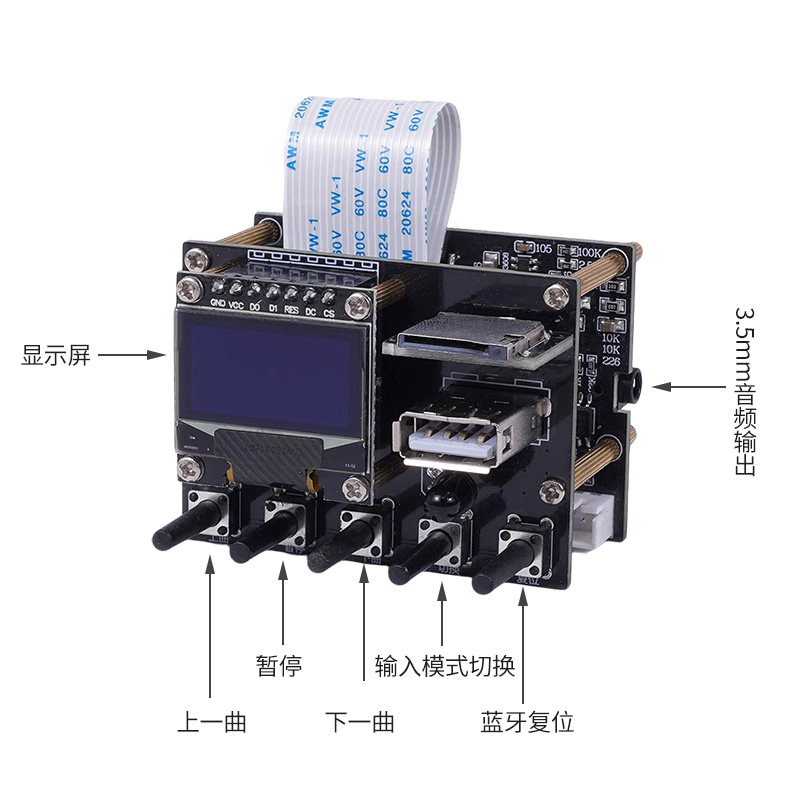

6. Equipped with the original remote control, there's no need to be confined in front of the machine; the panel buttons also allow for real-time control.
Product Specifications
Model: DV5
Decoding Chip: ES9018K2M
Bluetooth Version: HD 5.0
Supported Protocols: SBC
Audio Input: BT, USB, TF Card
Lossless Format Support: MP1, MP2, MP3, WMA, WAV, APE, FLAC
Capacity Support: Maximum support for 128GB
U-disk/TF card Sampling Rate: 44.1~48khz 24Bit
Output Level: 2V@1khz
Frequency Response Range: 20hz-20khz
Distortion Level: 0.1%
Signal-to-Noise Ratio: ≥98dB
Power Supply: TYPE-C 5V
Product Dimensions: Width 54*Depth 40*Height 50 (mm)
Weight: 42g
