2-10A LM317 gold-plated linear high-current regulated power supply board with low noise, high stability, and low internal resistance

Name: 2-10A LM317 gold-plated linear high-current regulated power supply board with low noise, high stability, and low internal resistance
Brand: MicroHello
Price: 15.5 USD
Availability: InStock

0.0 (0)

0 Sold

$15.50 ~~$28.90~~

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

Special note: This module is not equipped with a heat sink. Due to the high current at 10A, attention must be paid to heat dissipation. If the current exceeds 5A, a large heat sink must be used. Insufficient heat dissipation can cause component damage. Please note!!! I repeat, it is important to use thermal conductive silicone adhesive

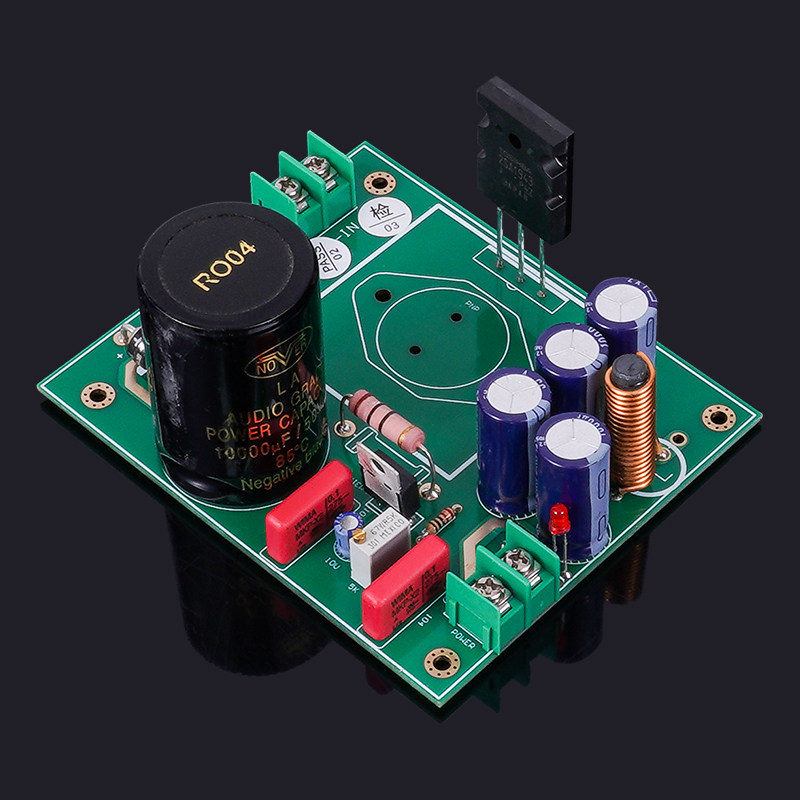

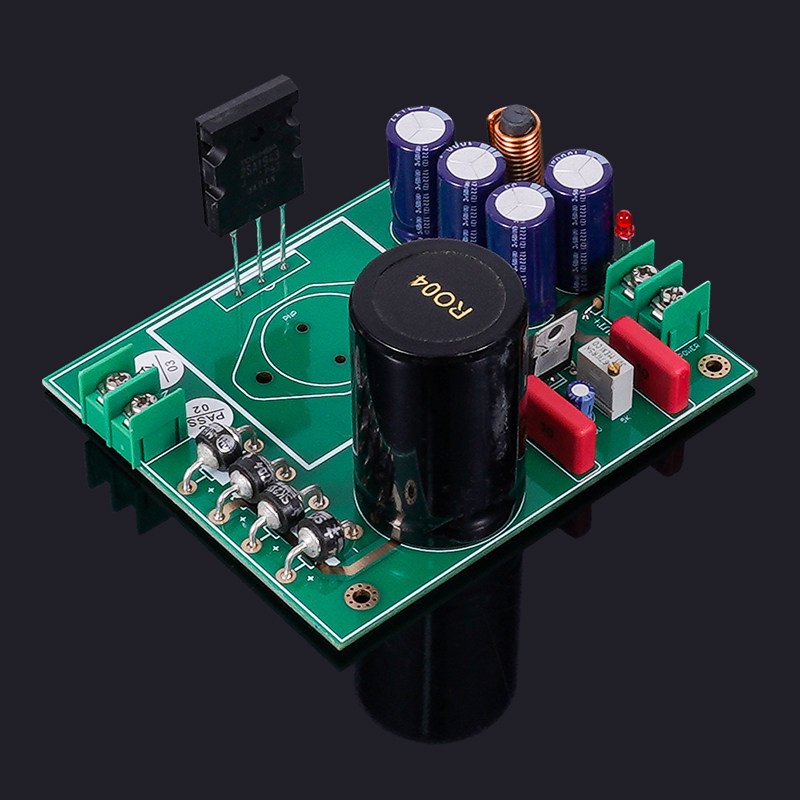

The benchmark of this kit is ON's LM317, using the gold-sealed output transistor Toshiba 2SA1943 for output. It exhibits excellent output linearity under high current conditions, and its frequency band is wider than that of LT1083, making it highly suitable for HIFI power supplies and also for laptop power supplies. The output is further enhanced with CLC 2-stage filtering, providing purer high frequencies. It remains stable like Mount Taishan under high current output

Size: 100X88MM
Weight: approximately 123g
Input voltage: AC6V-AC33V
Output voltage: DC 3V3-DC33V
