ADS1262 ADS1263 module 32-bit ADC thermocouple weighing sensor strain RTD PT100 high-precision

Name: ADS1262 ADS1263 module 32-bit ADC thermocouple weighing sensor strain RTD PT100 high-precision
Brand: MicroHello
SKU: ADS126x-001
Price: 49.9 USD
Availability: InStock

SKU: ADS126x-001

0.0 (0)

0 Sold

$49.90 ~~$49.00~~

ADS1262 ADS1263 module 32-bit ADC thermocouple weighing sensor strain RTD PT100 high-precision

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

Basic Parameters
Resolution: 32-bit
Number of channels: 5 differential/11 single ended
Maximum sampling rate: 38ksps
Differential input voltage: ± VREF/Main
Programmable gain: 1-32

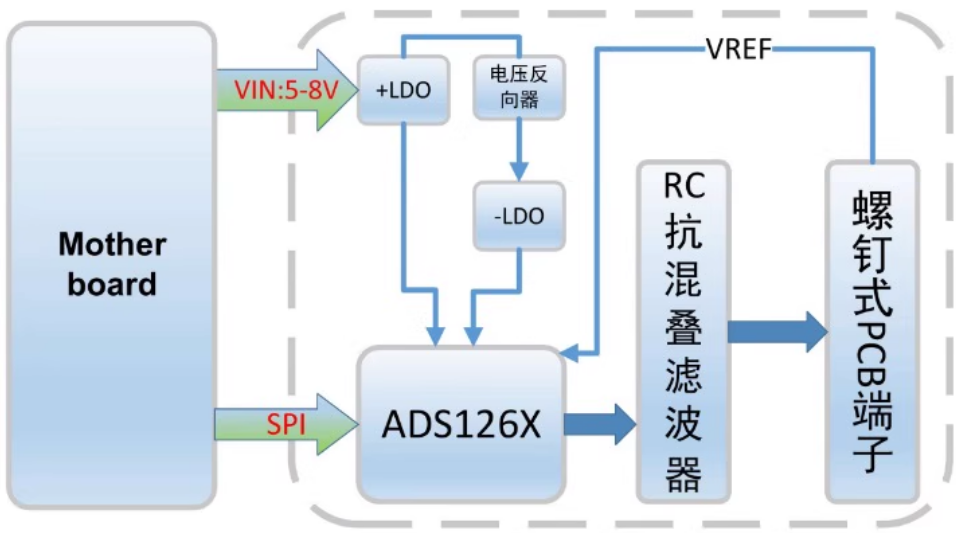

Block Diagram

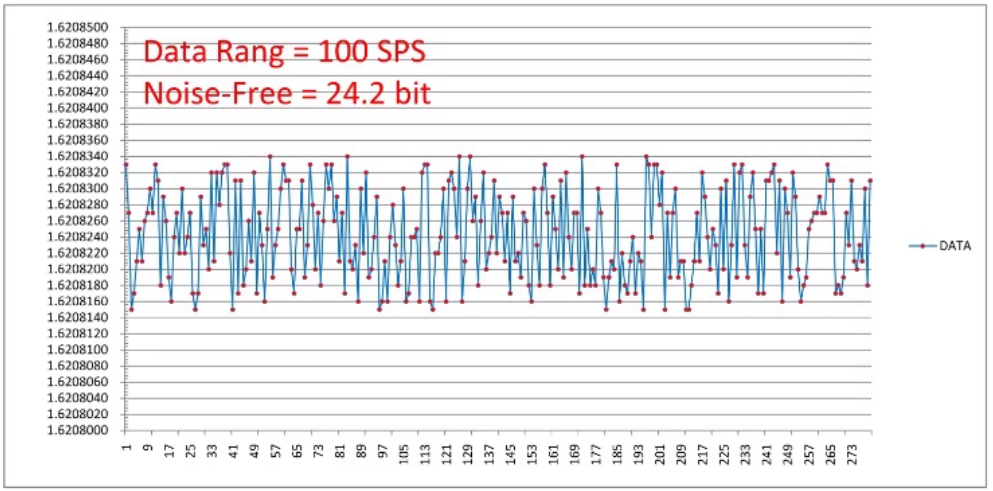

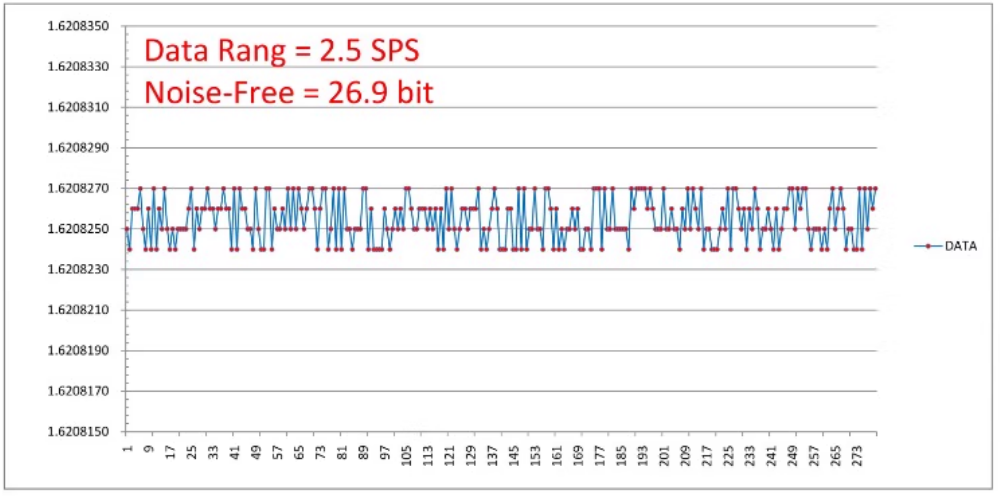

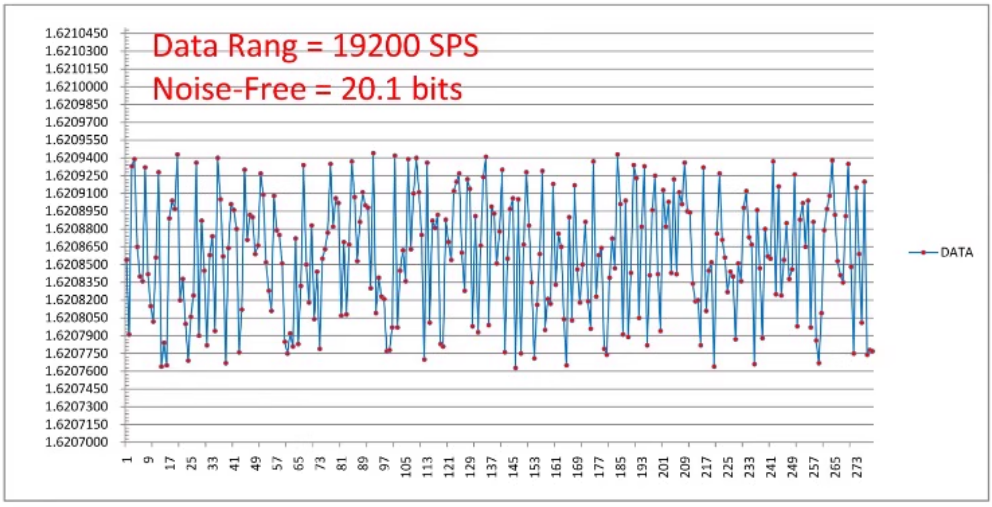

Performance Testing

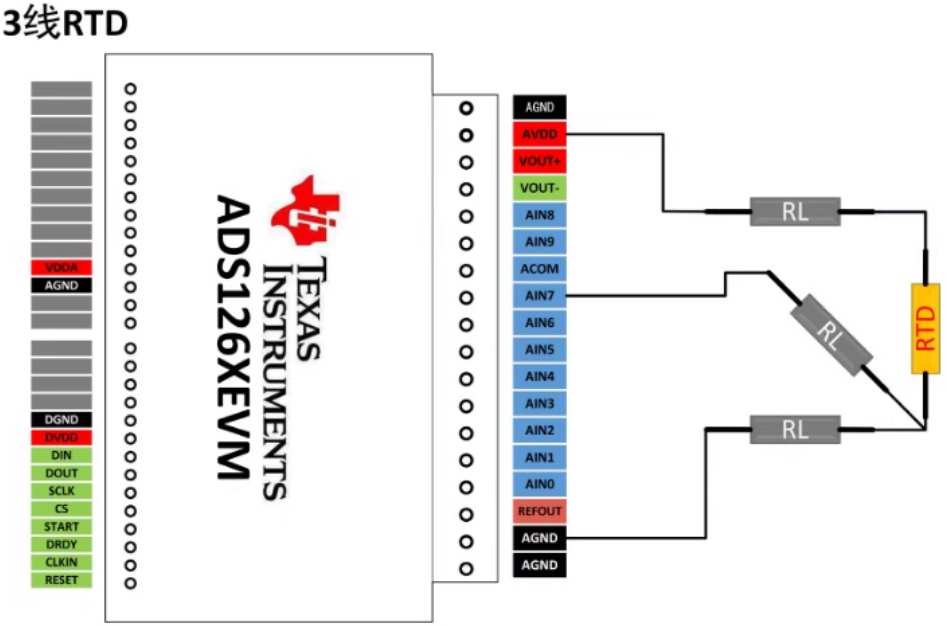

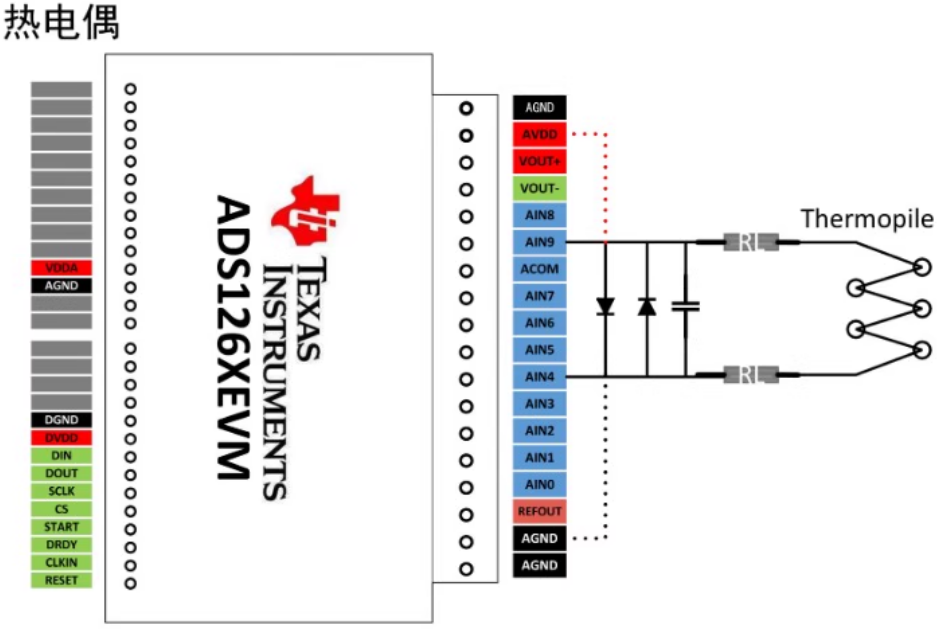

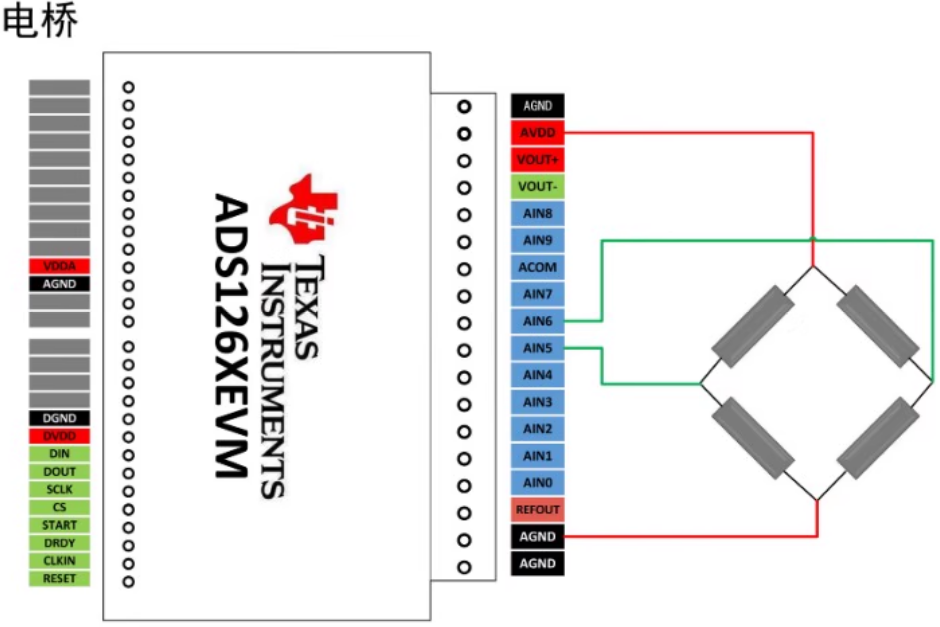

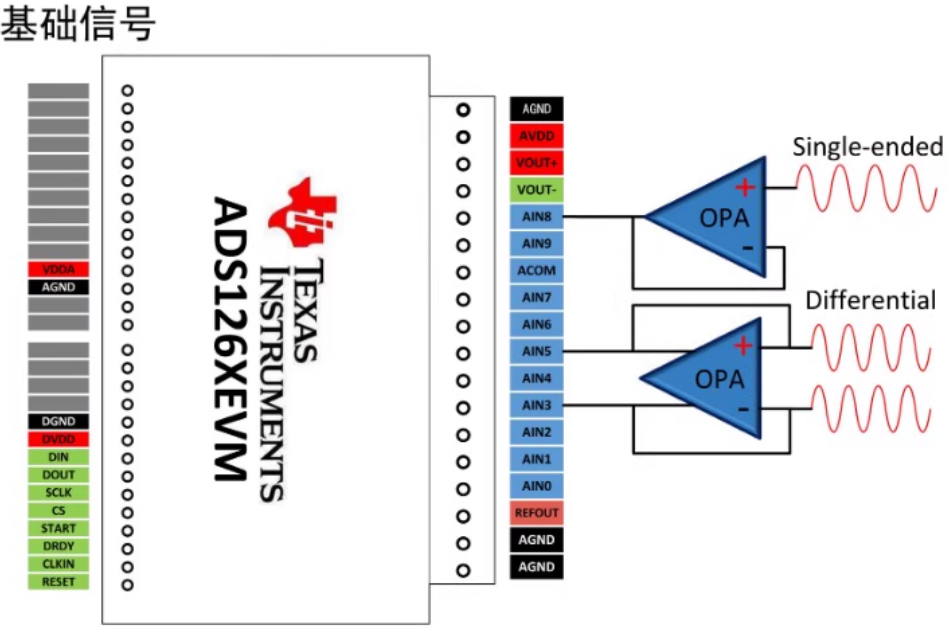

Applications

About its Motherboard
We have designed a motherboard based on STM32 microcontroller, and you can test and develop it by installing these ADC modules on this motherboard. In order to accelerate users' learning and development speed, we provide a sample program for ADC data collection. After placing an order, please contact us via email to request this routine and other related information.
