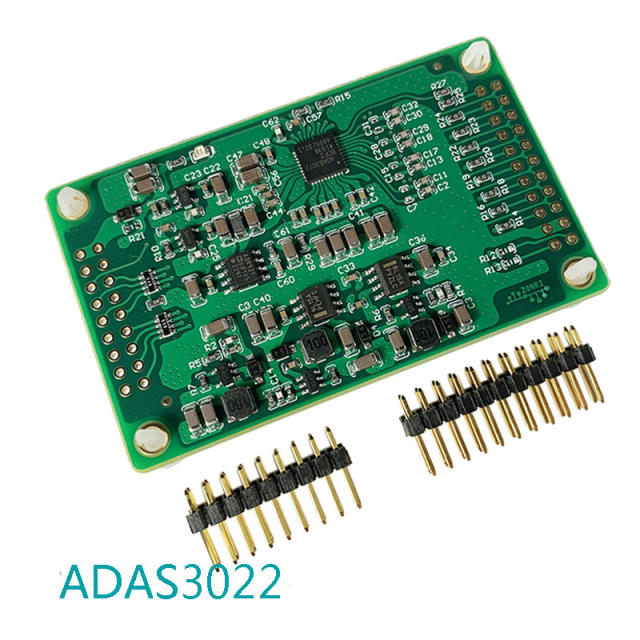

ADAS3022 ADC module 16 bit 1Msps SAR high impedance 8-channel single ended 4-differential input

Name: ADAS3022 ADC module 16 bit 1Msps SAR high impedance 8-channel single ended 4-differential input
Brand: MicroHello
SKU: ADAS3022-0001
Price: 98 USD
Availability: InStock

SKU: ADAS3022-0001

0.0 (0)

0 Sold

$98.00 ~~$149.00~~

ADAS3022 ADC module 16 bit 1Msps SAR high impedance 8-channel single ended 4-differential input

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

Parameters

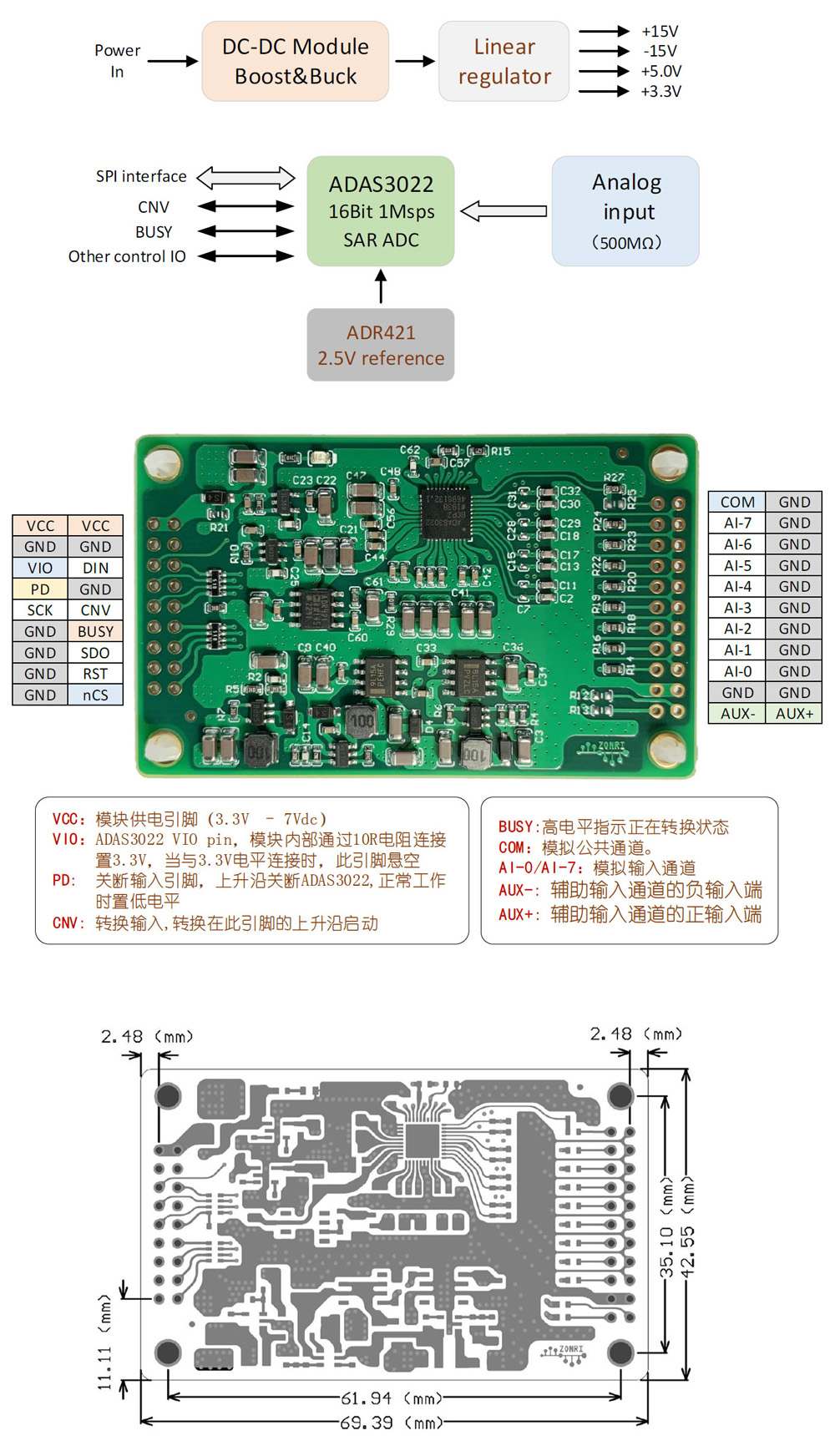

Complete ADAS3022 application module
Single power supply, 3.3-7Vdc (5VDC/230mA max)
8CH 16Bit 1Msps SAR ADC， Single end ± 12.288V, differential ± 24.576V input range
7 types of gains can be configured, with an input range of ± 0.64V at maximum gain
High input impedance of 500M Ω, differential input common mode rejection>100DB
Equipped with auxiliary channel input, directly interface with SAR ADC (auxiliary channel does not have high impedance input)
