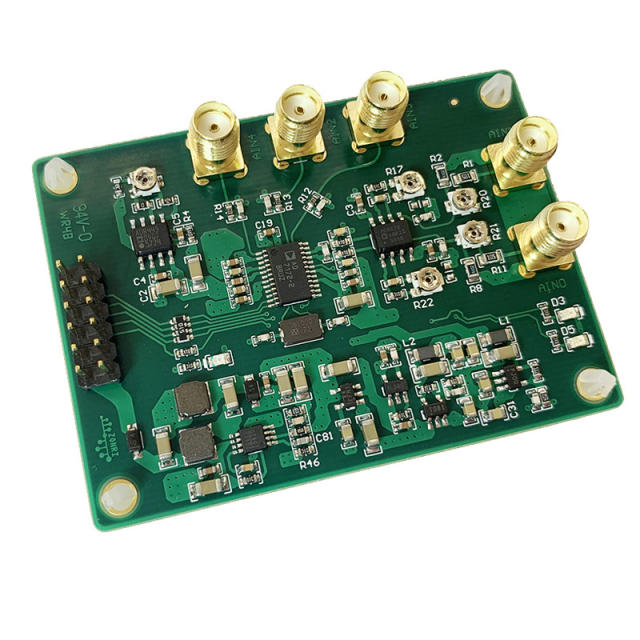

AD7172-2 ADC module 31.25Ksps 24Bit ADC module differential bipolar input

Name: AD7172-2 ADC module 31.25Ksps 24Bit ADC module differential bipolar input
Brand: MicroHello
SKU: AD7172-2-0001
Price: 80 USD
Availability: InStock

SKU: AD7172-2-0001

0.0 (0)

1 Sold

$80.00 ~~$159.00~~

AD7172-2 ADC module 31.25Ksps 24Bit ADC module differential bipolar input

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

Parameters
Complete AD7172-2 application solution.
Achieve a noise free resolution of 24 bits at 5 sps.
Single power supply with a wide range of 2.7-8VDC, with a working current of 36mA when powered by 5V.
The highest data update rate is 31.25Ksps, with a setup time of 161us.

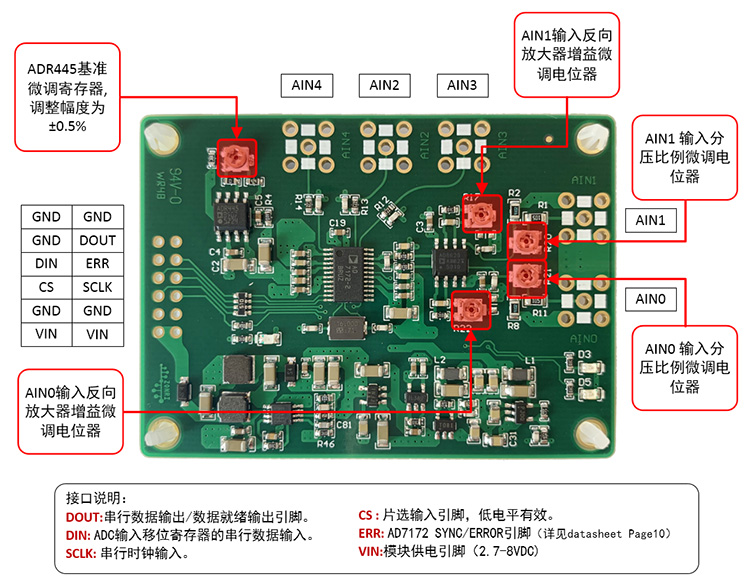

The input voltage division ratio can be fine tuned to correct common mode errors.

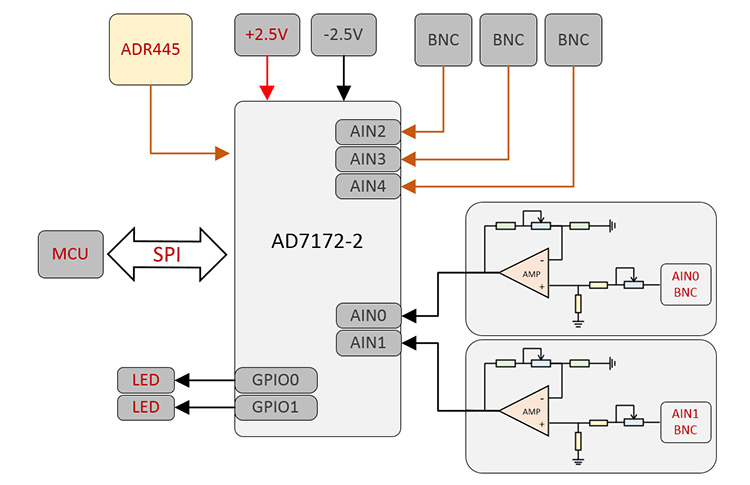

Onboard dual power rails, supporting true differential and bipolar inputs.
The default differential input range is ± 21.5V, and the common mode input range is 10.75V.
Adjustable (within a range of ± 0.5%) reference source.
