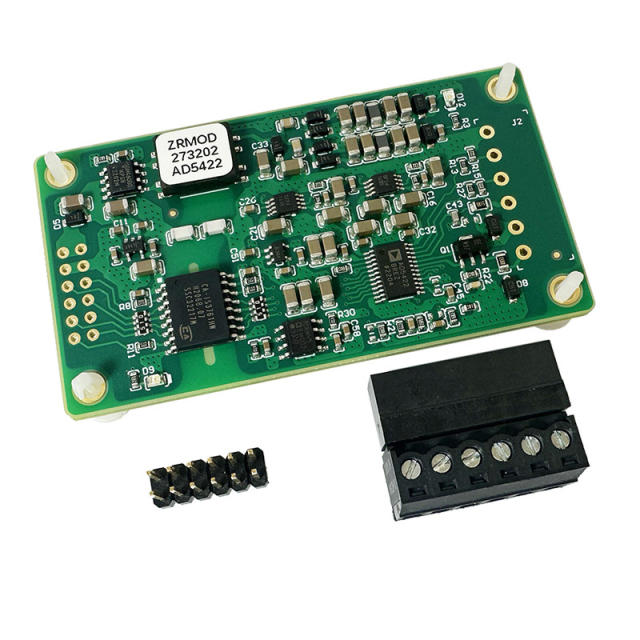

AD5422 16 Bit High Performance Current/Voltage Source Module ± 5V/± 10V/4-20mA/0-24mA

Name: AD5422 16 Bit High Performance Current/Voltage Source Module ± 5V/± 10V/4-20mA/0-24mA
Brand: MicroHello
SKU: AD5422-0001
Price: 65 USD
Availability: InStock

SKU: AD5422-0001

0.0 (0)

0 Sold

$65.00 ~~$99.00~~

AD5422 16 Bit High Performance Current/Voltage Source Module ± 5V/± 10V/4-20mA/0-24mA

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

Parameters

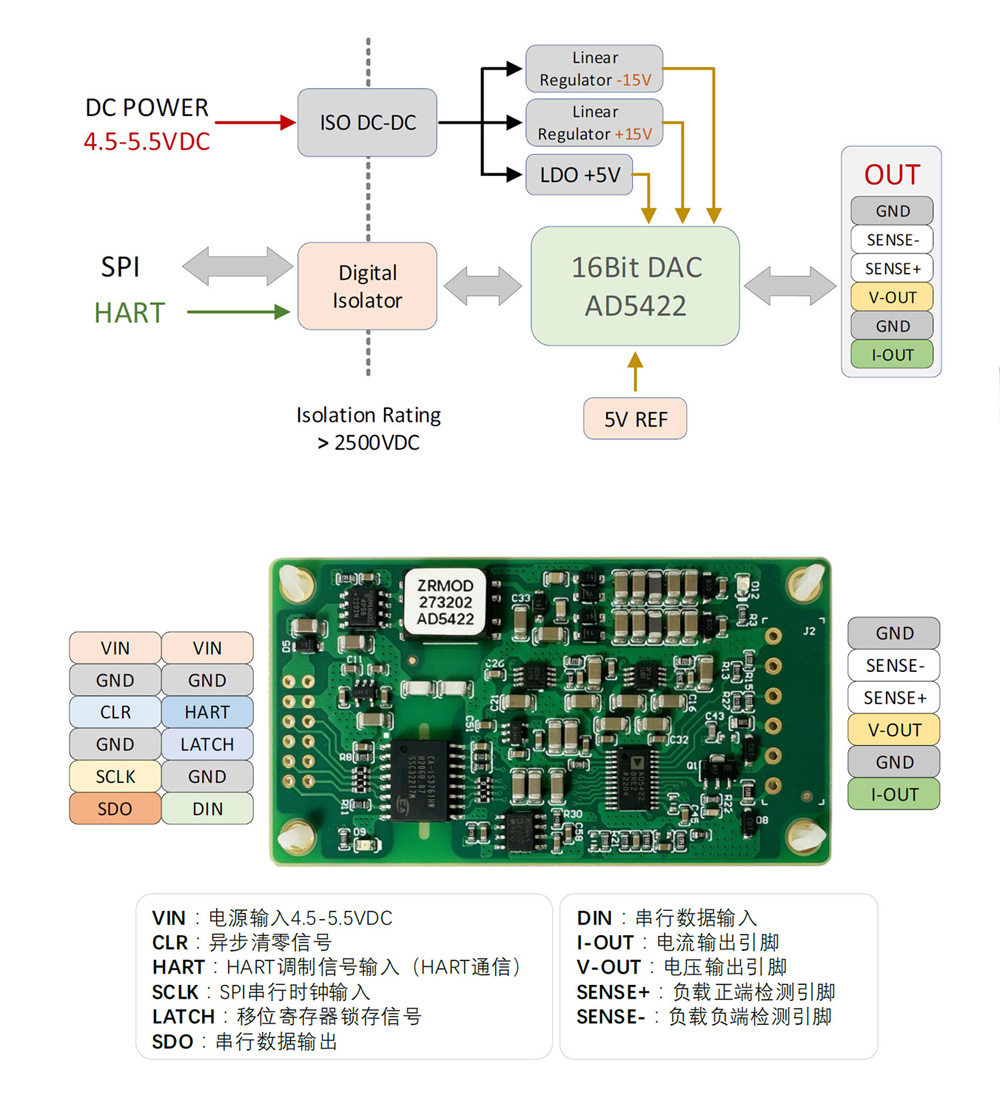

High performance isolated 16 bit current source and voltage output module
Single power supply, 4.5-5.5Vdc
Current output range: 4 mA to 20 mA, 0 mA to 20 mA, 0 mA to 24 mA
Voltage output range: 0 V to 5 V, 0 V to 10 V, ± 5 V, ± 10 V

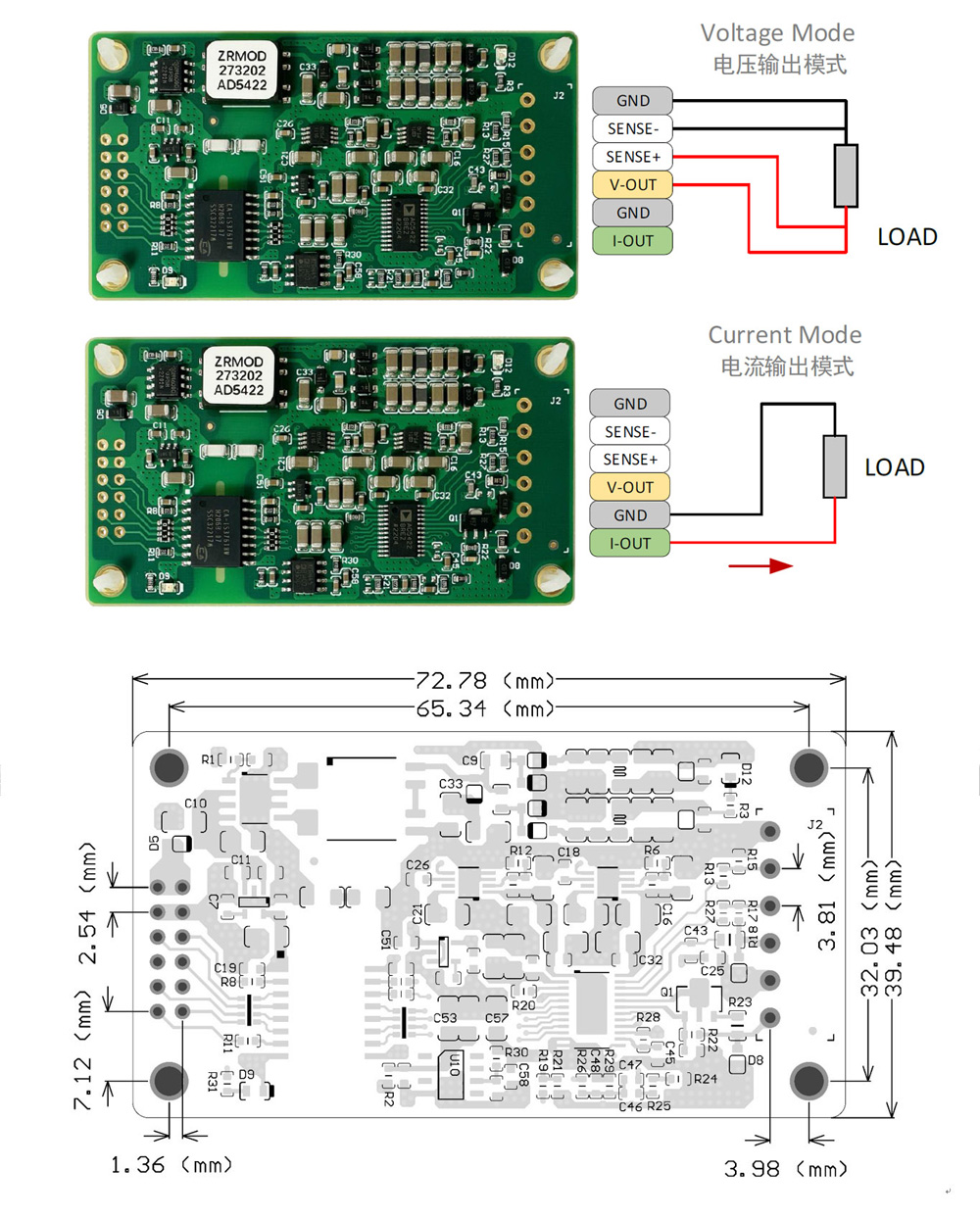

Voltage output supports 4-wire mode
>2500VDC isolation voltage
Support both on-chip and off chip benchmarks
/////////////////////////////////////////////////////////////////////////////////////////////////////
Question: Is the connector soldered?
Answer: The connector is not soldered.
Question: What is the accuracy
Answer: AD5422 has a typical total (FSR) accuracy of ± 0.01%, with an initial accuracy of 0.12% for external reference sources. Without calibration, the typical initial accuracy of the module is 0.12%, and the total drift is better than 13ppm/° C.
