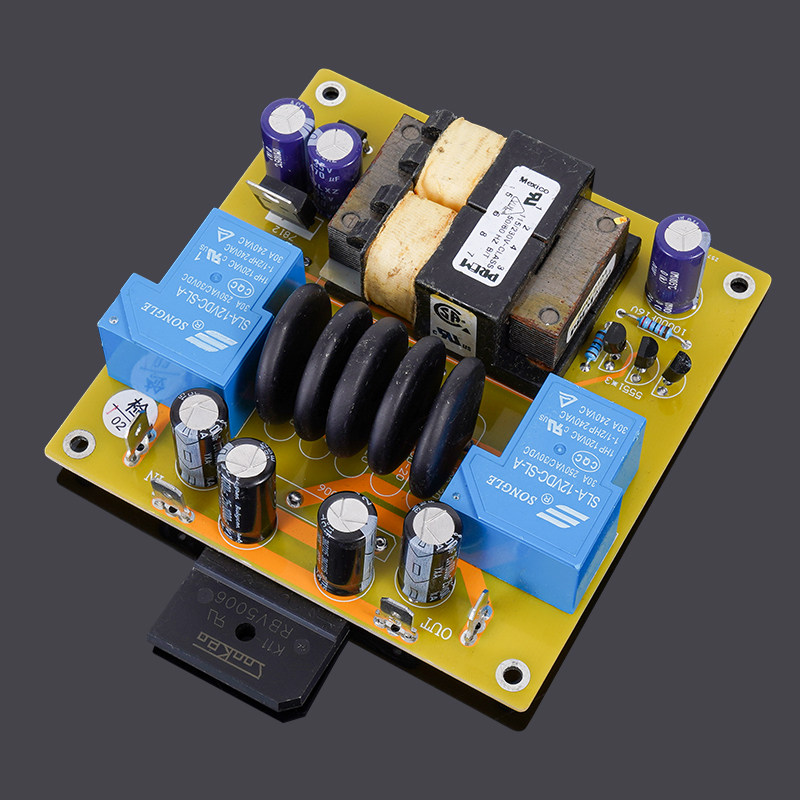

30A Soft start control board for high-power power amplifier, with power transformer for enhanced stability and reliability

Name: 30A Soft start control board for high-power power amplifier, with power transformer for enhanced stability and reliability
Brand: MicroHello
Price: 36 USD
Availability: InStock

0.0 (0)

0 Sold

$36.00 ~~$59.00~~

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

The soft-start control board used in high-power power amplifiers requires a self-locking switch for use. The on-board 6W power transformer ensures more stable and reliable operation, with a maximum current of 30A

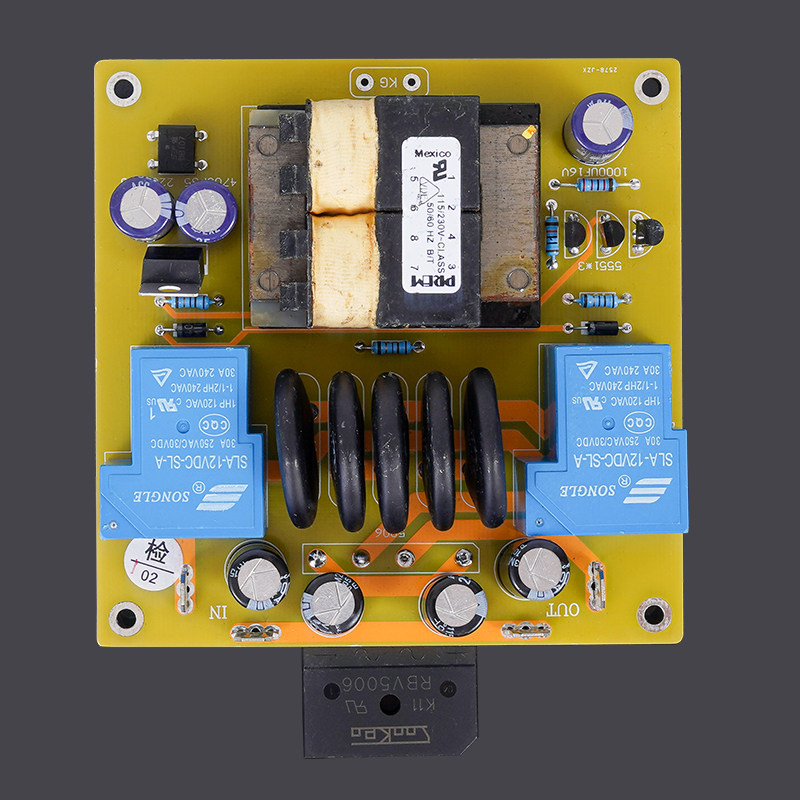

Instructions for wiring on the board:
IN: 220V power input
OUT: 220V output (to connect to the internal power transformer)
KG: Connect the on/off control switch (self-locking switch is required)

Dimensions: 100mm x 100mm x 38mm high
Weight: approximately 305g

The rectifier bridge and four capacitors constitute an AC filter circuit, and the rectifier bridge needs to be connected to the chassis base plate for heat dissipation
