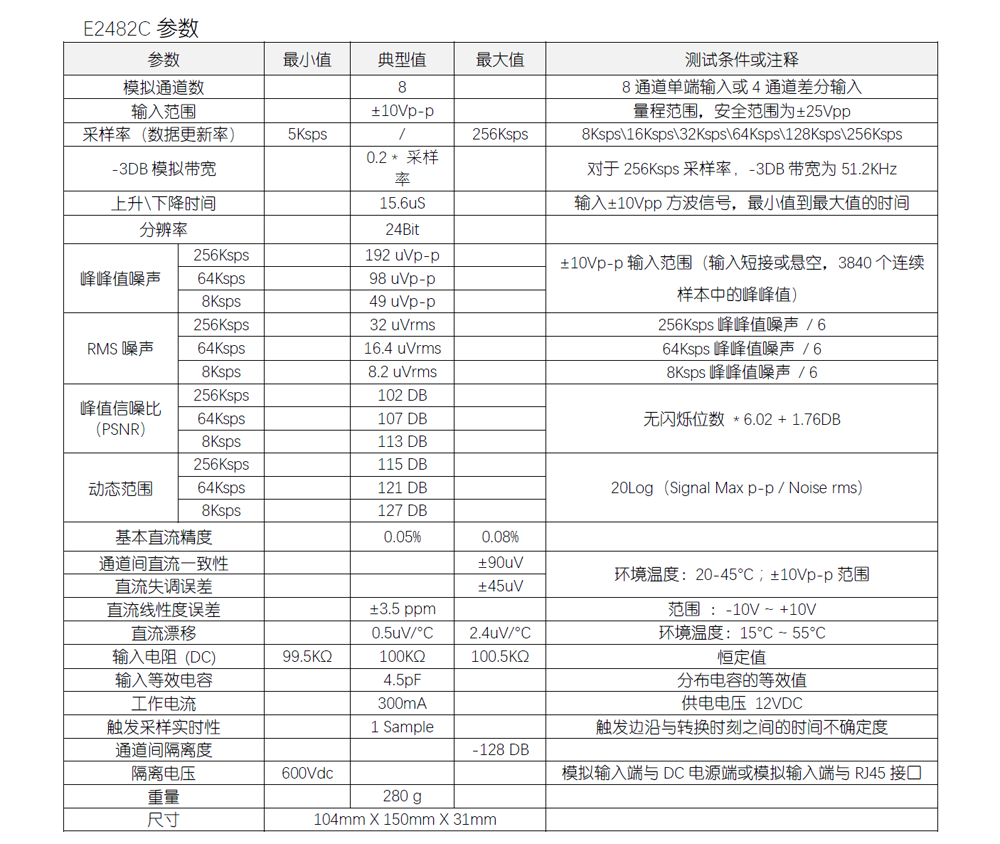

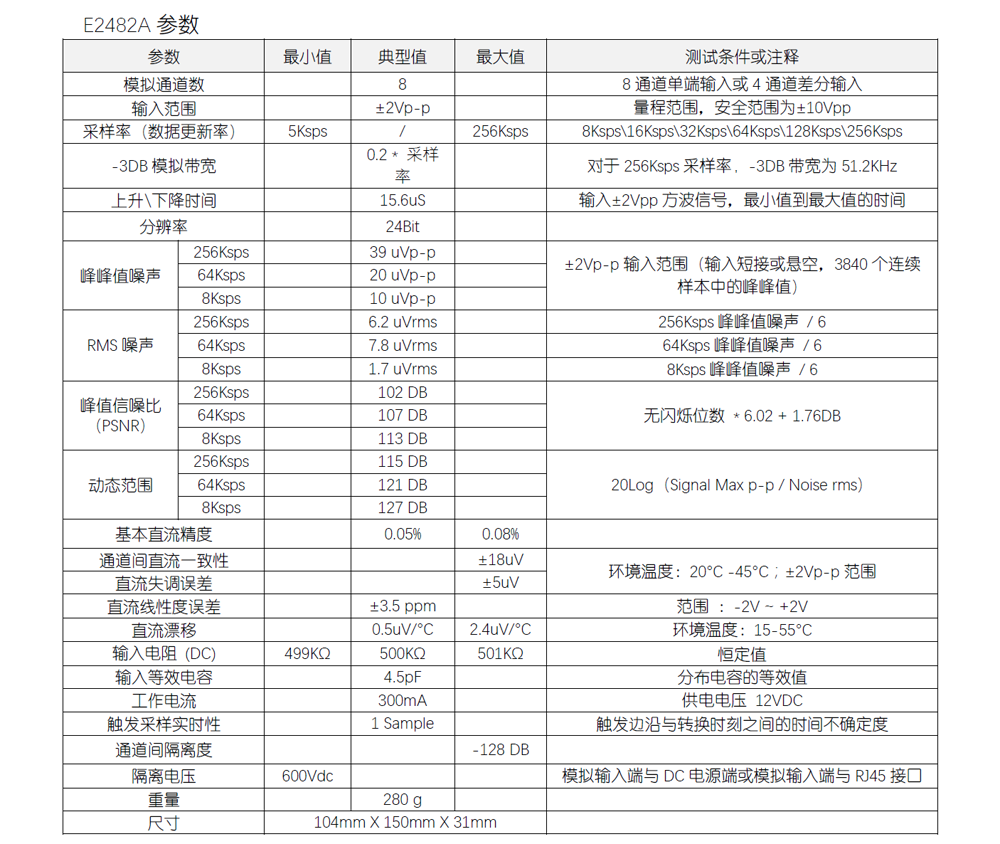

Parameters

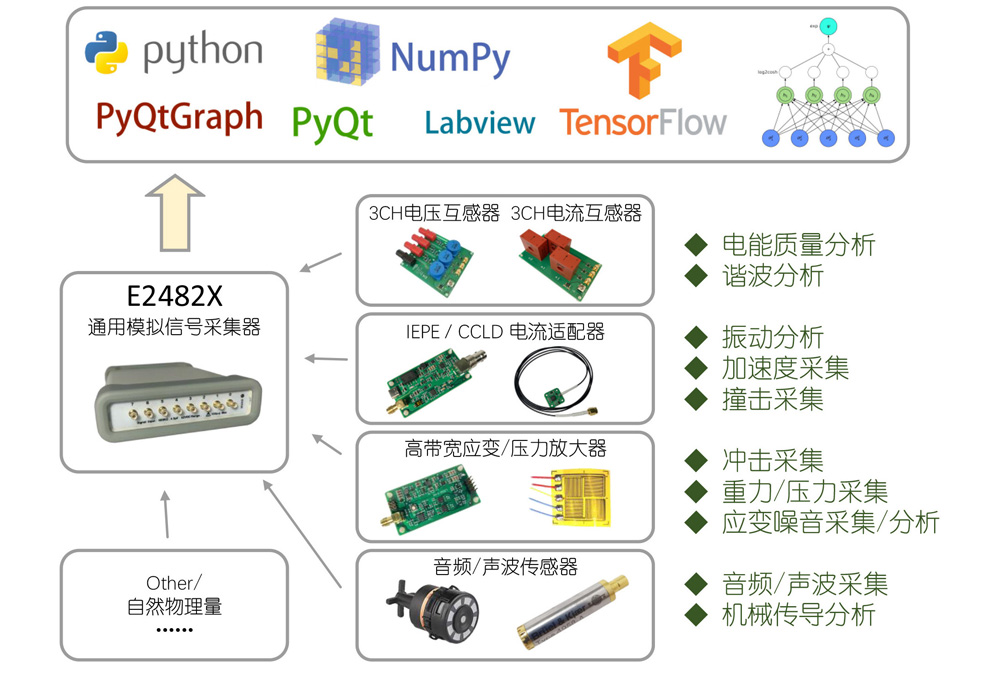

Universal analog signal collector

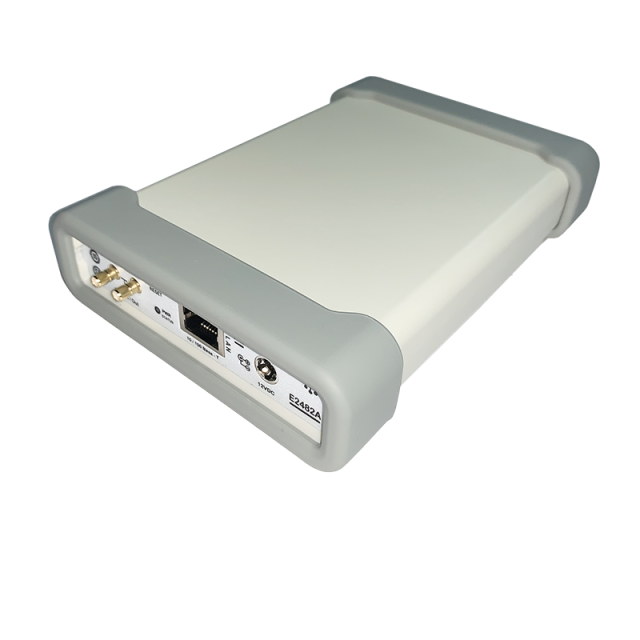

RJ45 Ethernet interface, TCP/IP protocol, data volume of 6.144 MByte/Second at 8CH/256Ksps
± 2V/± 10V input range, 24Bit/8-channel parallel 256Ksps, or 4-channel differential 256Ksps
Excellent DC accuracy and AC bandwidth (-3DB 51KHz/256ksps), calibrated on the device, user data does not require calibration
Application systems can be conveniently built through routers, switches, fiber converters, wireless bridges, and other means

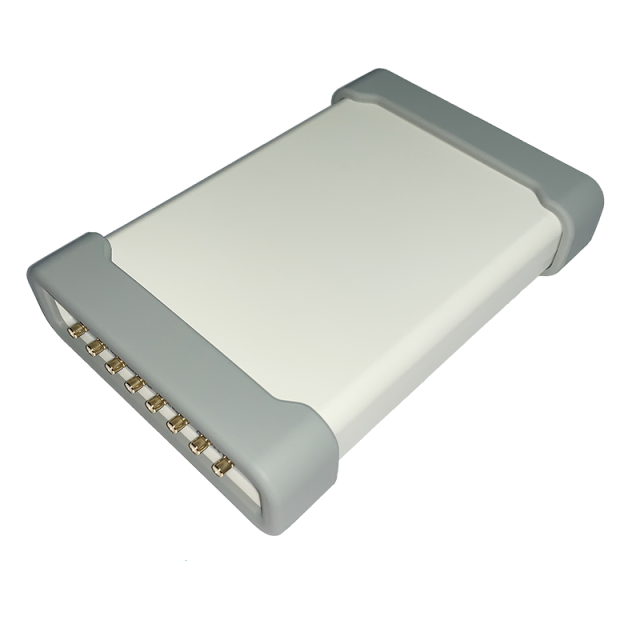

8-channel parallel sampling, with 0 phase difference and delay between channels

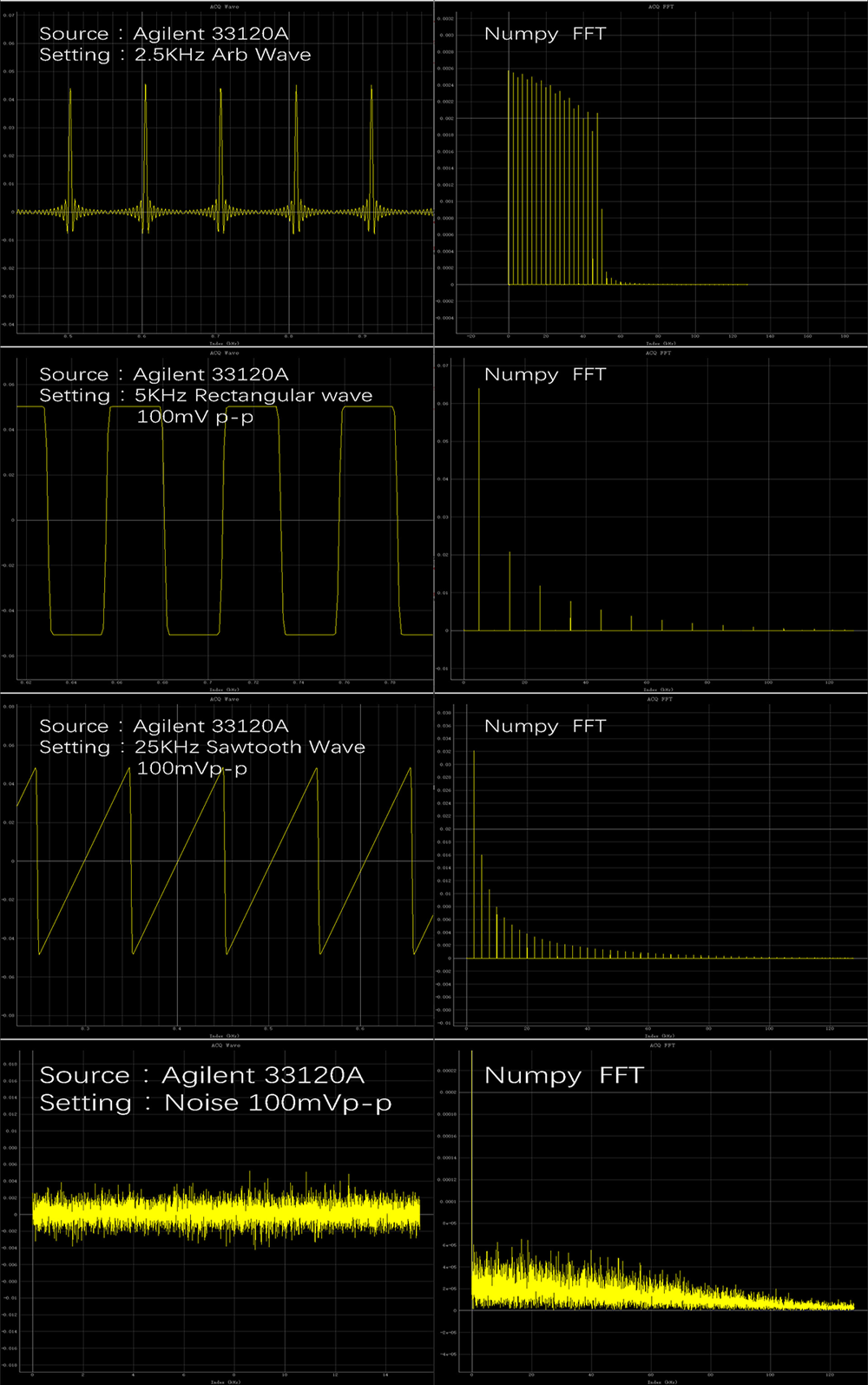

Provide Python and Qt routines for convenient data analysis and validation
5Ksps-256Ksps configurable sampling rate
////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
Question: Does it support distributed data collection?
Answer: Distributed data collection can be achieved by building a device communication network through fiber optic cables, bridges, or other Ethernet topologies.
Question: How to achieve data synchronization in remote distributed data collection?
Answer: Using GPS signals to trigger the device to start collection can achieve large-span signal synchronization, and E2482X has real-time triggering with one sampling period.
