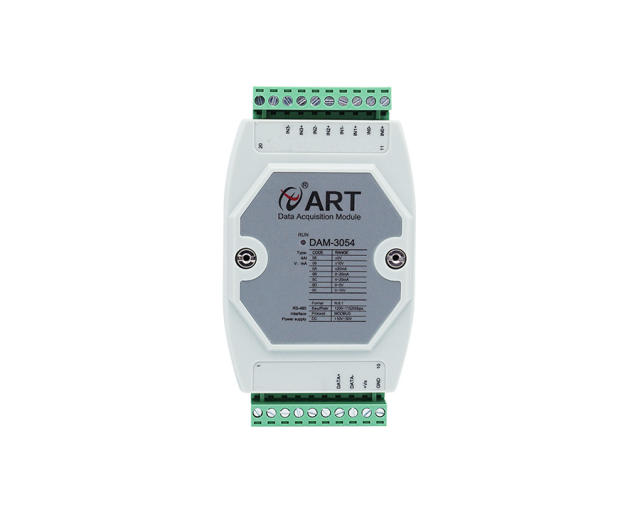

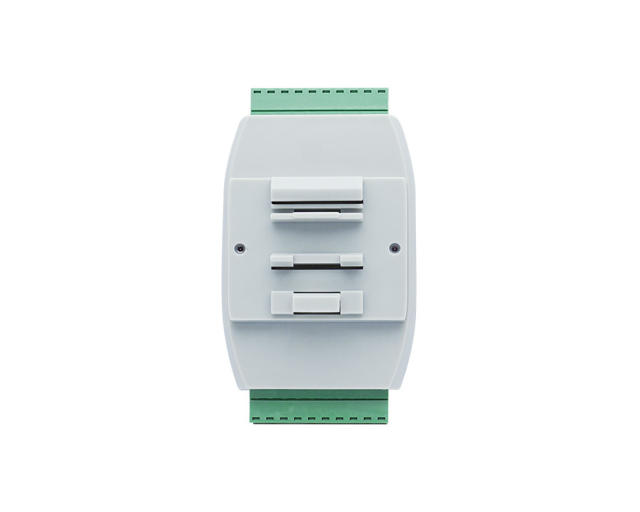

DAM-3054
DAM-3054 is a 4-channel differential analog acquisition module, it has 16-bit AD, supports RS485 communication interface, with standard ModbusRTU protocol. It is equipped with a good human-computer interface, so it is easy to use and its performance is stable.

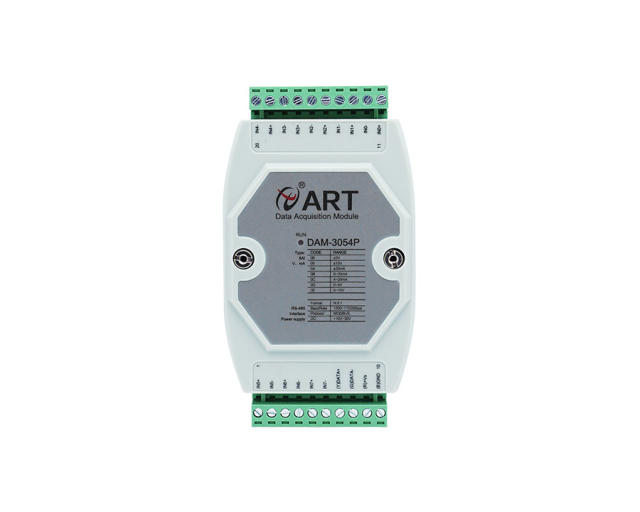

DAM-3054P
DAM-3054 is an 8-channel differential analog acquisition module, and it has 16-bit AD, supports RS485 communication interface, with standard ModbusRTU protocol. It is equipped with a good human-computer interface, so it is easy to use and its performance is stable.
|
Analog Input
|
|
Input Channel
|
DAM-3054 :4-channel differential analog inputs
|
| DAM-3054P :8-channel differential analog inputs |
|
Input Type
|
Voltage input, current input
|
|
Acquisition Range
|
The default factory value is 4～20mA
0～20mA, 4～20mA, ±20mA, 0～5V, 1～5V, 0～10V, ±5V, ±10V (the jumper should be set to voltage or current range, please refer to Section 5 of this chapter for the setting method)
|
|
Sampling Rate Note 1
|
500sps per channel
|
|
Resolution
|
16 bit
|
|
Acquisition Accuracy
|
±0.1%
|
|
Zero Drift
|
±30uV/℃
|
|
Full Range Drift
|
±60ppm/℃
|
|
Isolation Voltage
|
2500VRMS (surge protection voltage)
|
|
Range Setting
|
Individually selectable ranges for each channel
|
|
Other
|
|
Communication Interface
|
RS485
|
|
Baud Rate
|
1200～115200bps
|
|
Data Communication Rate Note 2
|
Maximum 180 times/second (single module, under 115200bps)
Maximum 24 times/second (single module, under 9600bps)
Maximum 3 times/second (single module, under 1200bps)
|
|
Watchdog
|
software watchdog
|
|
Supply Voltage
|
+10V～30VDC
|
|
Power Protection
|
Power reverse protection
|
|
Power Consumption
|
Rated 0.8W @ 24VDC
|
|
Operating Temperature
|
-10℃～＋70℃
|
|
Storage Temperature
|
-20℃～＋85℃
|
Note:
1. Sampling Rate: This parameter refers to the acquisition speed of the ADC chip
2. Data Communication Rate: This parameter refers to the communication speed between the MCU controller and the host computer.
Working principle
The upper computer sends MODBUS RTU protocol instructions to the DAM terminal through RS232/RS485/USB/RJ45/WIFI to achieve data acquisition.
