DAM-3012D/DAM-3013D 14/16-channel isolated digital input module Dry / Wet Contact data acquisition module RS485 communication interface ModbusRTU protocol

Working principle
The upper computer sends MODBUS RTU protocol instructions to the DAM terminal through RS232/RS485/USB/RJ45/WIFI to achieve data acquisition.

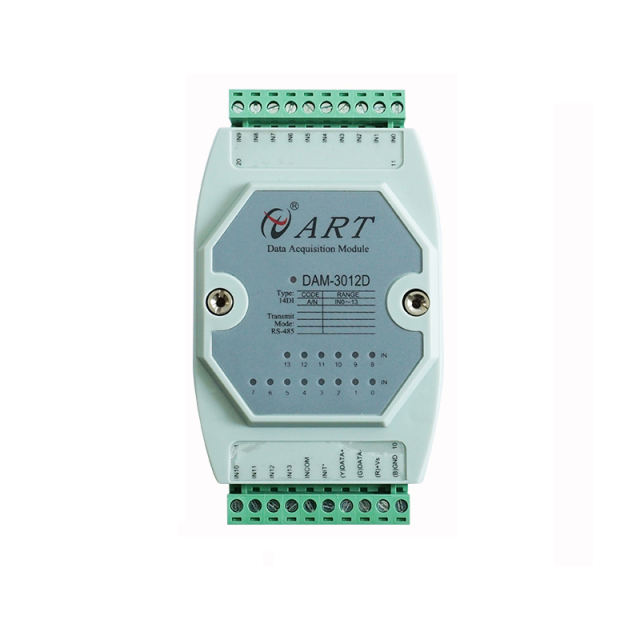

Fectures for DAM-3012D
Input: 14 channel single ended (common cathode or common anode)
Input voltage:
Wet contact: High level:+5V~+30V, LED indicator light on
                    Low level or floating: 0~+1V, LED indicator light off
Optocoupler isolation voltage: 2500VRMS (surge protection voltage)
The input channel can be used as a 100Hz counter
Built in watchdog
LED indicates operation and input status
Power supply: Unregulated+10~+30VDC
power waste: 0.6W@24VDC
Operating temperature: -10 ℃~+70 ℃
Storage temperature: -20 ℃~+85 ℃

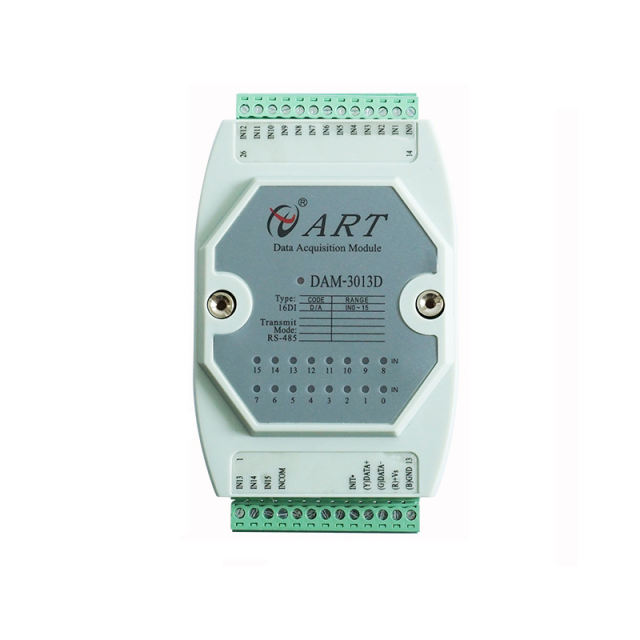

Fectures for DAM-3013D
Input: 16 channel single ended (dry or wet contact common anode)
Digital input voltage:
Wet contact: High level:+6V~+30V, LED indicator light on
                     Low level or floating: 0~+1V, LED indicator light off
Dry contact: Suspended: LED indicator light off
                     Short circuit: LED indicator light on
Isolation voltage: 3750V
The input channel can be used as a 100Hz counter
Built in watchdog
LED indicates operation and input status
Power supply: Unregulated+10~+30VDC
Power consumption: 0.7W @ 24VDC
Operating temperature: -10 ℃~+70 ℃ Storage temperature: -20 ℃~+85 ℃
