Description

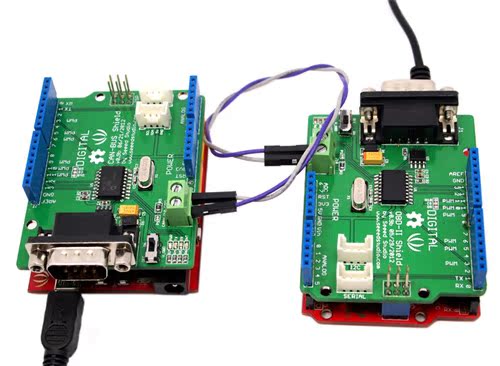

CAN-BUS is a universal industrial bus with long transmission distance, medium speed, and high reliability. It is common in modern machine tools and as a diagnostic bus for automobiles. This CAN-BUS module uses MCP2515 CAN bus controller, SPI interface, and MCP2551 CAN transceiver, making it easy to connect your Arduino and other microcontrollers. With the addition of the OBD-II conversion line and the improvement of the OBD-II library, you can establish an onboard diagnostic device or data logger.
Product features:
CAN V2.0B at speeds up to 1 Mb/s
SPI interface up to 10 MHz
Standard (11 bit) and Extended (29 bit) data and remote frames
Two receiving buffers for priority message storage
Industrial standard 9-pin sub-D connector
Two LED indicator lights
Voltage: 5V
Dimensions: 68x53mm
Net weight: 50 grams
Applications
