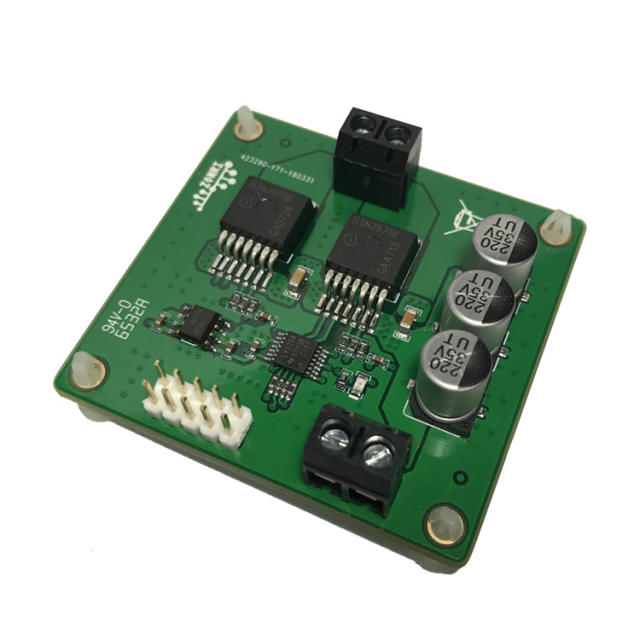

BTN7971B high-power DC motor drive H-bridge drive module

SKU: BTN7971B-001
0.0 (0)
0 Sold
$18.00 $29.00
BTN7971B high-power DC motor drive H-bridge drive module
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
  • BTN7971B high-power DC motor drive H-bridge drive module
  • Description
Parameters

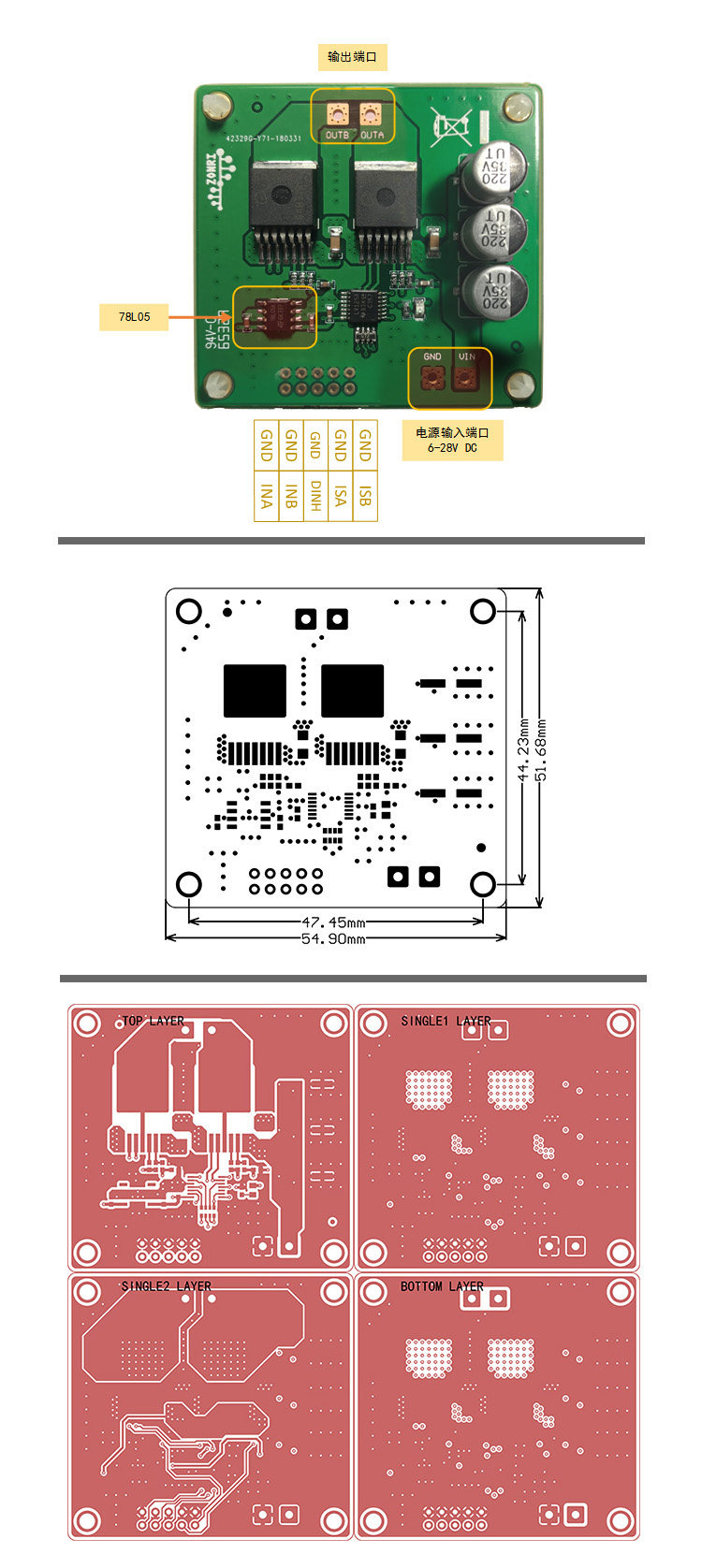

Complete BTN7971B application circuit module.
Four layer PCB board.
Rated input power range: 6-28V DC.
A total of 660uF power filter electrolytic capacitors are loaded on the board.
The PWM/EN signal passes through a buffer.
EN signal input pull-down.
5.08 spacing between power terminals and output terminals.

//////////////////////////////////////////////////////////////////////////////////////////////////////////
Question: What is the peak current of BTN7971B module?
Answer: The peak current of the BTN7971B module depends on the BTN7971B driver chip, please refer to datasheet Page-6 (peak current below 85 degrees Celsius is 90A, pulse width is 10ms).
