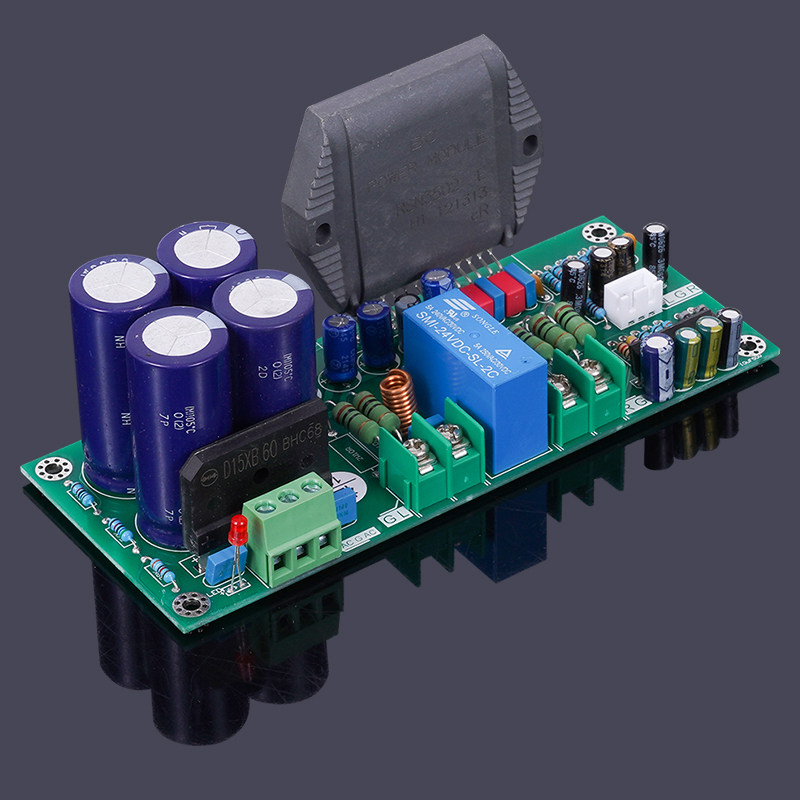

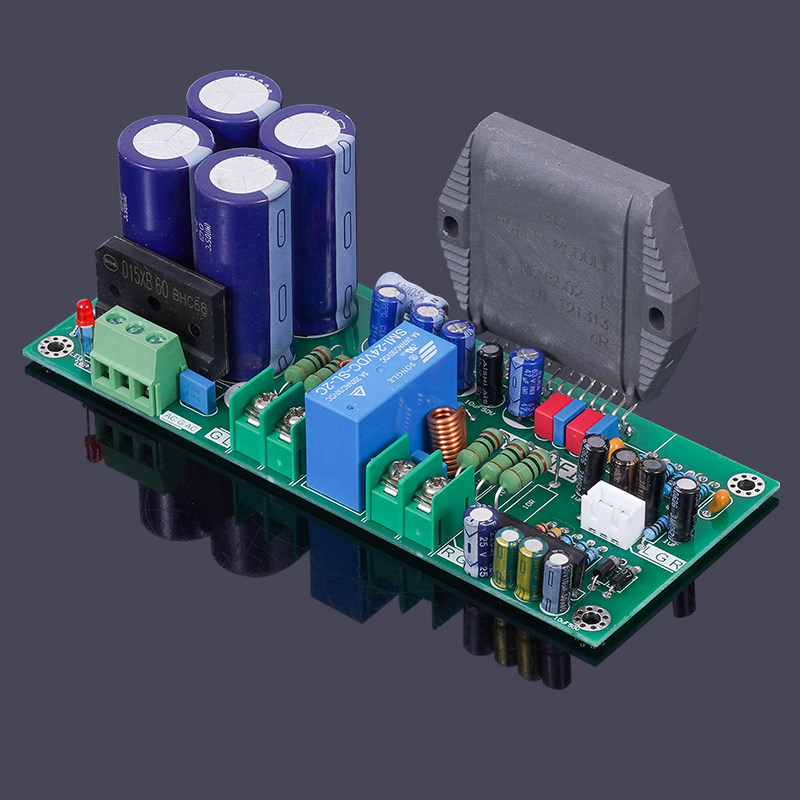

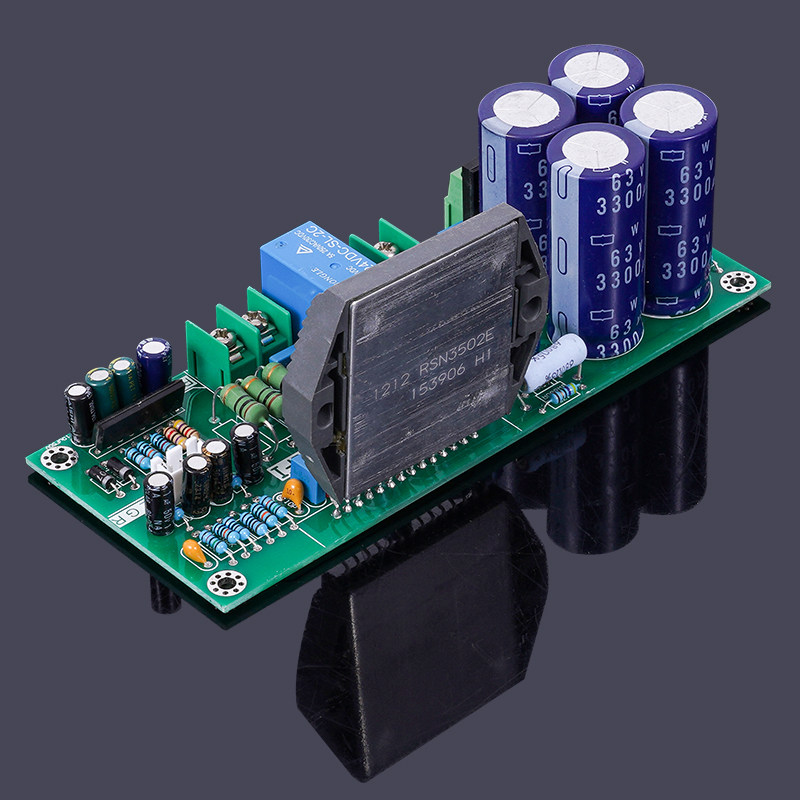

The only brand-new, original Panasonic RSN3502 power amplifier thick-film board in stock across the entire network
Using genuine, brand new, and original RSN3502 chip, packed in original box. The power amplifier board has a power of 50WX2@4 ohms and a distortion level of THD0.1%. It is Panasonic's most classic thick-film chip for power amplifiers. This is a unique circuit with high parameter specifications, rich sound details, and good power. The output power tube is a field-effect transistor. We guarantee that it is not a polished product or a later domestic imitation. There are no counterfeits of this model in China, and we guarantee that these are original
This batch of inventory thick film blocks comprises over a hundred models, with a total quantity exceeding 1.3 million pieces. All items are sourced from Sanyo's Philippine packaging and testing factory, boasting the largest stock in the world. They are absolutely not disassembled goods, not refurbished goods, nor domestic imitations. This is the end-of-line inventory from Sanyo's factory spanning nearly three decades, produced from 1982 to 2009. This batch of goods was formed for two reasons: one part is the excess inventory made for each order (to replace products for customers in case of quality issues), and the other part is the unfulfilled contract orders that remained unused in the later stages. After more than three years of testing, we have not found any defective models. These are all qualified parts with original packaging
The actual listening experience of the Panasonic thick film RSN3502 is very pleasant, and its mid-range performance is unexpected.
Basic Parameters:
Power supply voltage: AC dual 18V-33V
Output power: 60W+60W 8Ω, 80W+80W 4Ω, measured continuous maximum output power
Frequency response: 40Hz-45kHz
Distortion: 0.1%
Size: 136X56MM (Length X Width)
