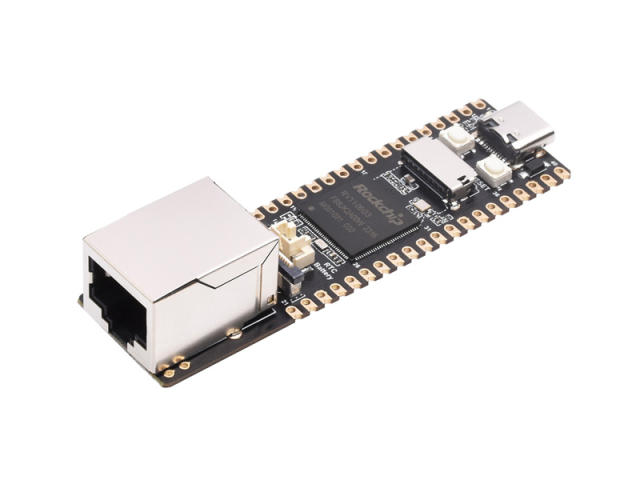

Luckfox Pico Pro/Max

Overview:Supports SPI display interfaces and MIPI CSI camera input, with a standard stamp-hole form factor. Ideal for lightweight image capture and display applications.

	Luckfox Pico Pro	Luckfox Pico Max

Chip	RV1106G2	RV1106G3
Processor	Cortex A7 1.2GHz
NPU	0.5TOPS, supports int4、in8、int16	1TOPS, supports int4、in8、int16
ISP	Max input 5M @30fps
Memory	128MB DDR3L	256MB DDR3L
Camera Interface	MIPI CSI 2-lane
USB	USB 2.0 Host/Device
GPIO	26 个 GPIO pins
Ethernet	10/100M Ethernet controller and embedded PHY
Default Storage Medium	SPI NAND FLASH(256MB)

The following link is for schematic,source,tools,datasheet,firmware,SDK, and other data for learning etc.
https://wiki.luckfox.com/Luckfox-Pico-RV1106/Downloads/
