IEPE interface conversion current source adaptation 4mA constant current source vibration/acceleration sensor interface module

SKU: IEPE-0001
0.0 (0)
0 Sold
$65.00 $119.00
IEPE interface conversion current source adaptation 4mA constant current source vibration/acceleration sensor interface module
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
  • IEPE interface conversion current source adaptation 4mA constant current source vibration/acceleration sensor interface module
  • Description
Parameters

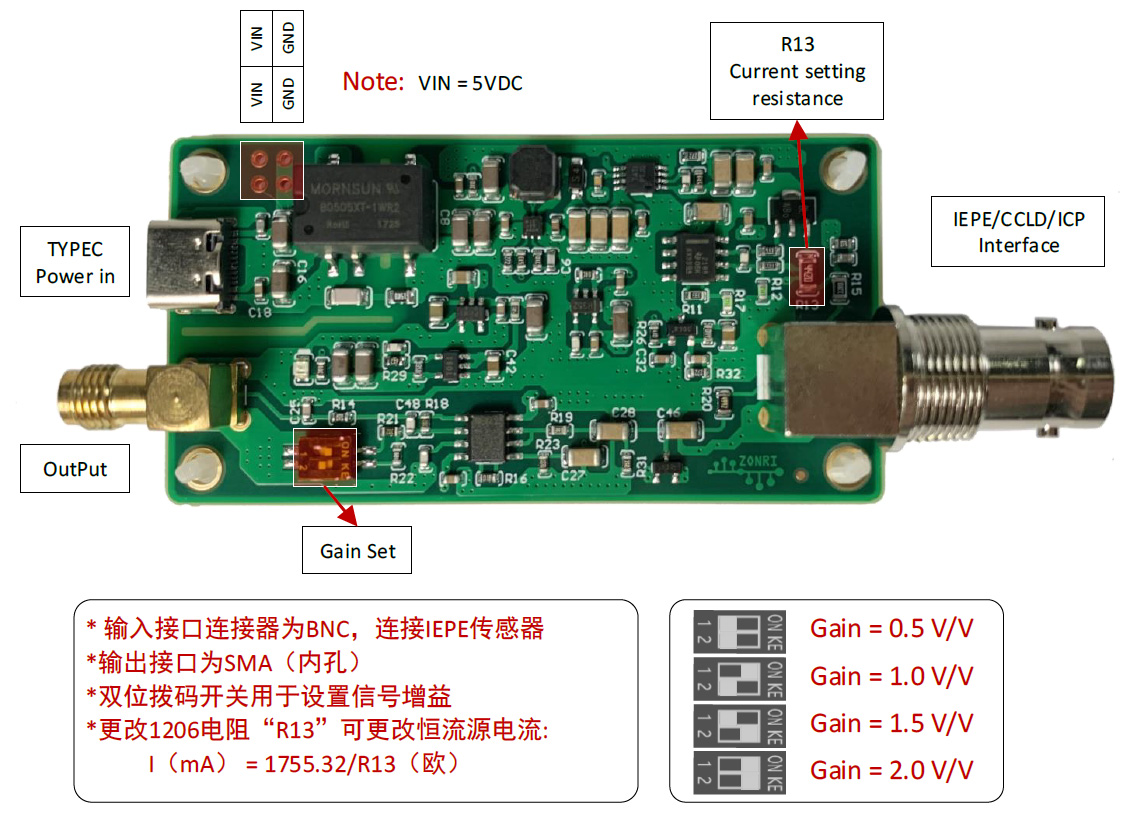

Simple and easy-to-use IEPE interface current source adaptation module
Maximum signal input range: 10Vpp
Maximum signal output range: 5Vpp
5VDC power supply, or Type-C interface power supply, with a power current of 80mA (max)
The floating voltage of the constant current source is 23.5V, and the default current is 4mA
Small signal -3DB bandwidth: 0.25Hz-1MHz; -0.5DB bandwidth: 0.4Hz-0.6MHz
The output impedance is 51R, and the minimum input impedance is 50K Ω.
