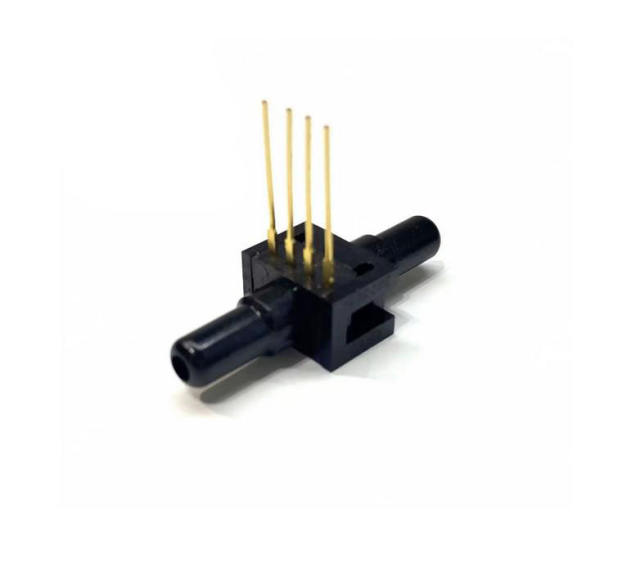

Honeywell 26PCGFA6D pressure sensor

Name: Honeywell 26PCGFA6D pressure sensor
Brand: MicroHello
SKU: 26PC-0009
Price: 69 USD
Availability: InStock

SKU: 26PC-0009

0.0 (0)

0 Sold

$69.00 ~~$89.00~~

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

If you need to place orders in bulk, please contact us:
microhello_sales@163.com

////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
Miniature Low Pressure Sensors
The 26PC Series Miniature Pressure Sensors are small, cost-effective devices intended for use with wet or dry media.
These sensors feature proven sensing technology that uses a specialized piezoresistive micromachined sensing element
to offer high performance, reliability, and accuracy. Each sensor contains four active piezoresistors that form a Wheatstone
bridge. When pressure is applied, the resistance changes and the sensor provides a milliVolt output signal that is
proportional to the input pressure.
The low power 26PC sensors are designed to accommodate pressures from 1 psi to 250 psi and have an operating
temperature range of -40 ºC to 85 ºC [-40 ºF to 185 ºF].
