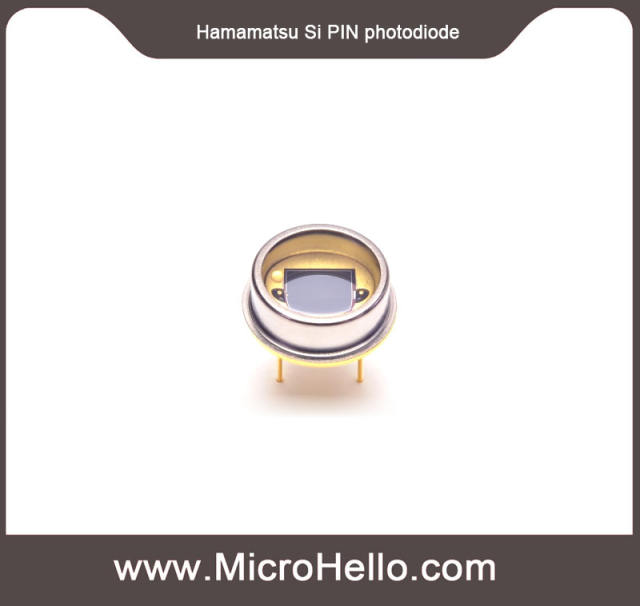

Hamamatsu S2386-8K For visible to near IR, general-purpose photometry

Name: Hamamatsu S2386-8K For visible to near IR, general-purpose photometry
Brand: MicroHello
SKU: Hamamatsu-S2386-8K-001
Price: 73 USD
Availability: InStock

SKU: Hamamatsu-S2386-8K-001

0.0 (0)

0 Sold

$73.00 ~~$140.00~~

- High sensitivity in visible to near infrared range
- Low dark current
- High reliability
- Superior linearity

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

Specifications

Photosensitive area	5.8 × 5.8 mm
Number of elements	1
Package	Metal
Package category	TO-8
Cooling	Non-cooled
Reverse voltage (max.)	30 V
Spectral response range	320 to 1100 nm
Peak sensitivity wavelength (typ.)	960 nm
Photosensitivity (typ.)	0.6 A/W
Dark current (max.)	50 pA
Rise time (typ.)	10 μs
Terminal capacitance (typ.)	4300 pF
Noise equivalent power (typ.)	2.1×10^-15 W/Hz^1/2
Measurement condition	Typ. Ta=25 ℃, Photosensitivity: λ=960 nm, Dark current: V_R=10 mV, Terminal capacitance: V_R=0 V, f=10 kHz, Noise equivalent power: V_R=0 V, λ=λp, unless otherwise noted
